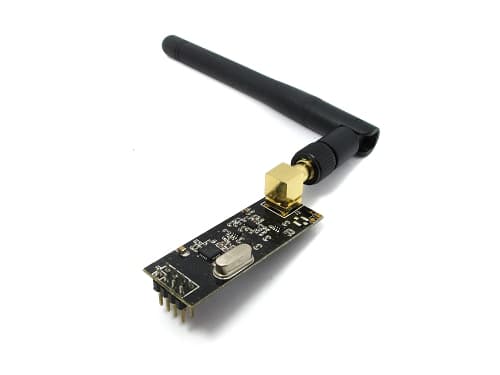

2.4G Wireless nRF24L01+ module with PA and LNA

  • Image 1
  • Image 2
  • Image 3
Price:
$22.95
SKU:
WRL24LNA
Current Stock:
10
Quantity:


Product Description

PLEASE NOTE THAT THIS IS NOT WIFI.

This is a long distance 2.4G wireless module based on the nRF24L01+ chip with a built-in Pre-Amp and Low Noise Amplifier.  The module comes with an RP-SMA connector and small external antenna which can allow distances of up to 800meters  line of sight communication.  More directional antennas allow for longer distances.

Specifications:

  • Voltage: 3-3.6V (recommended 3.3V) V
  • Maximum output power: +20dBm
  • Emission mode current(peak): 115mA
  • Receive Mode Current(peak): 45mA
  • Power-down mode current: 4.2uA
  • Sensitivity 2Mbps mode in received: -92dBm
  • Sensitivity 1Mbps mode in received: -95dBm
  • Sensitivity 250kbps mode in received: -104dBm
  • PA gain: 20dB
  • LNA gain: 10dB
  • LNA Noise figure: 2.6dBb
  • Antenna Gain (peak): 2dBi
  • 2MB rate (Open area): 520m
  • 1MB rate (Open area): 750m
  • 250Kb rate (Open area): 1000m

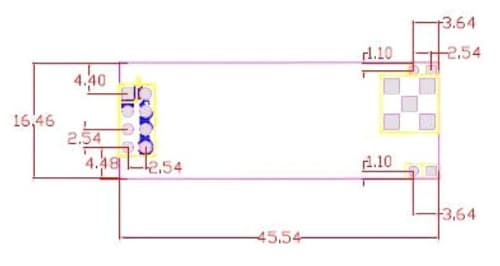

  • Size: 45.54mm * 16.46mm

Other Information:

Datasheet

Schematic

Arduino Playground

Tutorial
