LIDAR-Lite v3

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
$199.95
SKU:
SEN-14032
Current Stock:
3
Quantity:


Product Description

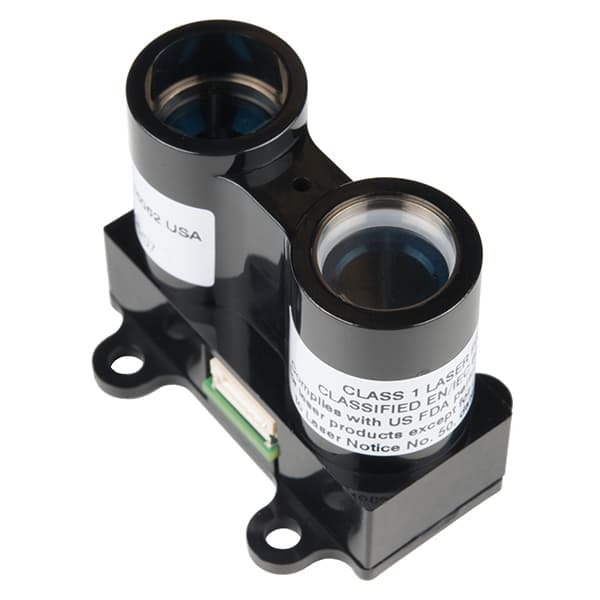

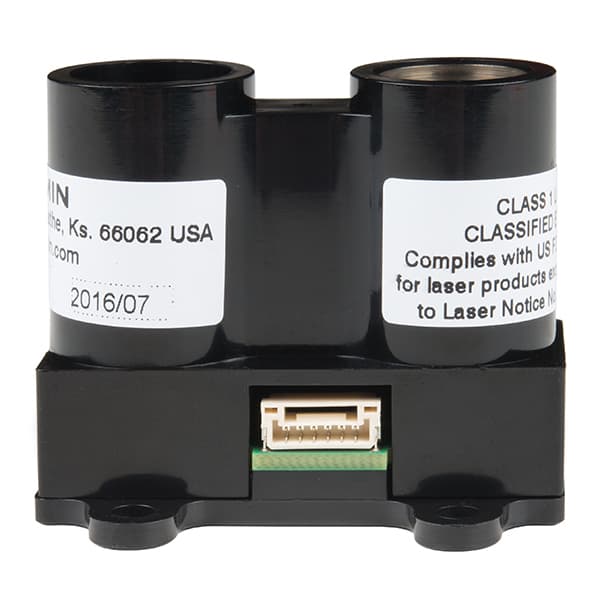

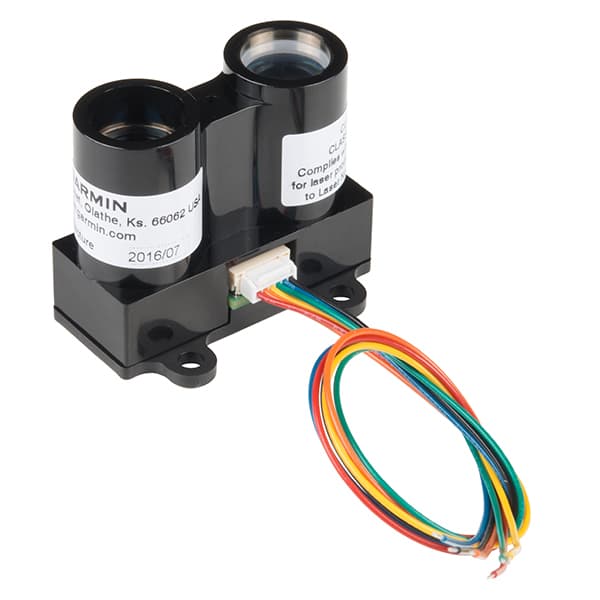

This is the LIDAR-Lite v3, a compact, high-performance optical distance measurement sensor from Garmin™. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications.

This easy-to-use 40-meter laser-based optical ranging sensor has all the core features that made the LIDAR-Lite v2 so popular. Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it’s user-configurable so you can adjust between accuracy, operating range and measurement time.

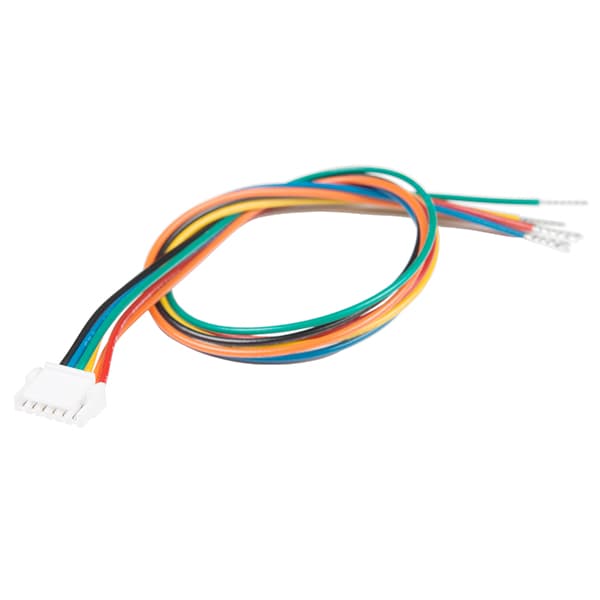

Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of <100mA at continuous operation. On top of everything else, the LIDAR-Lite is user-configurable, allowing adjustment between accuracy, operating range and measurement time. It can be interfaced via I2C or PWM with the included 200mm accessory cable.

Note: CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040, except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27, 2016.



Dimensions: 20 x 48 x 40 mm (0.8 x 1.9 x 1.6 inches)

Features:

  • Range: 0-40m Laser Emitter
  • Accuracy: +/- 2.5cm at distances greater than 1m
  • Power: 4.75–5V DC; 6V Max
  • Current Consumption: 105mA idle; 130mA continuous
  • Rep Rate: 1–500Hz
  • Laser Wave Length/Peak Power: 905nm/1.3 watts
  • Beam Divergence: 4m Radian x 2m Radian
  • Optical Aperture: 12.5mm
  • Interface: I2C or PWM

Document:
