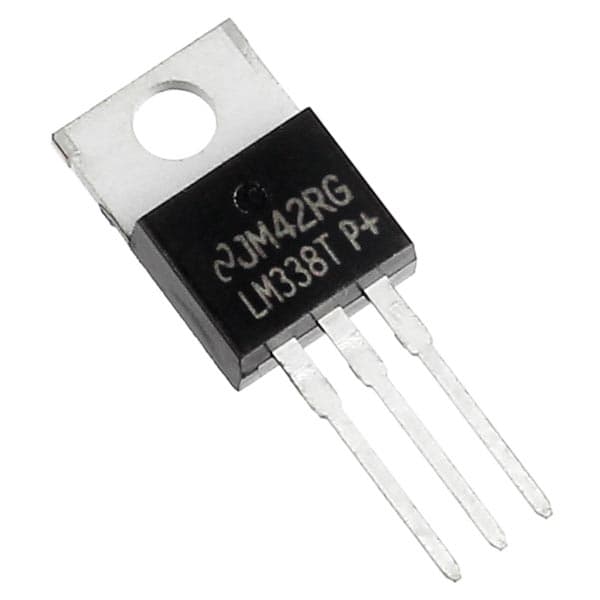

This adjustable 3-terminal positive voltage regulator is capable of supplying in excess of 5 A over a 1.2-V to 32-V output range. They are exceptionally easy to use and require only 2 resistors to set the output voltage.

Careful circuit design has resulted in outstanding load and line regulation, comparable to many commercial power supplies.

Applications

• Adjustable Power Supplies
• Constant Current Regulators
• Battery Chargers

Technical Details

Package: TO-220

Output Current Peak: 7 A

Nominal Output Current: 5 A

Adjustable Output Down to 1.2 V

Operating Temperature : 0 °C to 125 °C

Documents

Datasheet
