Op-Amp (Thru-Hole) LM358

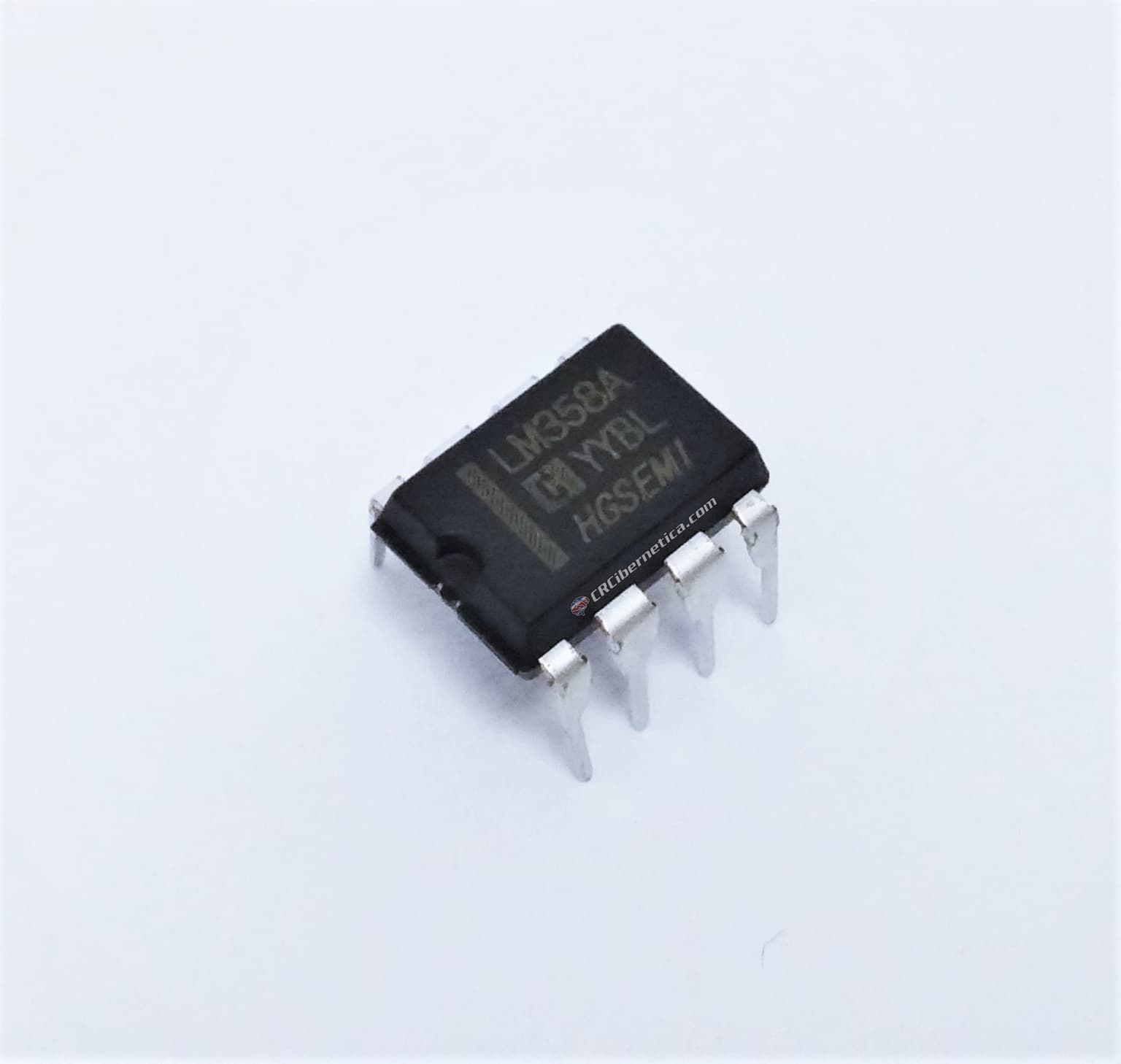

  • Image 1
Price:
$0.95
SKU:
COM-09456
Current Stock:
Out of stock



Product Description

The LM358 is a great, easy-to-use dual-channel opamp. Opamps have so many applications we figured we should probably carry at least one in a DIP package. LM358 applications include transducer amplifiers, DC gain blocks and all the conventional opamp circuits.

If you're looking for a good, standard opamp the LM358 should fill most of your needs. It can handle a supply of 3-32VDC and source up to 20mA per channel. This opamp is great if you need to operate two individual opamps from a single power supply. Comes in an 8-pin DIP package.

Features:

  • Two internally compensated op-amps
  • Internally frequency compensated for unity gain
  • Large DC voltage gain: 100 dB
  • Wide bandwidth (unity gain): 1 MHz (temperature compensated)
  • Wide power supply range:
    • Single supply: 3V to 32V
    • or dual supplies: 1.5V to 16V

Pinout:


Documents:
