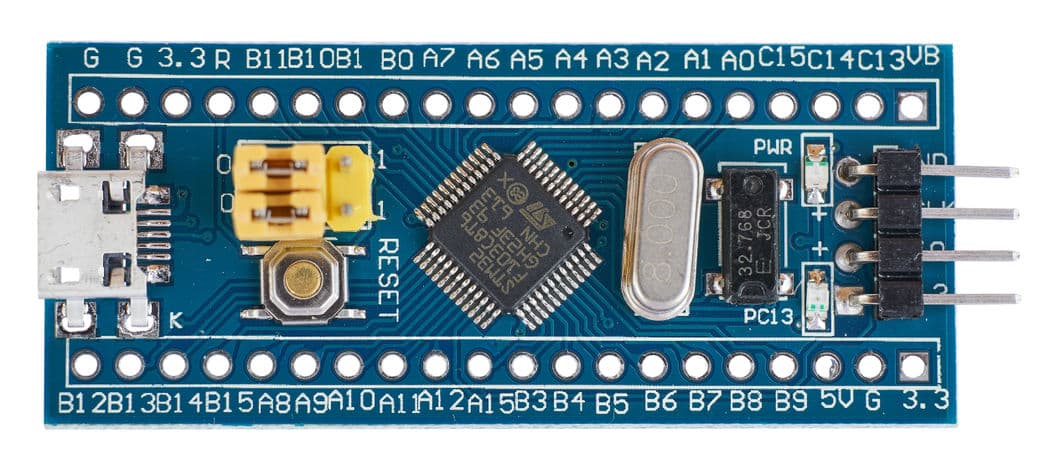

STM32F103C8T6 ARM STM32 (Blue Pill) microcontroller board

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$4.95
SKU:
DEV-CB02143
Current Stock:
17
Quantity:


Product Description

Blue pill is the nickname given to this very popular, inexpensive and compact STM32F103 board. The STM32 family microcontrollers are very popular in consumer products. This microcontroller can be programmed using the Arduino IDE, however, this using this microcontroller should be considered only for experts.

  • ARM Cortex M3 32 bit microcontroller
  • 72 MHz
  • 64 KB/128 KB Flash
  • 20 KB RAM
  • Reset button
  • LED on PIN PC13
  • 32 kHz Real time clock crystal
  • Jump links on Boot0 and Boot1
  • Micro USB connector for power and data
  • ST-Link header on the top of the board

 There are at least 4 different methods to flash the STM32. One method is to use use the ST-Link V2 programmer.

Getting Started with the Blue Pill for Arduino users.

A series of instructional videos regarding NuttX, a Real-Time Operating System. Many of the later videos use the "Blue Pill".
