Towerpro MG90D Metal Gear Mini Digital Servo 2.4kg / 0.08sec / 13g

  • Image 1
  • Image 2
Price:
$6.95
SKU:
MG-90D
Current Stock:
238
Quantity:


Product Description

A small lightweight servo that is an upgraded version of the stalwart Towerpro MG90S analogue servo but with more torque and greater speed. This little servo is perfect for aircraft, helicopters, mult-rotors, robots and other applications were you want a small, strong, fast servo. It is fitted with upgraded 6061-T6 aluminum gears and shafts and has a ballraced output.

The middle case is made of alloy which acts as a heatsink for the motor and electronics which enables them to keep cool when being worked hard. Supplied complete with a selection of 3 servo horns and mounting screws.

Features:
• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power

Specs:
Input Voltage: 4.8~6V
Operating Torque: 2.1kg@4.8V, 2.4kg@6V
Operating Speed: 0.10sec/60°@4.8V, 0.08sec/60°@6V
Normal Servo Travel: 90° (45° each way)
Case: Top & bottom plastic, alloy middle
Bearing: Double ball bearing
Gears: 6061-T6 aluminum
Deadband Width: 1us
Temperature Range: 0~55°C
Dimensions: 22.8 x 12.2 x 28.5mm
Weight: 13g
Output Splines: 25T (compatible with Futaba)
Servo Plug: JR type
Servo Lead Length: 250mm

Included:
1 x Towerpro MG90D Digital servo

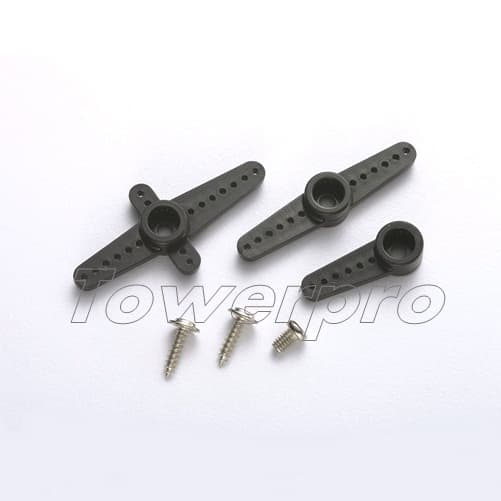

3 x Servo horn
1 x servo horn screw
2 x servo mounting screw
