MG90S Continuous Rotation Micro Servo

  • Image 1
  • Image 2
Price:
$7.95
SKU:
MG90D-360
Current Stock:
83
Quantity:


Product Description

New Digital 13g Metal gear, double ball bearing servo.
Excellent for Robotic, clockwise/counterclockwise rotation,alloy casing in the middle.

NOTE: This is a continuous rotation servo.

Adafruit Explanation of Continuous Servos

Specification:

Weight: 13g
Dimension: 22.8×12.2×28.5mm
Stall torque: 2.1kg/cm (4.8v) ; 2.4kg/cm (6.6V)
Operating speed: 0.6sec/60degree (4.8V); 0.48sec/60degree (6.0V)
Operating voltage: 4.8V~ 6.6V
Gear Type: Metal gear
Bearing: Double ball bearing
Temperature range: 0- 55℃
Dead band width: 1us
servo wire length: 25cm

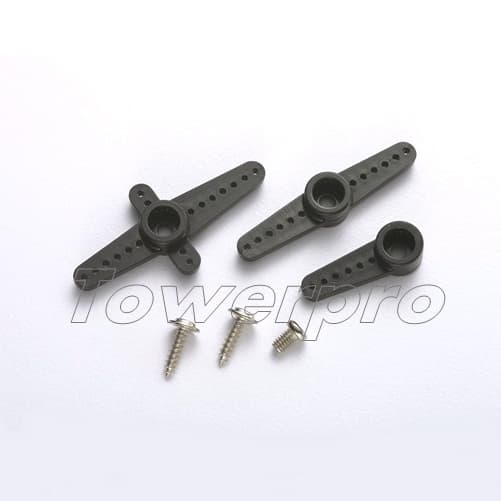

servo arms &screws included &fit with Futaba servo arm
Servo Plug: JR (Fits JR and Futaba)
It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
CE &RoHS approved
We have upgraded our servo gear set and shaft to aluminum 6061-T6.
It is stronger and lighter than copper.



Product Description



小馬達尺寸標示圖B

PRODUCT CONFIGURE TABLE

 Weight(g) 13
 Torque(kg)(4.8v)  2.1
 Speed(sec/60deg)  0.6
 A(mm)  32.5
 B(mm)  22.6
 C(mm)  28.5
 D(mm)  12
 E(mm)  31.5
 F(mm)  19.8
