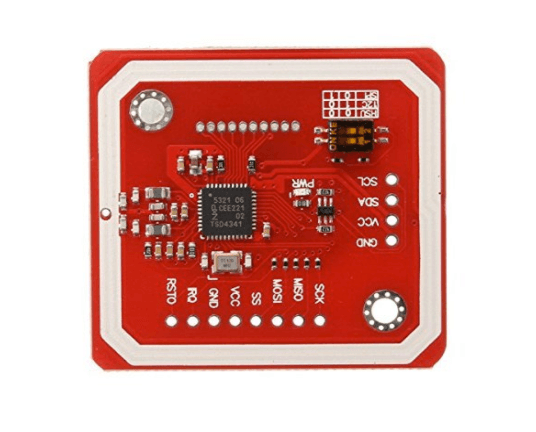

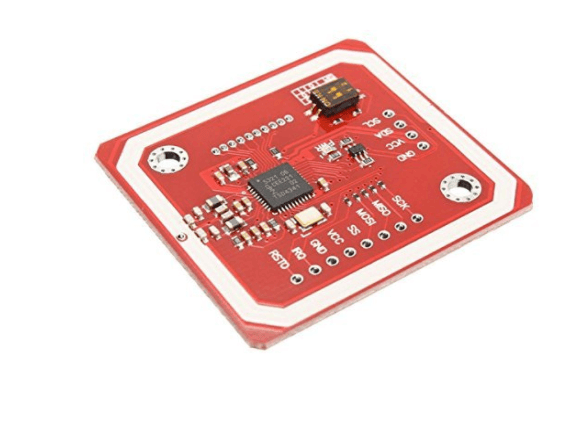

PN532 NFC RFID Module V3 Reader Writer Breakout Board

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Price:
$19.95
SKU:
RFID-CB0190
Current Stock:
42
Quantity:


Product Description

The PN532 is the most popular NFC chip, and is what is embedded in pretty much every phone or device that does NFC. It can pretty much do it all, such as read and write to tags and cards, communicate with phones (say for payment processing), and 'act' like a NFC tag. If you want to do any sort of embedded NFC work, this is the chip you'll want to use!

NFC (Near Field Communications) is a way for two devices very close to each other to communicate. Sort of like a very short range bluetooth that doesn't require authentication. It is an extension of RFID, so anything you can do with RFID you can do with NFC. You can do more stuff with NFC as well, such as communicate bi-directionally with cell phones

Because it can read and write tags, you can always just use this for RFID-tag projects. We carry a few different tags that work great with this chip. It can also work with any other NFC/RFID Type 1 thru 4 tag.

The PN532 is also very flexible, you can use TTL UART at various baud rates, I2C or SPI to communicate with it. This chip is also strongly supported by libnfc, simply plug in an FTDI cable and use the FTDI serial port device to communicate - this lets you do NFC dev using any Linux/Mac/Windows computer! We also include onboard power LED, 3.3V regulator and an FTDI header so you can plug in a Foca USB to Serial Converter and use with libnfc.

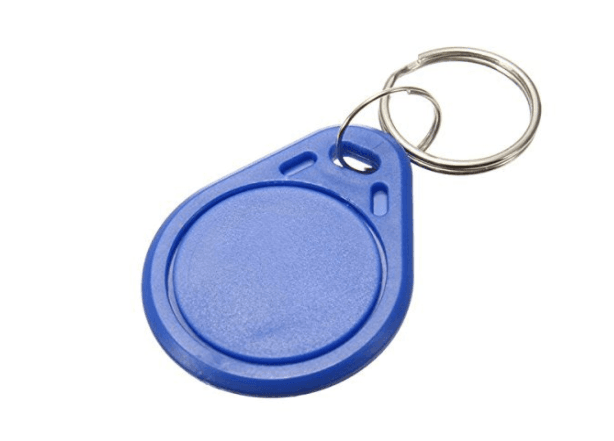

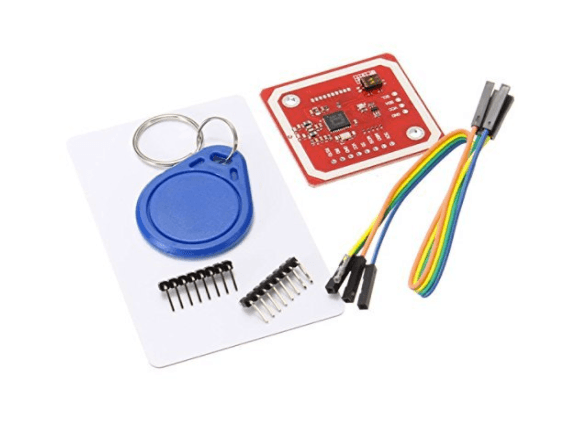

Comes with: the PN532 breakout board including a tuned 13.56MHz stripline antenna, 0.1" headers (not all are soldered), level shifter circuitry and 1 x 13.56MHz card and 1 x 13.56MHz key fob.

We recommend using the module in i2c mode and using the Adafruit PN532 Library that can be installed directly from the Arduino IDE. Just make sure to uncomment the lines for i2c in the example code and comment the IRQ and RESET to pins 2 and 3 respectively.

MODULE INSTRUCTIONS (PDF)


RFID reader/writer supports many types of 13.56MHz tags:

Mifare 1k, 4k, Ultralight, and DesFire cards
ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
Innovision Jewel cards such as IRT5001 card
FeliCa cards such as RCS_860 and RCS_854

SIZE: 43 x 40 mm
