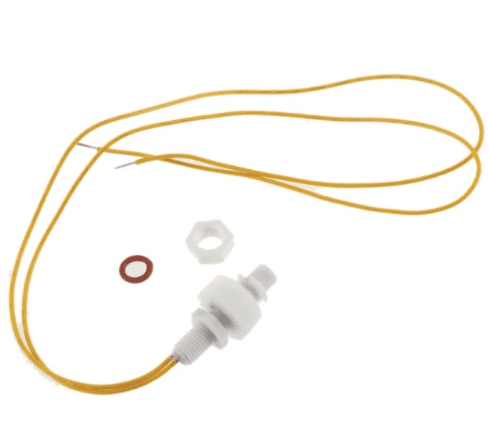

Water Level Float Sensor Switch

  • Image 1
Price:
$4.95
SKU:
COM-CB03094
Current Stock:
Out of stock



Product Description

 A float switch is a device used to sense the level of liquid within a tank.

  • The switch may actuate a pump, an indicator, an alarm or other device: because the current that the switch can carry is just 500mA, you must use a relay or contactor(not included).
  • It can be easily converted from normally open to normally close by inverting the float.
  • Due to product batch is different, cable color may be different, we will random shipment.



Specifications:



  • Contact capacity: 70W

  • Switching voltage: DC110V max

  • Switching Current: 0.5A

  • Insulation resistance:> 10

  • Operating Temperature: -10 ~ 60

  • Working pressure: <0.6MPA

  • Size:18*36 mm (D*H)

  • Cable length:370 mm



Tutorial with example code
