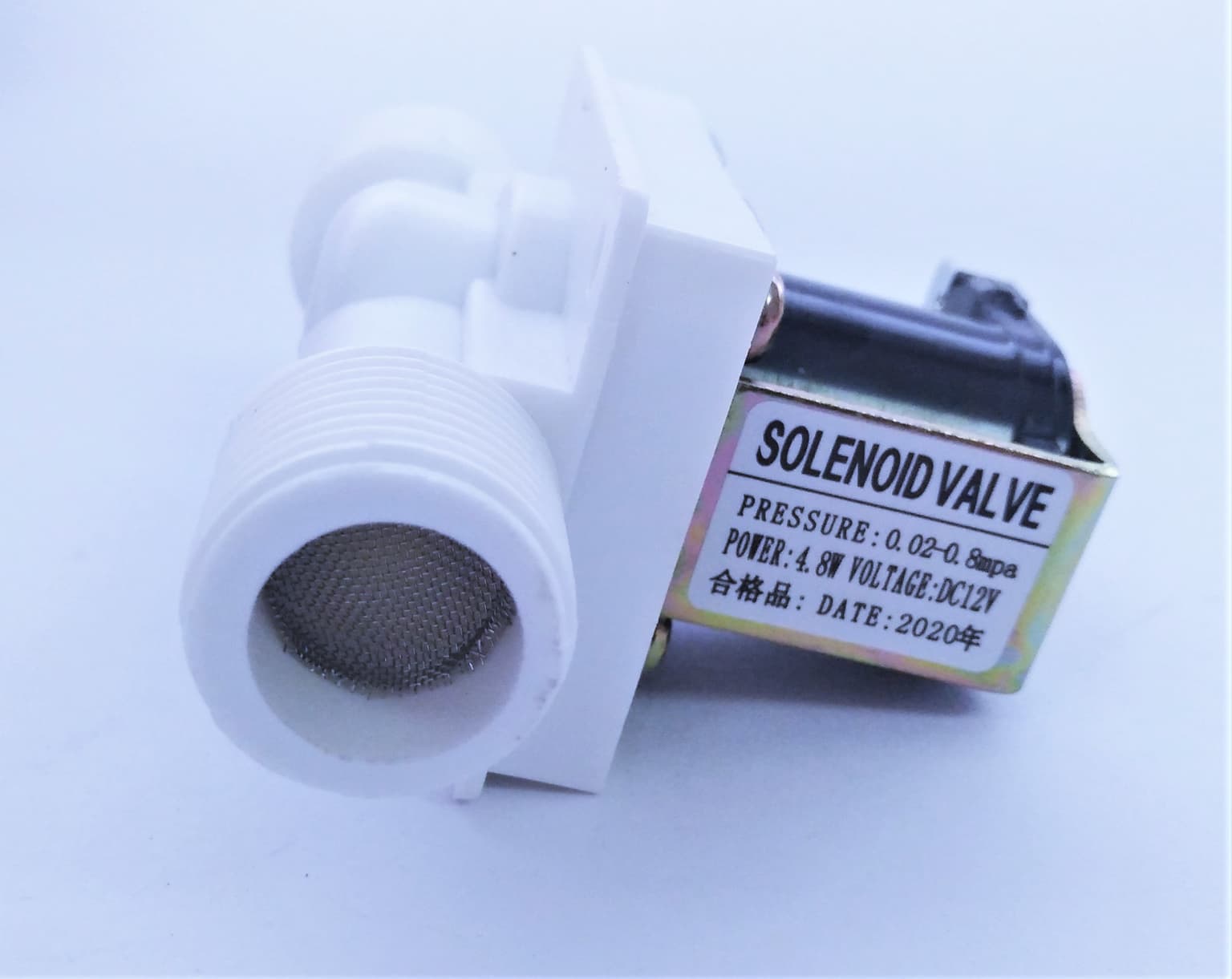

12V Solenoid Valve - 1/2"

  • Image 1
  • Image 2
  • Image 3
Price:
$11.95
SKU:
PRT-10456
Current Stock:
22
Quantity:


Product Description

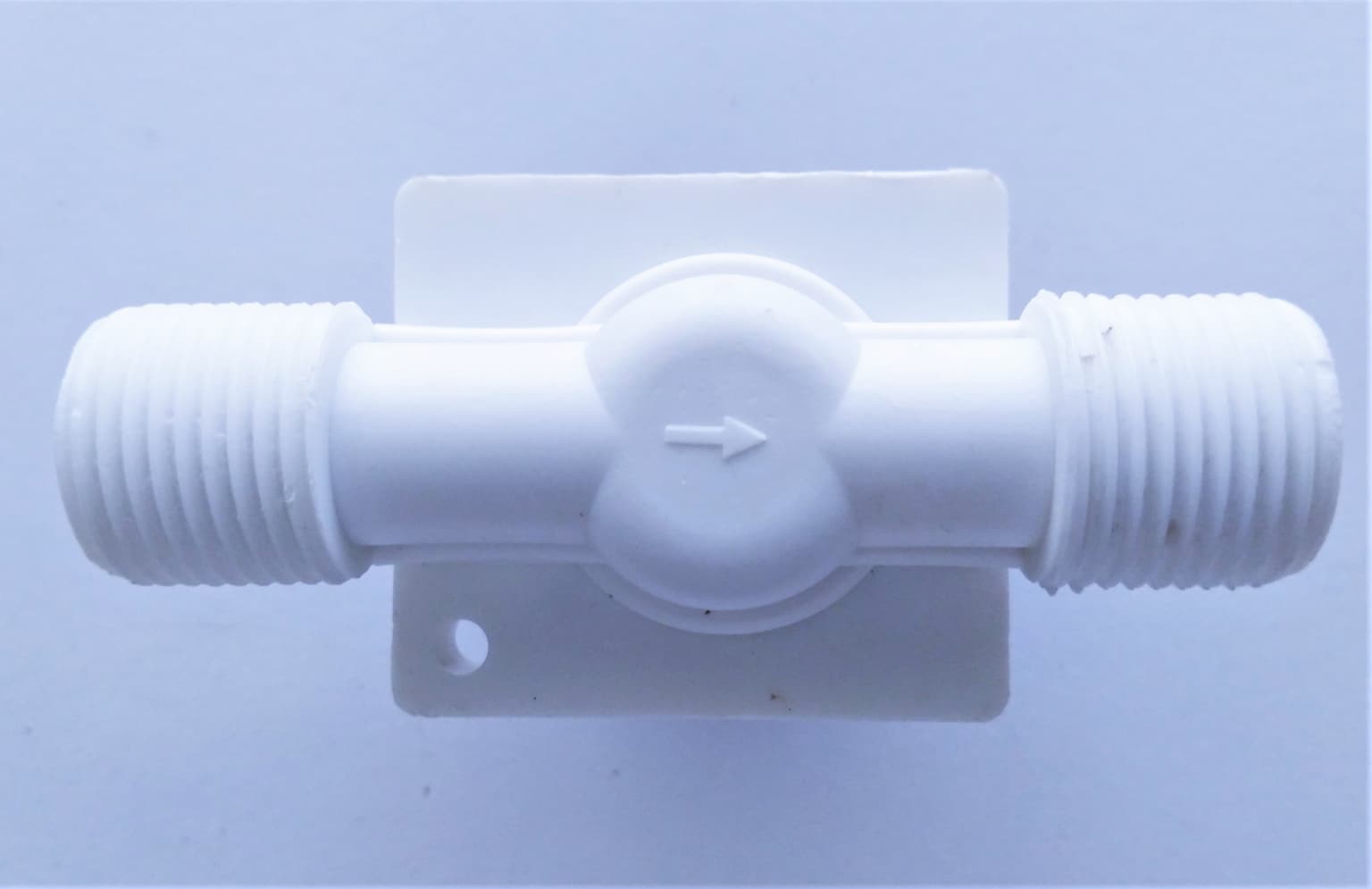

Control the flow of fluid using the flow of electrons! This liquid valve would make a great addition to your robotic gardening project. There are two 1/2" (Nominal non-taped National Pipe) outlets. Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can push through. The valve has a gasket arrangement inside, so there is a minimum pressure requirement of 0.02 Mpa (3 PSI). Also, liquid can only flow one direction.

Specifications

  • 1/2" Nominal NPS
  • Working Pressure: 0.02 Mpa - 0.8 Mpa
  • Working Temperature: 1 ℃ - 75 ℃
  • Response time (open): ≤ 0.15 sec
  • Response time (close): ≤ 0.3 sec
  • Actuating voltage: 12VDC (but we found it would work down to 6V)
  • Actuating life: ≥ 50 million cycles
  • Weight: 4.3 oz
  • Dimensions: 3.3" x 1.69" x 2.24"
