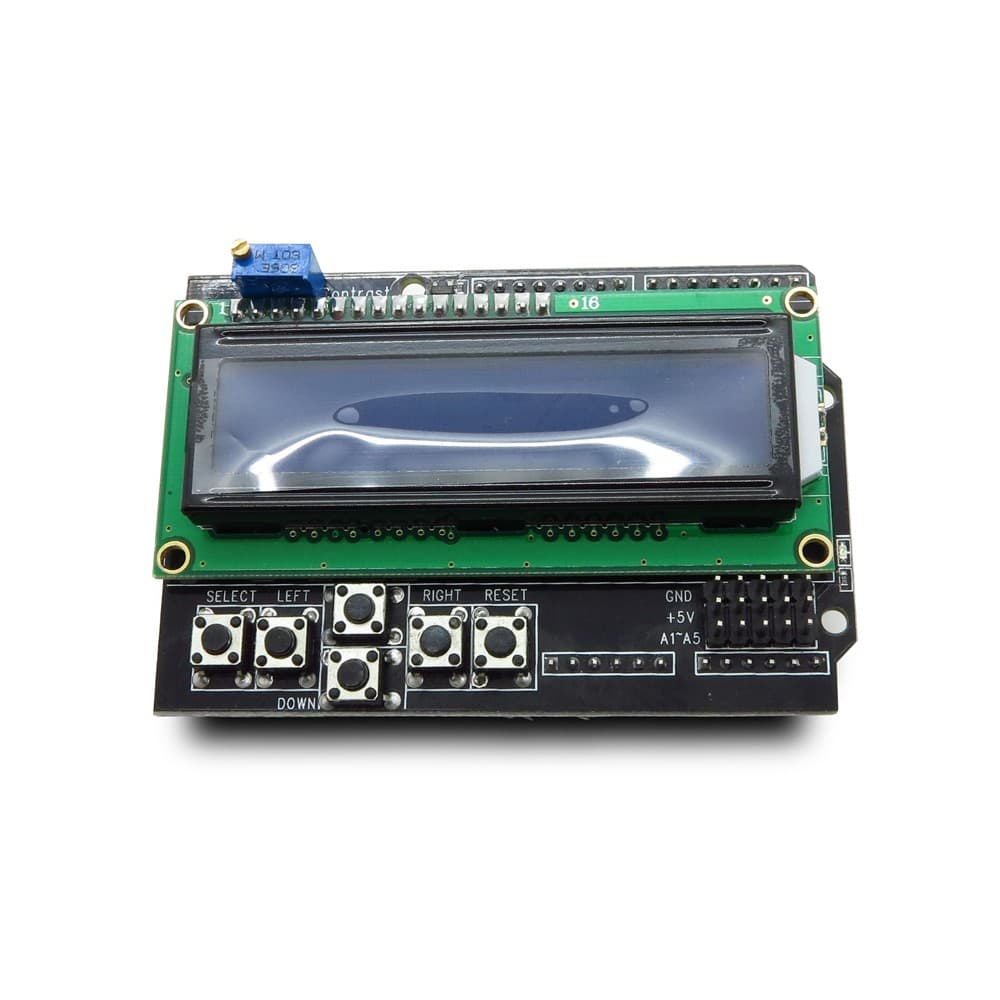

1602 LCD Keypad Shield for Arduino

  • Image 1
  • Image 2
Price:
$9.95
SKU:
LCD-CB1602HEAD
Quantity:


Product Description

This Arduino compatible shield offers a 16x2 character LCD screen with 5 navigation buttons built-in.  This shield uses the standard LiquidCrystal Library that comes with the Arduino IDE 1.0+

Features:

  • 16 x 2 character LCD display
  • Blue background with LED backlight
  • White LCD characters
  • Contrast control
  • 5 navigation buttons (SELECT, LEFT, RIGHT, UP, DOWN)
  • 1 Reset button
Pins used: A0 (for buttons), D4-D10

Note:  All the examples in the LiquidCrystal library work great.  Just change the following initialization line in the code:

LiquidCrystal lcd(8, 9, 4, 5, 6, 7);


Documents:
