20x4 LCD with i2c (Blue)

  • Image 1
  • Image 2
Current Stock:

Product Description

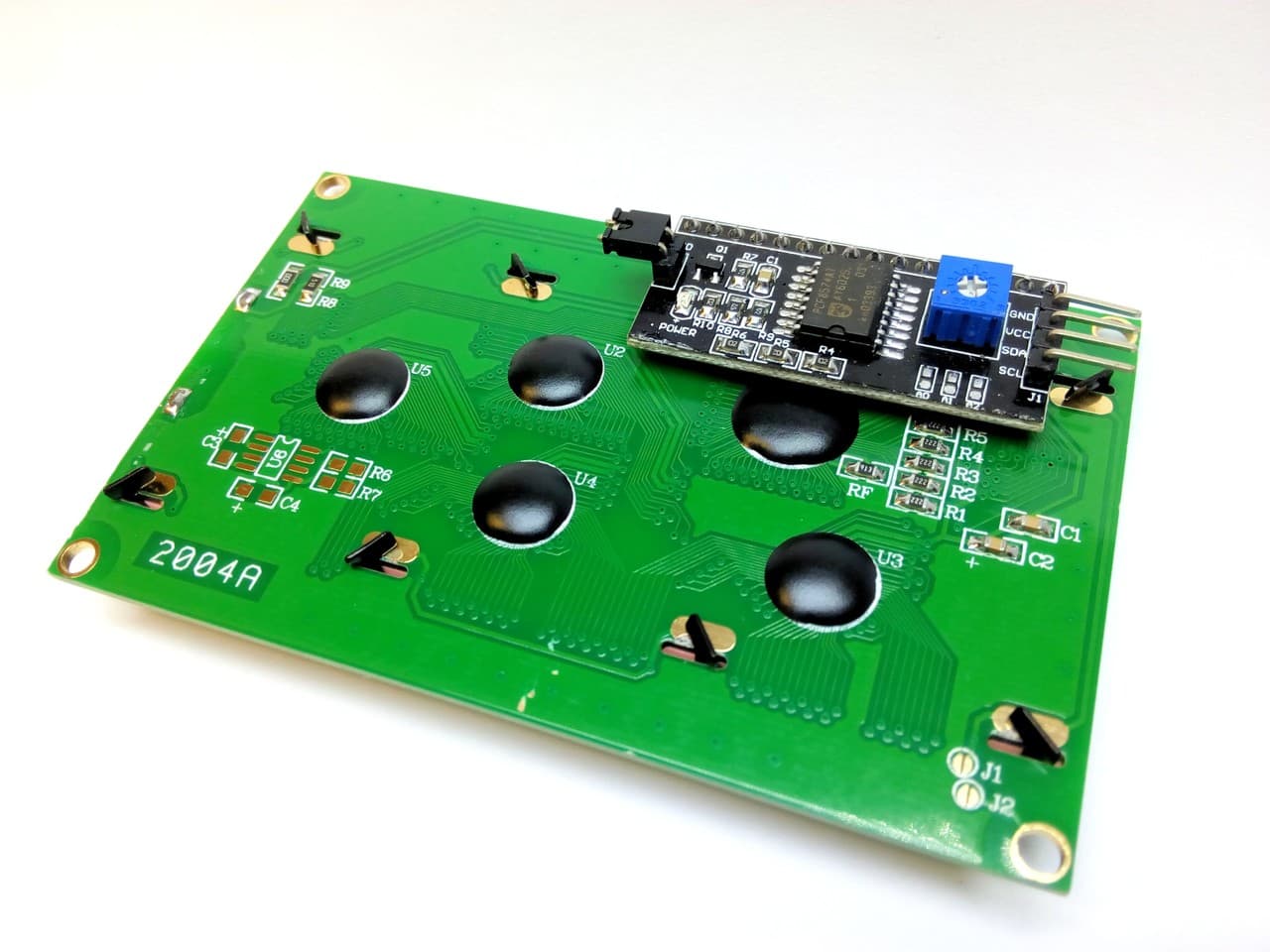

The IIC 2004 LCD display module is a 4 line 20 character LCD module with a manual contrast control knob, backlight and i2c communication interface.

The library that works with this display can be installed directly in the Arduino IDE Library Manager: LiquidCrystal I2C by Frank de Brabander.

Using the "HelloWorld" example sketch change the definition of the LCD to: LiquidCrystal_I2C lcd(0x27,20,4);

We find some batches that use this direction: LiquidCrystal_I2C lcd(0x3f,20,4);


If you have troubles with the I2C directions, please use the i2c_scanner to find the correct one in case that the factory change it again http://playground.arduino.cc/Main/I2cScanner


Supply voltage: 5V
Interface: I2C
I2C address: 0x27 or 0x3F
Pin definition: GND, VCC, SDA, SCL
Contrast adjust: potentiometer
White text, blue backlight
It is fantastic for based project
Screen size: 9.6cm x 4cm x 1cm
Mounting board size (including LCD): 9.8cm x 6cm x 2cm
