Product Overview
OV2640 is known as an evergreen image sensor from OmniVision. It features DVP friendly interface, powerful on-chip ISP with JPEG encoding, and low power consumption, which makes the OV2640 image sensor unique and popular for IoT camera applications at all times.
Specifications
- Array Size: 1600 x 1200 (UXGA)
- Power Supply
- Core: 1.3V DC ± 5%
- Analog: 2.5~3.0V DC
- I/O: 1.7V to 3.3V
- Power Consumption
- YUV mode full res & framerate: 125mW
- Compressed mode full Res & framerate: 140mW
- Standby:600μA
- Image Sensor Format: Type 1/4″
- Maximum Image Transfer Rate: 1600×1200@15fps, SVGA@30fps, CIF@60fps
- Sensitivity: 0.6V/Lux-sec
- S/N Ratio: 40dB
- Dynamic Range: 50dB
- Pixel Size: 2.2 x 2.2 μm
- Dark Current: 15mV/s at 60°C
- Output Format: YUV/RGB/Raw RGB Data
- Shutter Type: Rolling Shutter
- Color Filter Array: RGB Bayer Array
- ISP Functions: AE, AWB, Sharpness, Noise Reduction, Defect Reduction, Gamma, Color Saturation, Special Effects
Documents

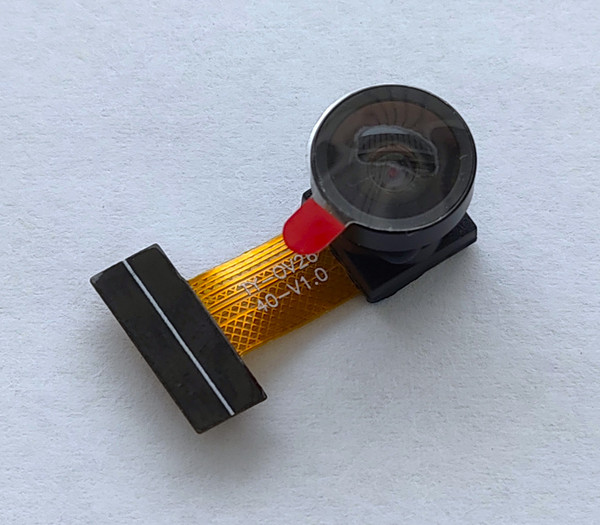

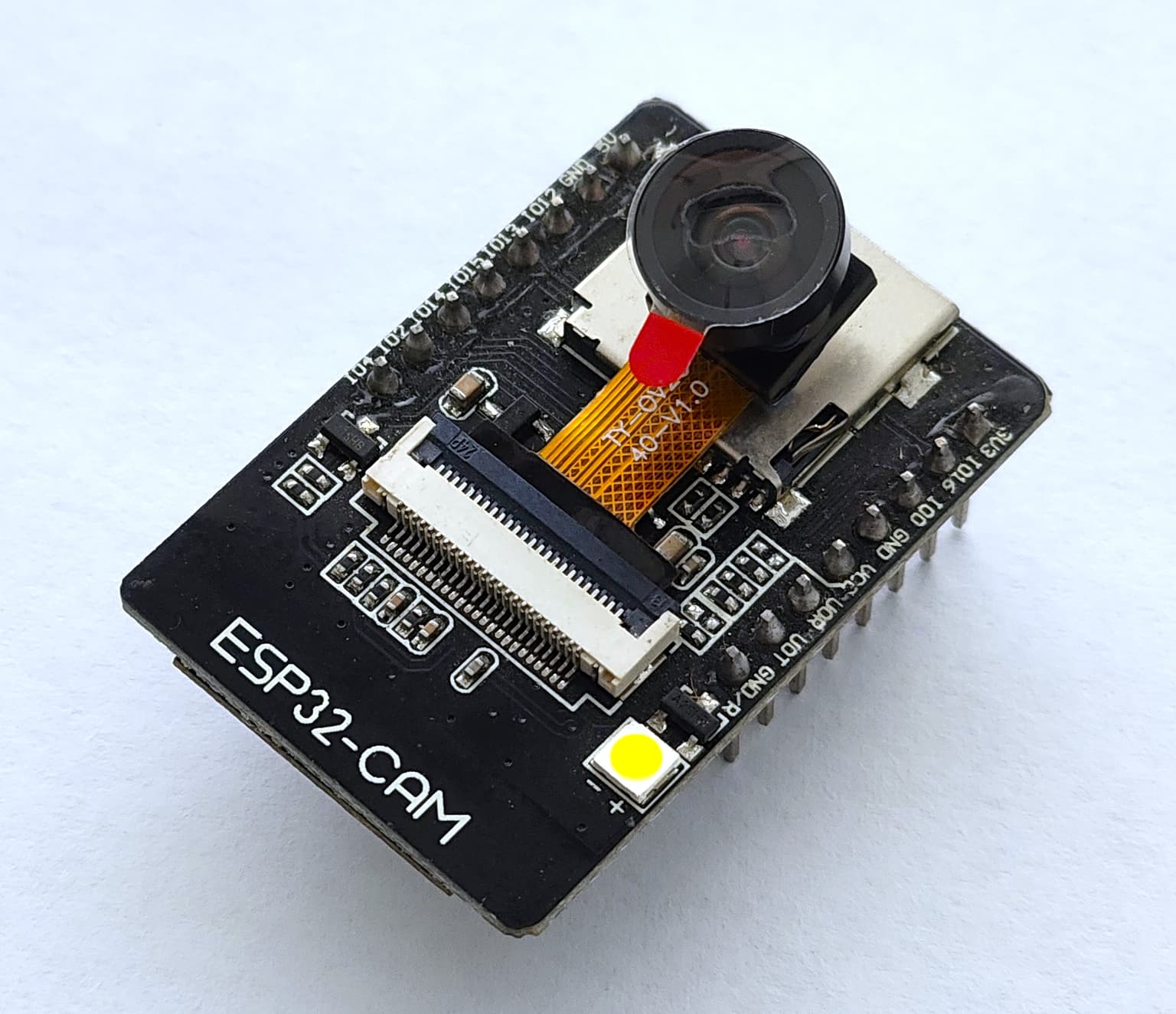

Include: 1 x 2MP OV2640 Camera(180°+IR)[ESP32 not included]
