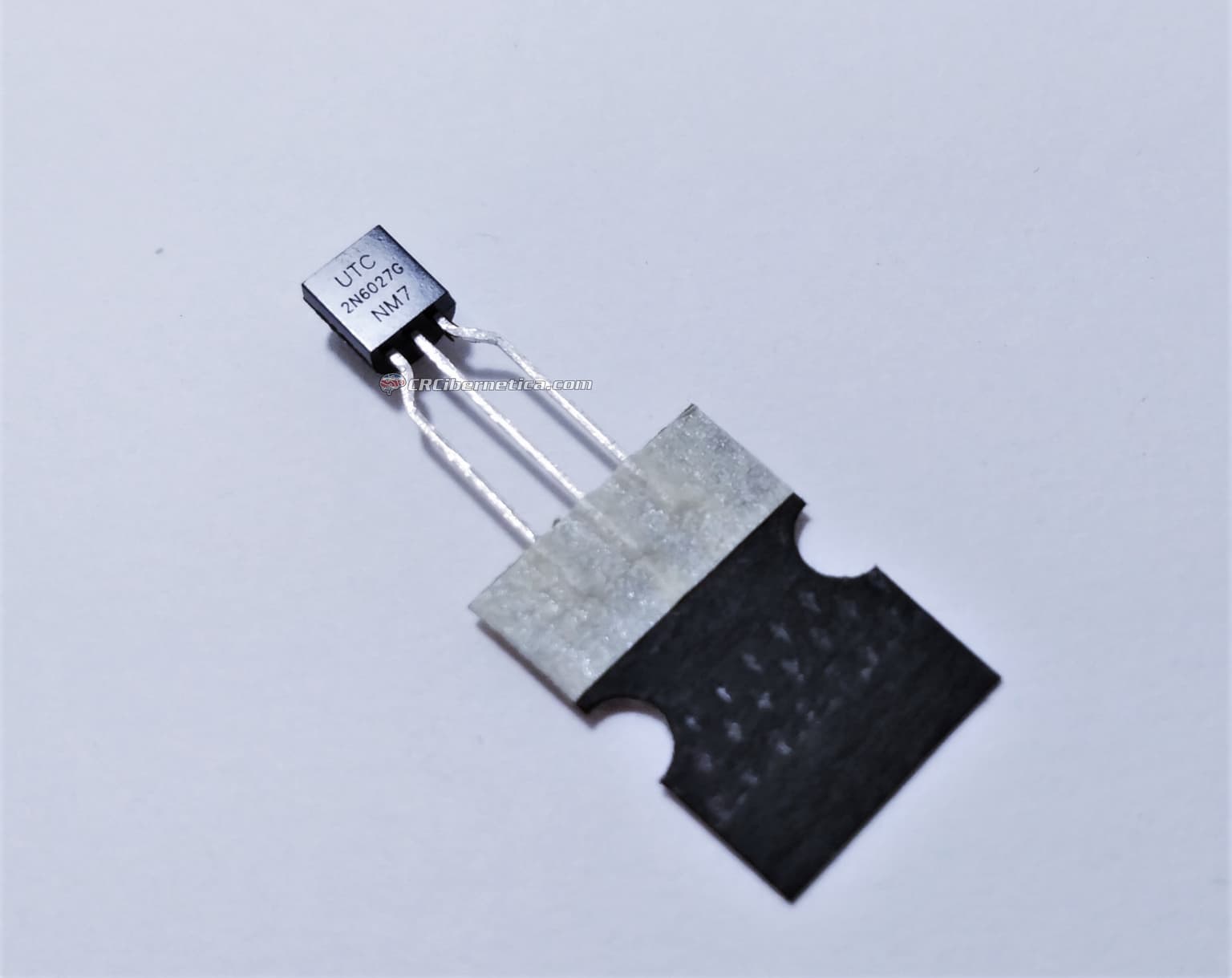

2N6027 UJT

  • Image 1
Price:
$1.50
SKU:
COM-CB6027
Current Stock:
300
Quantity:


Product Description

The UTC 2N6027 is a programmable unijunction transistor, it uses UTC’s advanced technology to provide customers with low forward voltage, low gate to anode leakage current, low offset voltage and high peak output voltage, etc. The UTC 2N6027 is suitable for timing, thyristor-trigger, oscillator and pulse circuits, etc.

Features

  • Low Forward Voltage
  • Low Offset Voltage
  • Low Gate to Anode Leakage Current
  • High Peak Output Voltage

Electrical Characteristics

  • Gate to Cathode Forward Voltage ( VGKF ): 40V
  • Gate to Cathode Reverse Voltage ( VGKR ): -5V
  • Gate to Anode Reverse Voltage ( VGAR ): 40V
  • DC Forward Anode Current ( IT ): 150mA
  • DC Gate Current ( IG ): +-50mA
  • Operating Junction Temperature Range ( TJ ): –50 ~ +100 °C

Pinout

Documents

Datasheet
