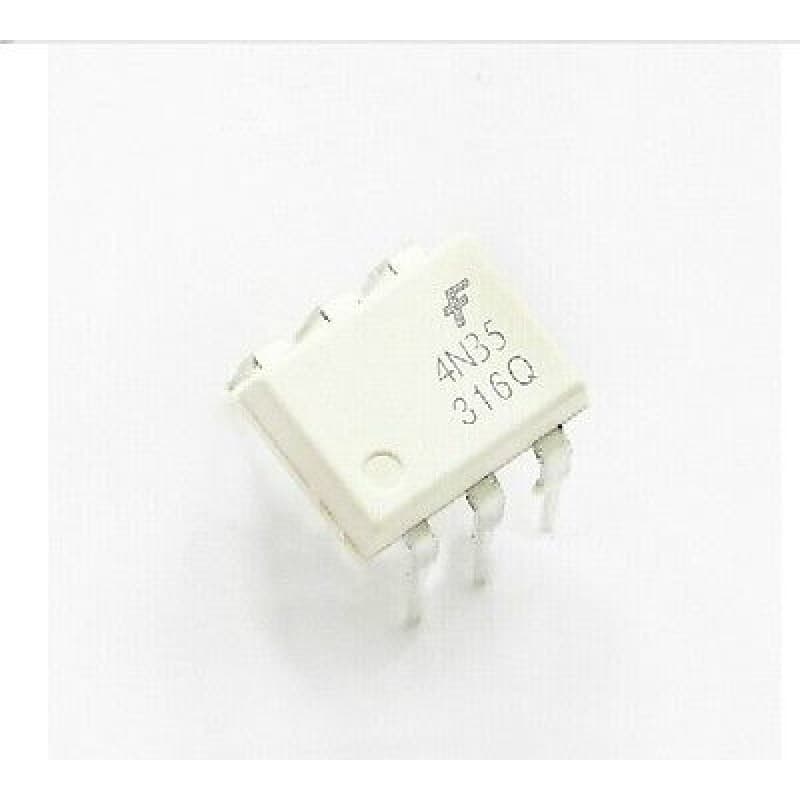

4N35 DIP-6 Optocoupler

  • Image 1
  • Image 2
Price:
$0.95
SKU:
COM-CB0309-50
Current Stock:
22
Quantity:


Product Description

Each optocoupler consists of an infrared LED and a NPN phototransistor integrated in the same DIP-6 package.

Features:

  • Isolation test voltage 5000 VRMS
  • Interfaces with common logic families
  • Industry standard dual-in-line 6 pin package

Applications:

  • Electrical isolation
  • AC mains detection
  • Relay driving
  • Switch mode power supply feedback
  • Logic ground isolation
  • Logic coupling with high frequency noise rejection

Pinout:


Dimensions (mm):


Datasheet
