Product Overview

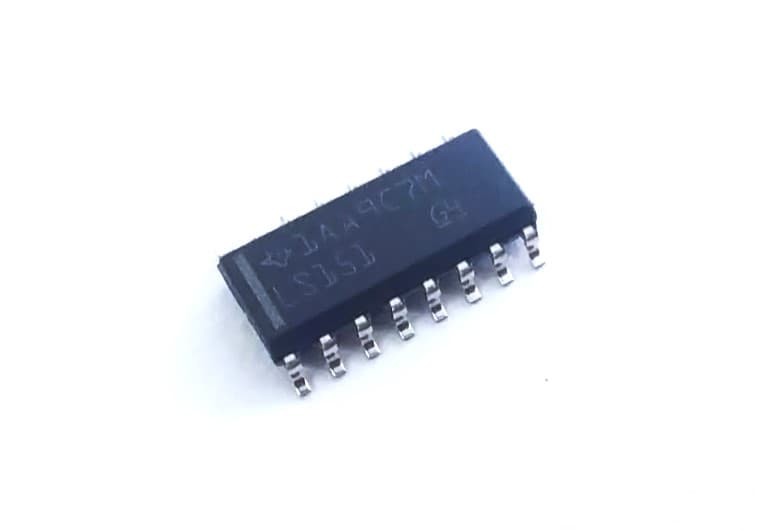

These devices contain 1 Multiplexer 8x1 in a SOP-16 package.
Electrical Characteristics
- Supply voltage (VCC): 5 V
- High Level Input Voltage (VIH): 2 V
- High Level Input Current (IIH): 40 uA
- Low Level Input Voltage (VIL): 0.8 V
- Low Level Input Current (IIL): -1.6 mA
- High Level Output Voltage (VOH): 3.5 V
- High Level Output Current (IOH): -0.8 mA
- Low Level Output Voltage (VOL): 0.35 V
- Low Level Output Current (IOL): 16 mA
- Operating free-air temperature: 70°C (max)
Pinout
Truth table
