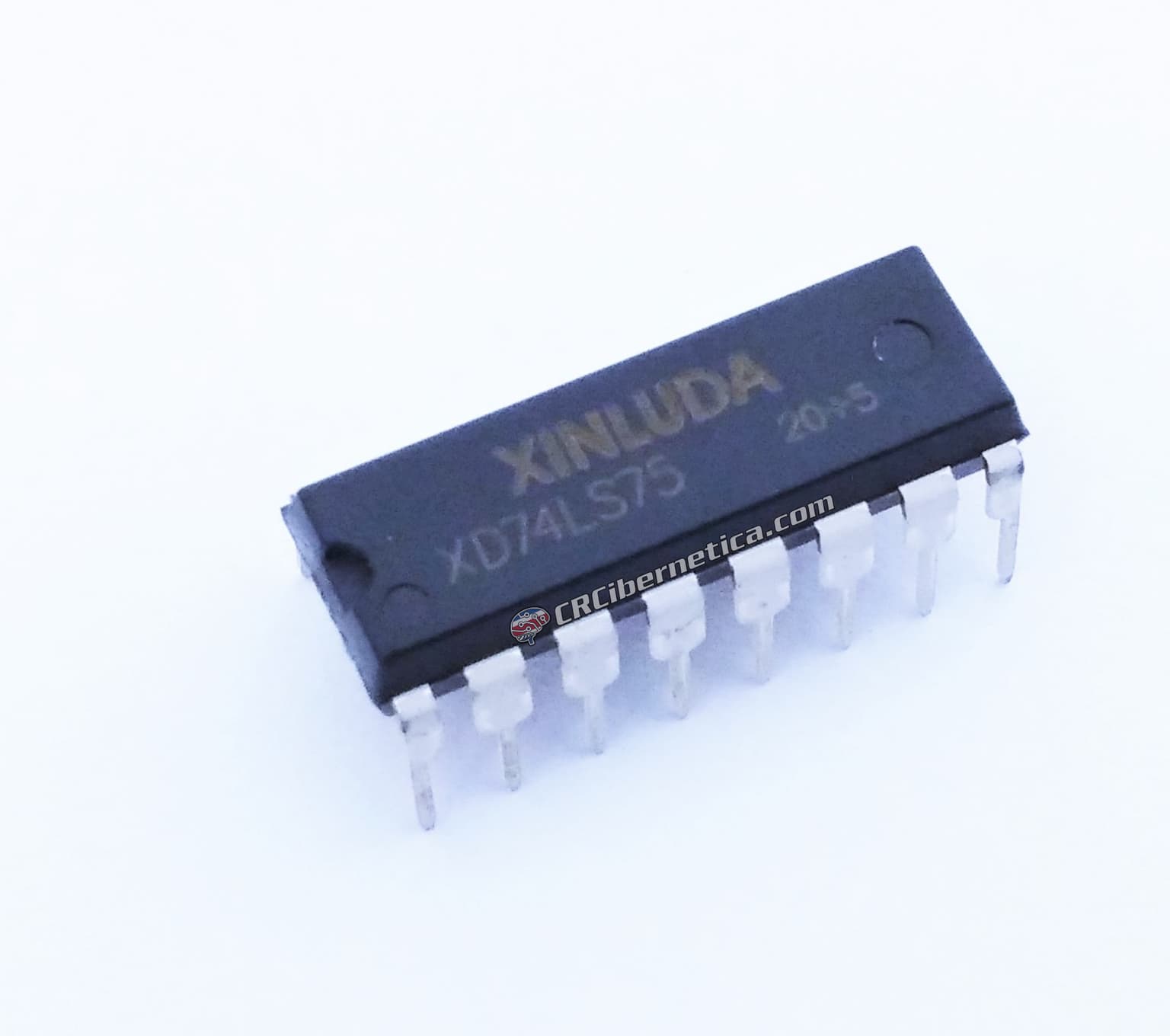

74LS75 4-bit Bi-stable Latch

  • Image 1
Price:
$1.50
SKU:
COM-CB74LS75
Current Stock:
300
Quantity:


Product Description

These latches are ideally suited for use as temporary storage for binary information between processing units and IO or indicator units, comes in a DIP-16 through hole package.

Electrical Characteristics

  • Supply voltage (VCC): 5 V
  • High Level Input Voltage (VIH): 2 V
  • High Level Input Current (IIH): 80 uA
  • Low Level Input Voltage (VIL): 0.8 V
  • Low Level Input Current (IIL): -3.2 mA
  • High Level Output Voltage (VOH): 3.4 V
  • High Level Output Current (IOH): -0.4 mA
  • Low Level Output Voltage (VOL): 0.4 V
  • Low Level Output Current (IOL): 16 mA
  • Operating free-air temperature: 70°C (max)

Pinout


Truth table
