Adafruit Rotary Navigation Encoder

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Price:
$14.95
SKU:
COM-CB5001
Current Stock:
9
Quantity:


Product Description

The rotary encoder wheel is a funky user interface element is reminiscent of the original clicking scroll wheel interface on the first iPods.

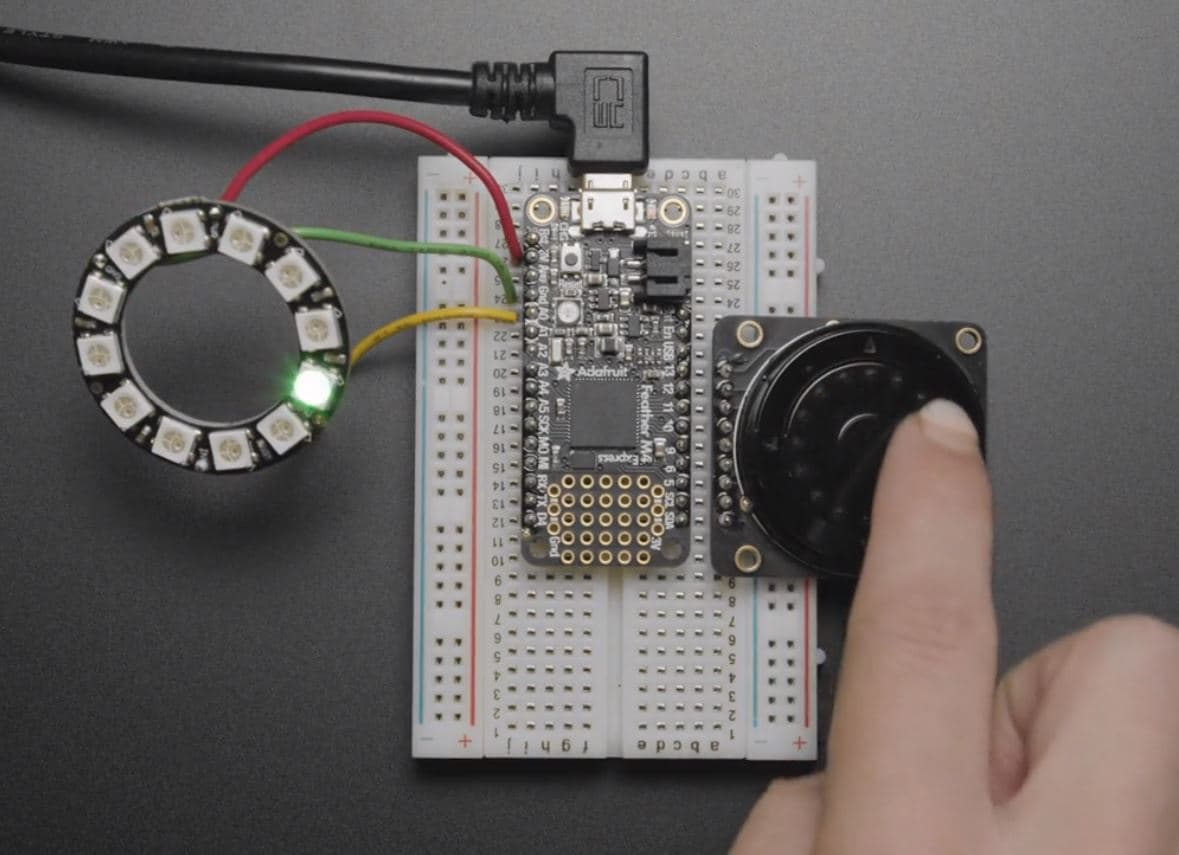

Use your microcontroller's button and rotary encoder library/hardware support to interface with the pins.

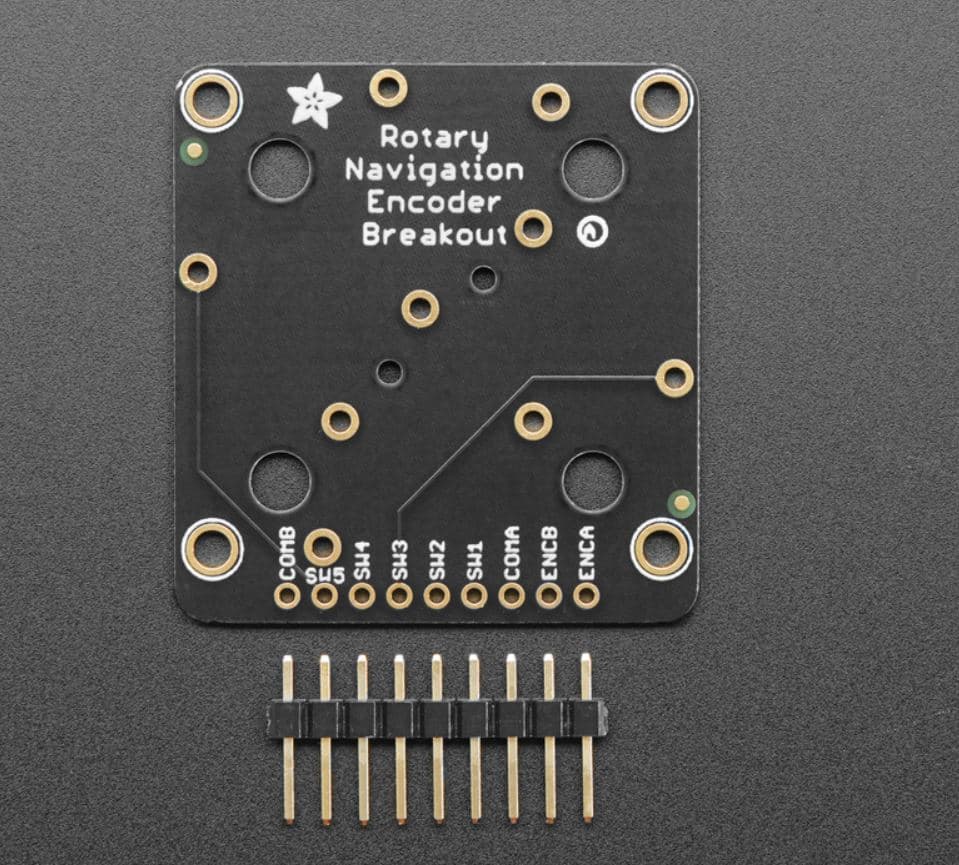

You'll need 7 GPIO total: 5 buttons and 2 rotary encoder pins. There are also two COMmon pins, which you can set to ground or VCC - usually ground so that you can use the microcontroller internal pull-ups for the button/encoders. Note to make our wiring simple, our example code uses GPIO to the COM's and then sets them to outputs, but you can just wire them directly.

Technical Details

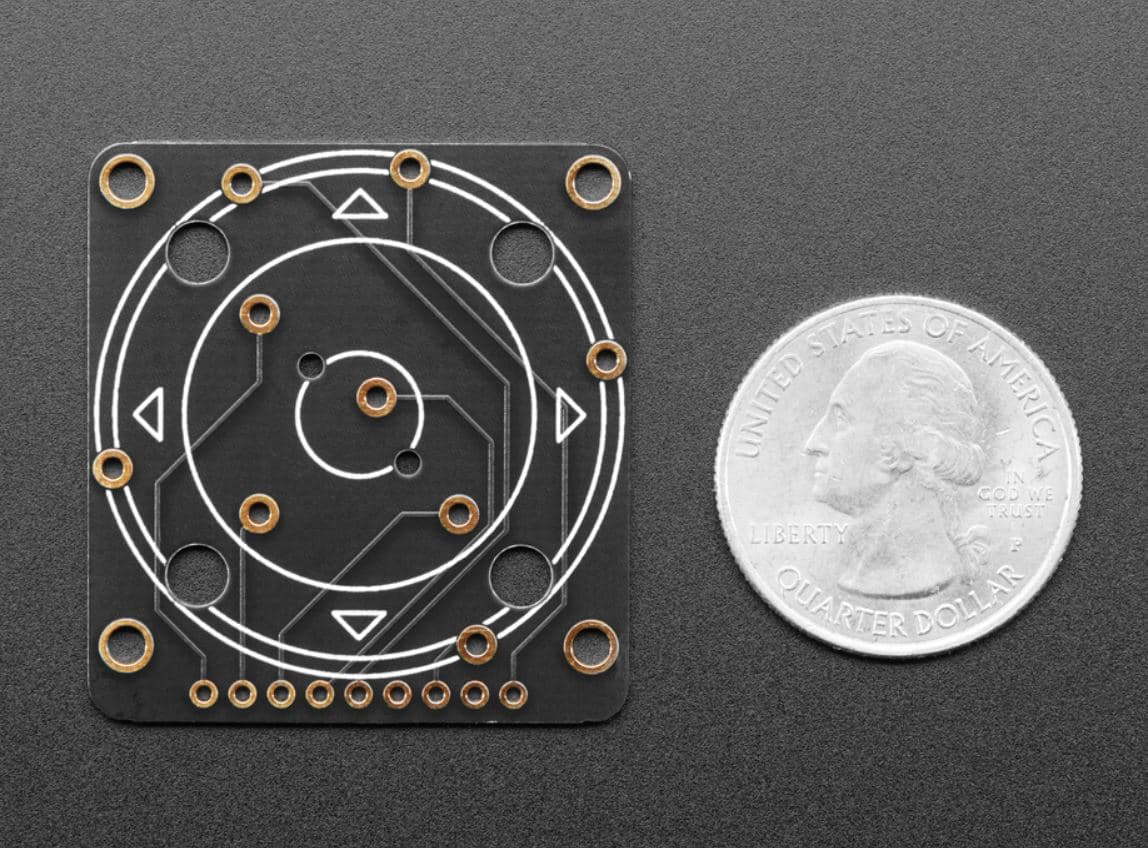

  • Product PCB Dimensions: 38.0mm x 35.6mm x 1.6mm / 1.5" x 1.4" x 0.1"

Include:

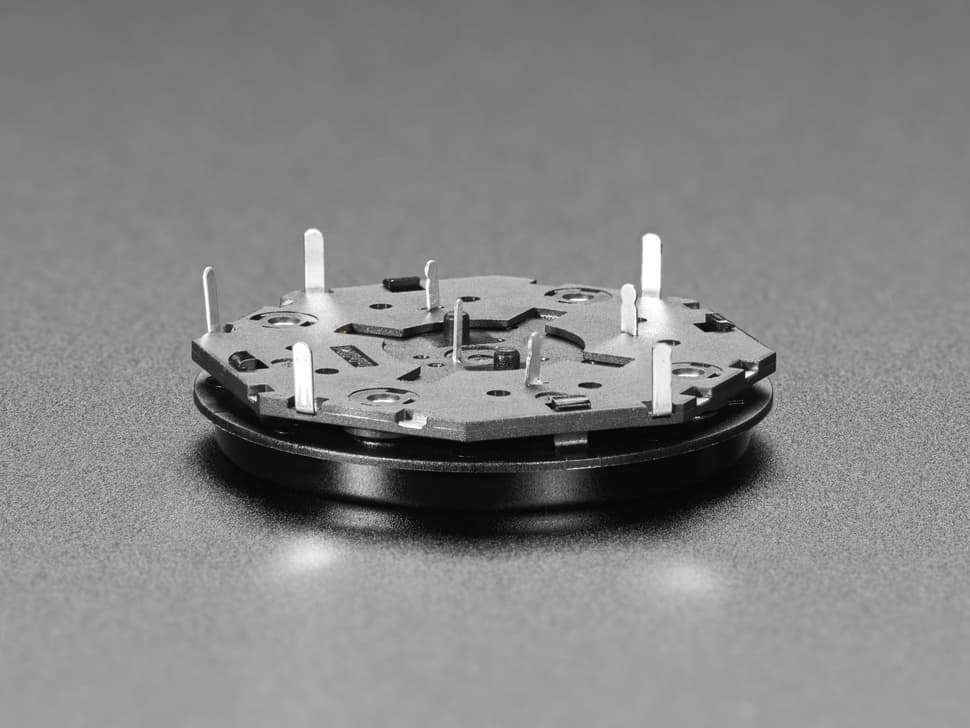

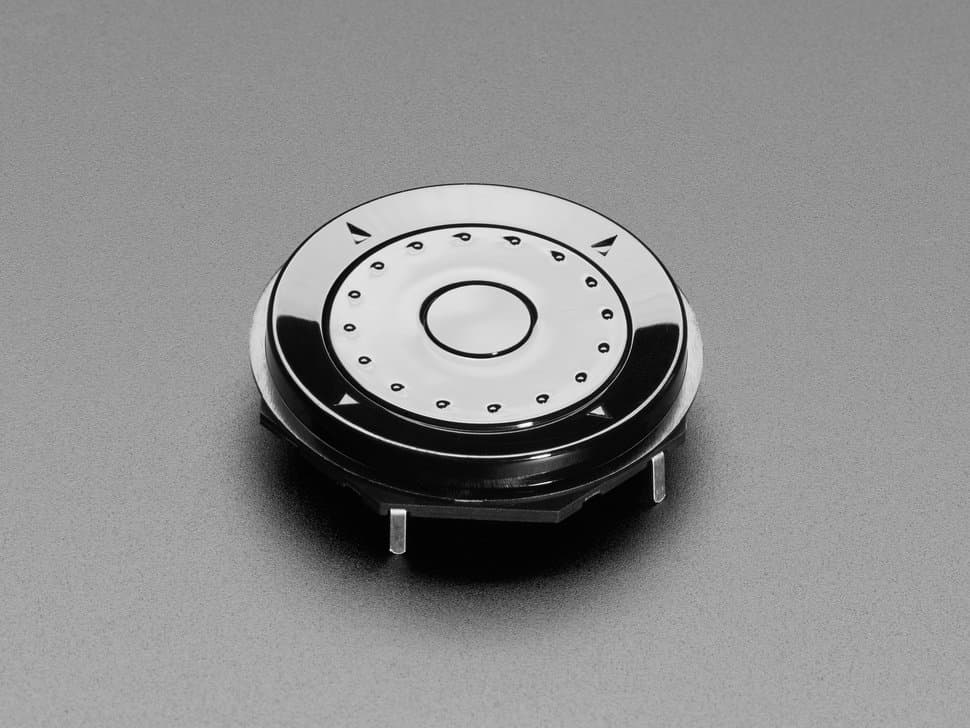

  • 1x Rotary Encoder

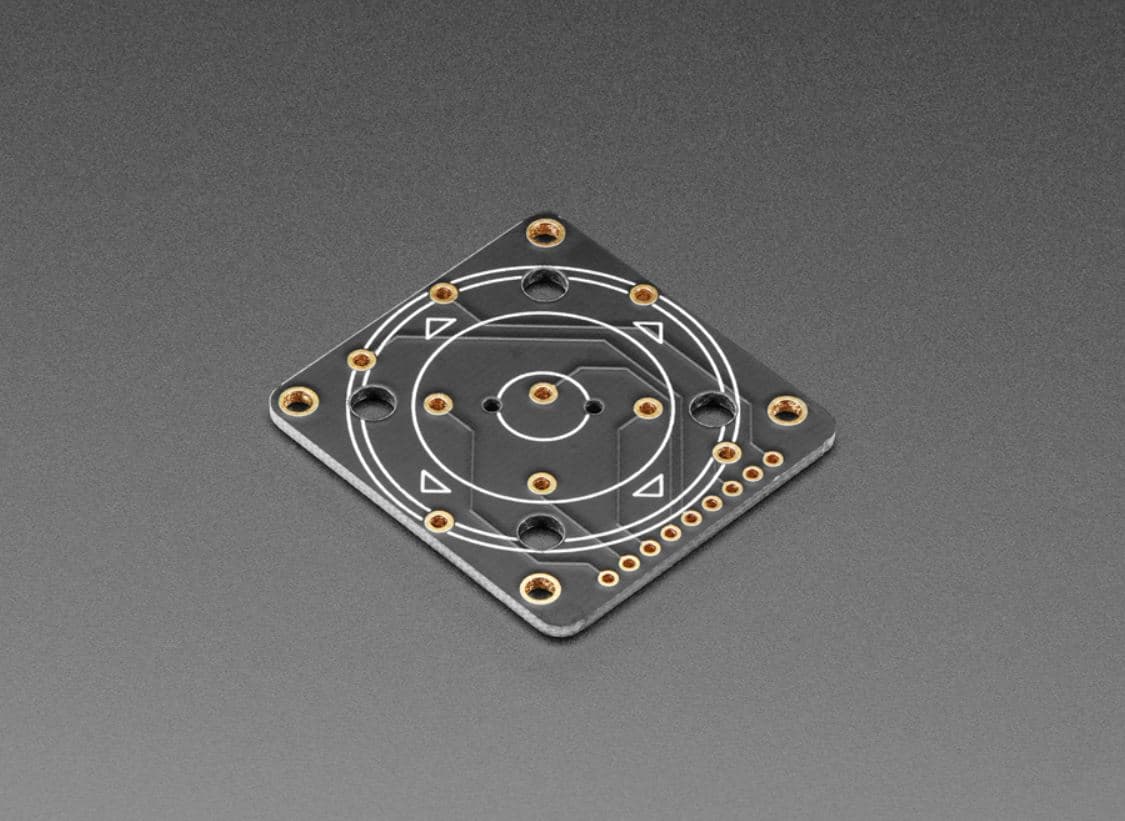

  • 1x PCB breakout
  • 1x Row of Male pin header

Documentation

Directional Navigation and Scroll Wheel Rotary Encoder and Breakout Guide
