Product Overview

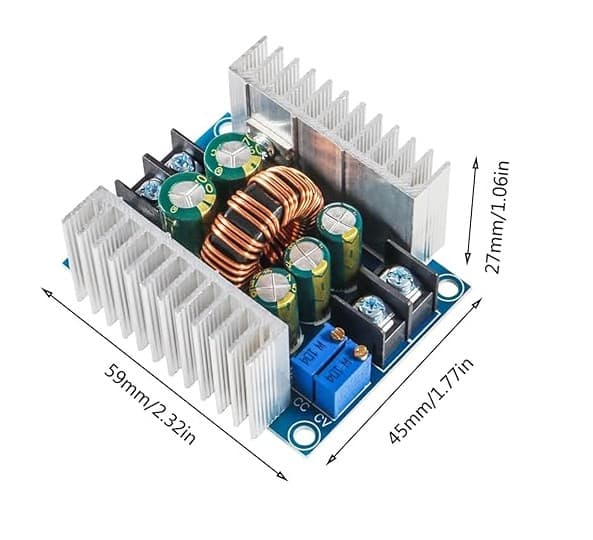

This DC-DC buck converter module provides an efficient and adjustable solution for stepping down voltage while supporting both constant voltage (CV) and constant current (CC) operation. With a wide input voltage range from 6V to 40V, the module allows precise adjustment of output voltage and current, delivering up to 300W of power and a maximum current of 20A (15A recommended). Designed for high performance, it features dual 75V/80A MOSFETs, high-frequency low-resistance capacitors for stable output with low ripple, and large 30A screw terminals for secure wiring. The integrated dual heat sinks enhance heat dissipation, ensuring reliable operation in high-power applications.
Specifications
- Type: DC-DC Buck (Step-Down) Converter
- Input Voltage: 6V – 40V DC (10V – 40V recommended)
- Output Voltage: 1.2V – 35V DC adjustable
- Maximum Output Current: 20A
- Recommended Output Current: 15A
- Maximum Output Power: 300W
- Efficiency: Up to 95–96% (24V to 12V at 20A)
- Output Ripple: ≤ 50 mV
- Regulation Modes: Constant Voltage (CV) and Constant Current (CC)
- MOSFETs: Dual 75V / 80A high-current MOSFETs
- Cooling: Dual heat sinks for improved heat dissipation
- Connection Type: 30A high-current screw terminals
- Short Circuit Protection: Self-recovery (not recommended for prolonged short circuits)

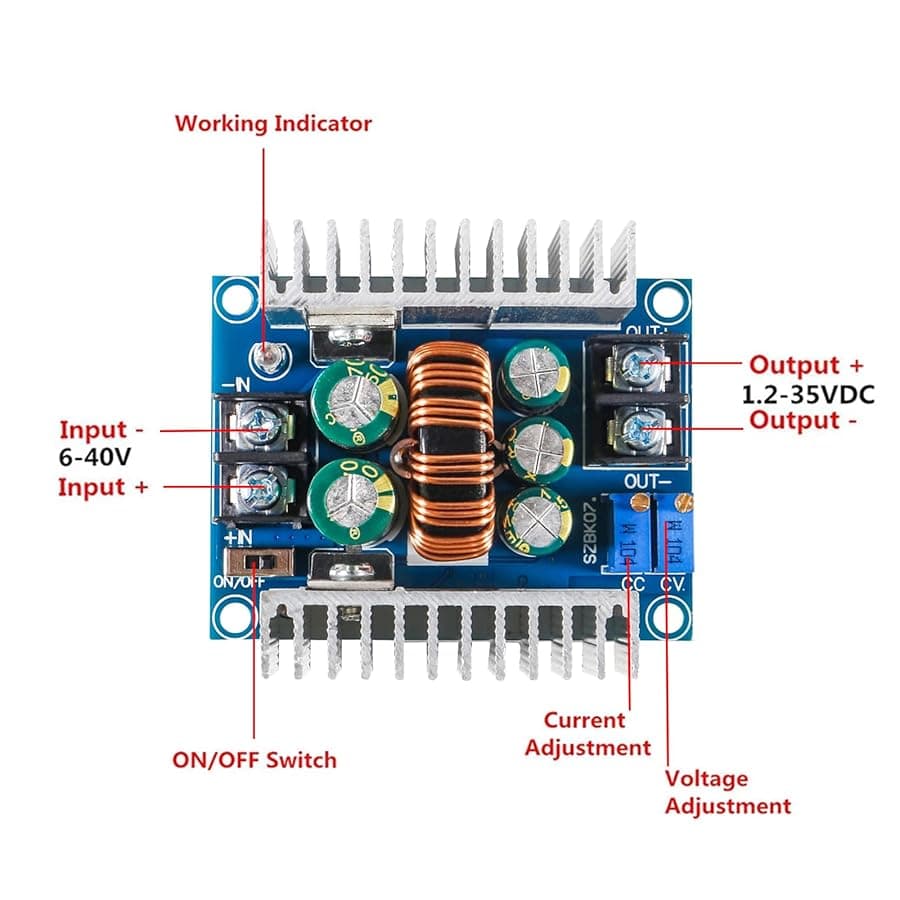

Control Interface
- +IN: Input positive
- -IN: Input negative
- OUT+: Output positive
- OUT-: Output negative
- CV: Output voltage adjustment
- CC: Output current adjustment
