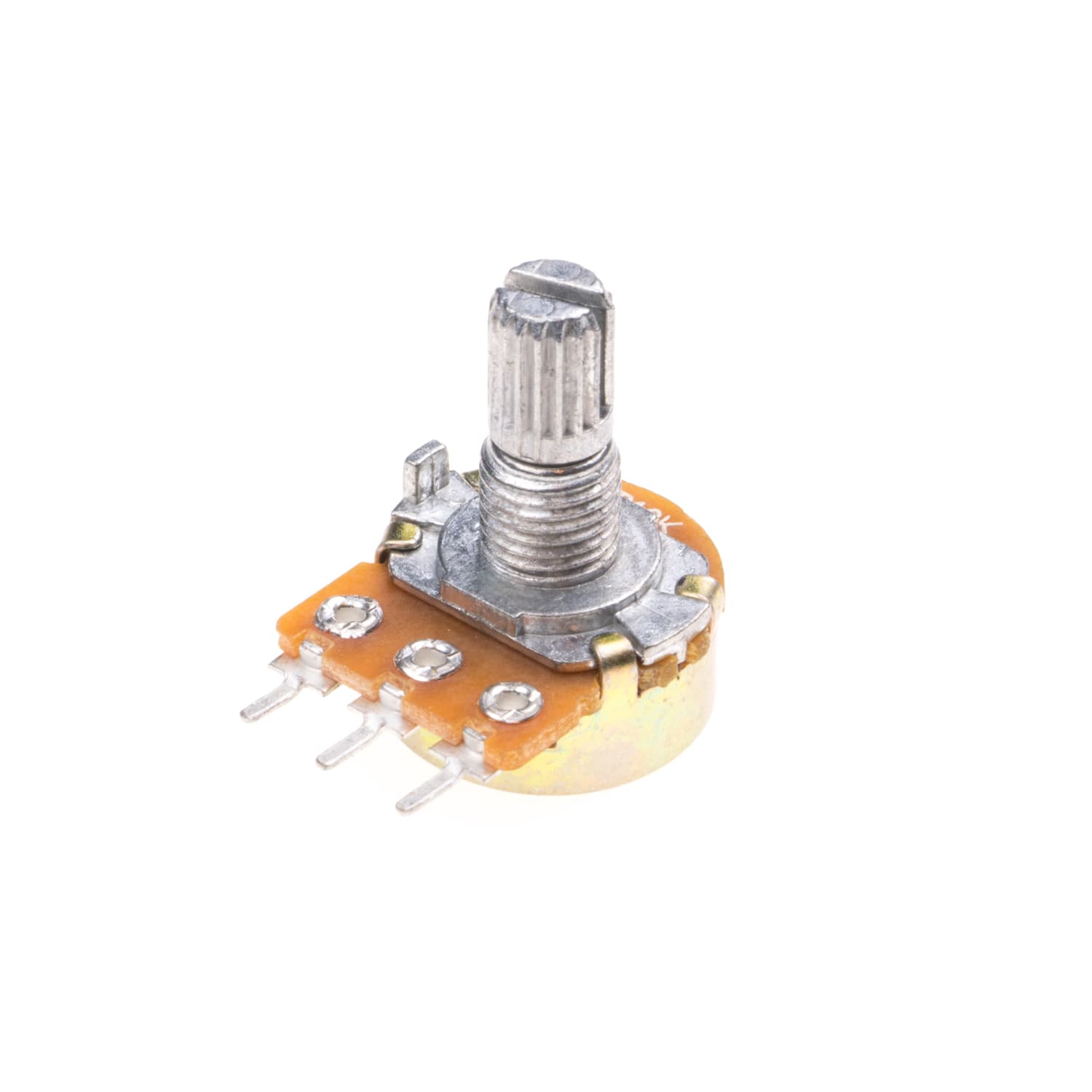

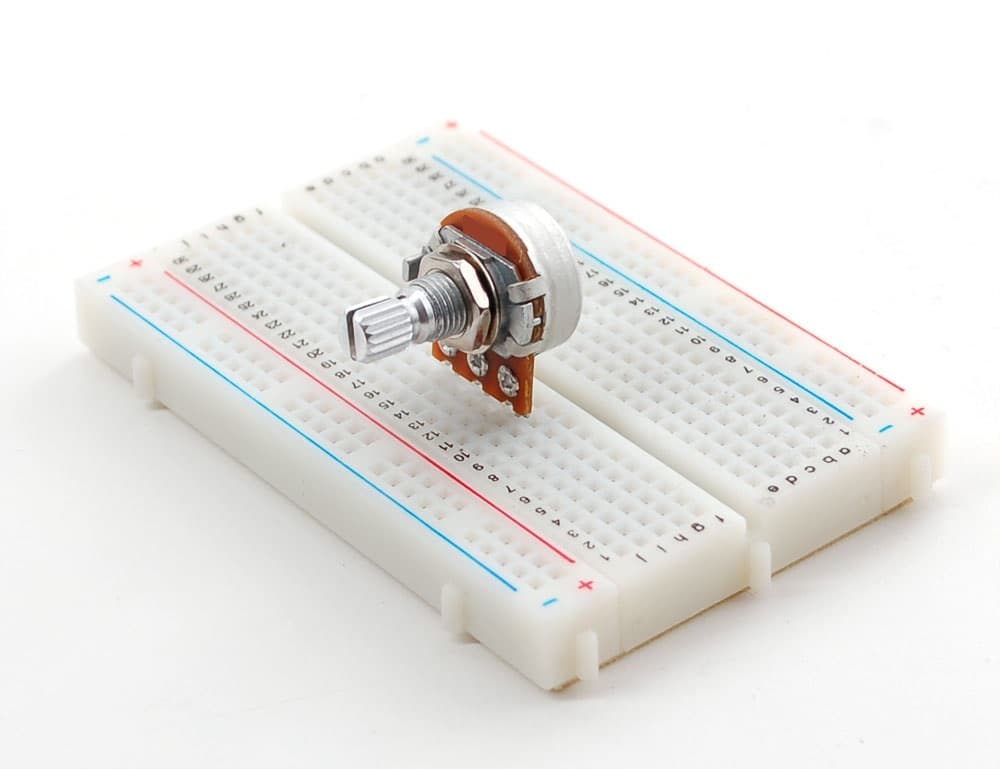

Breadboard compatible potentiometer

  • Image 1
  • Image 2

Product Description

An adjustable potentiometer can open up many interesting user interfaces. Turn the pot and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user!


  • Nominal resistance: 5 kOhm/10 k
  • Tolerance: 20%
  • Power rating: 200mW (0.2W)
  • Maximum voltage: 200V


  • Base diameter: 16.5mm
  • Base depth: 8.5mm
  • Shaft diameter: 6mm
  • Shaft length: 16mm (with thread)
  • Pitch: 5mm (through hole or solder)
