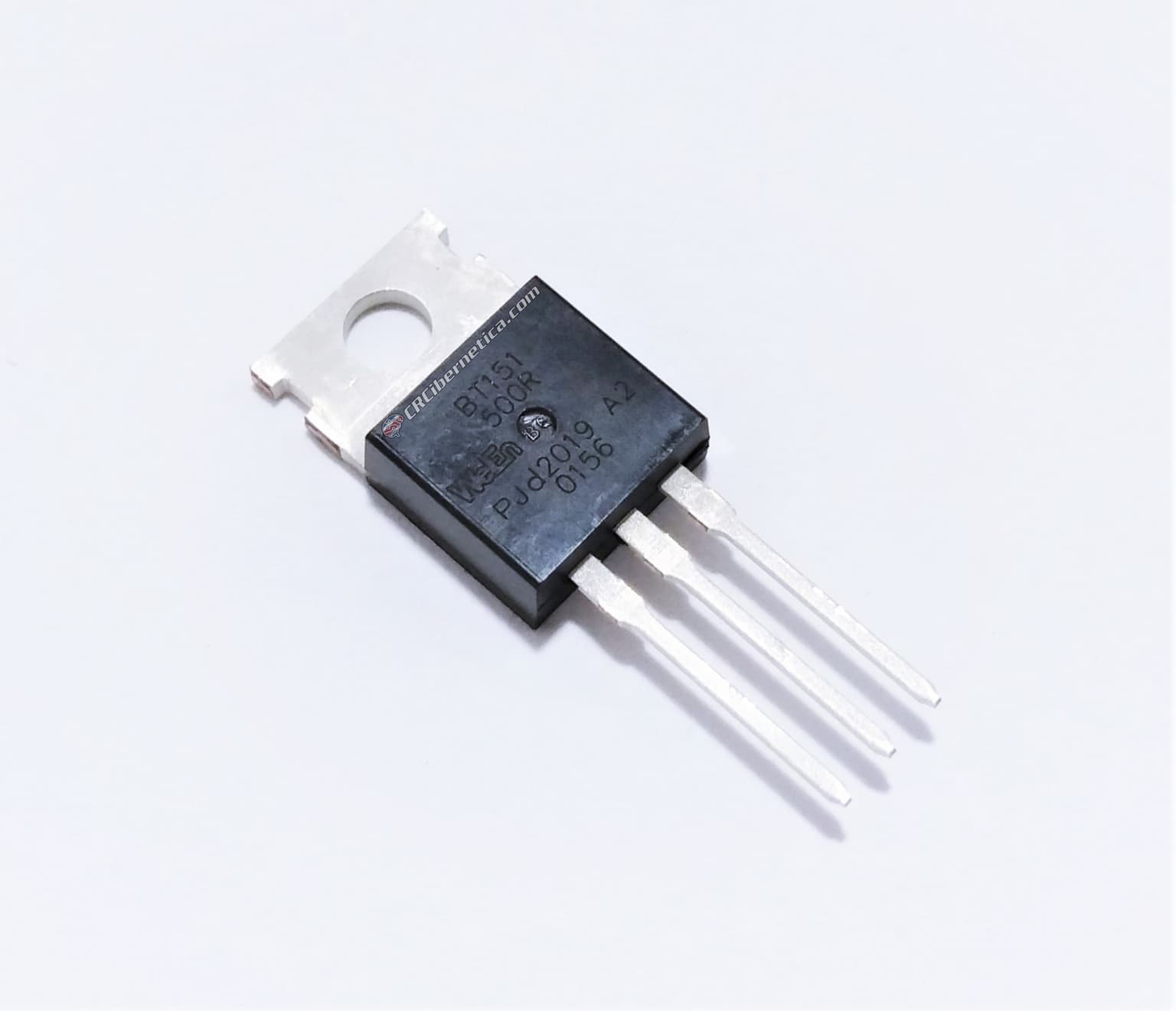

Glass passivated thyristor in a plastic envelope for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.

Features and benefits

• High reliability
• High surge current capability
• High thermal cycling performance

Electrical Characteristics

• Repetitive peak off-state voltage (VDRM): 500V
• Average on-state current (IT_AV): 7.5A
• RMS on-state current (IT_RMS): 12A
• Gate trigger current (IGT): 15mA max

Pinout

Documents

Datasheet
