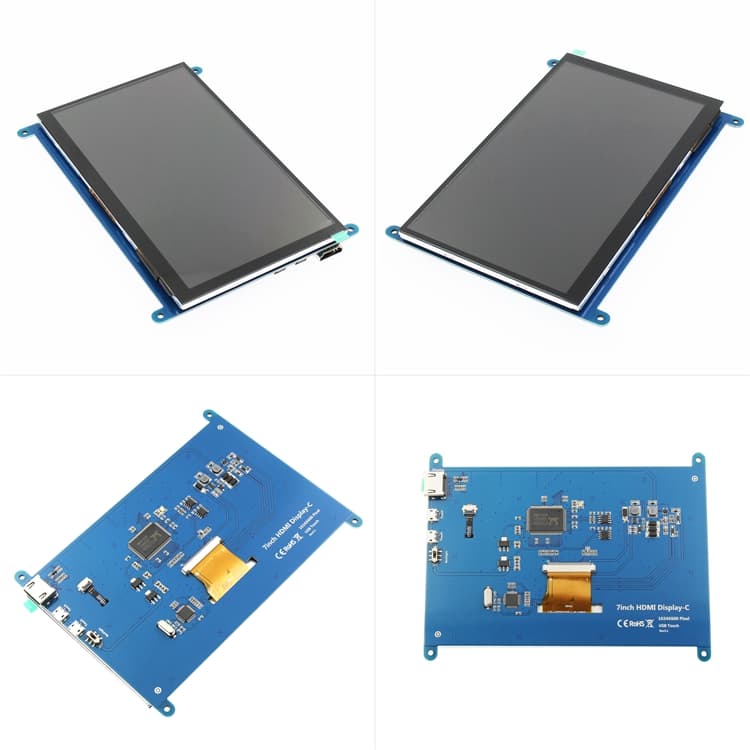

The Capacitive Touch Screen 7" HDMI features a hardware resolution of 1024 × 600, with software-configurable resolution of up to 1920x1080. The capacitive touch screen supports up to 5 touch points and allows independent control of the backlight for power-saving. Compatible with Raspberry Pi, BB Black, Banana Pi, and other mainstream mini PCs, it can be used as a general-purpose HDMI monitor or as a Raspberry Pi display without the need for drivers. It also functions as a PC monitor, supporting Win7, Win8, and Win10 systems with up to 5 touch points (single touch for XP and older versions). The screen is CE and RoHS certified.

Specifications:

• Size: 7.0 (inch)
• Resolution: 1024*600
• Touch: five-point capacitive touch

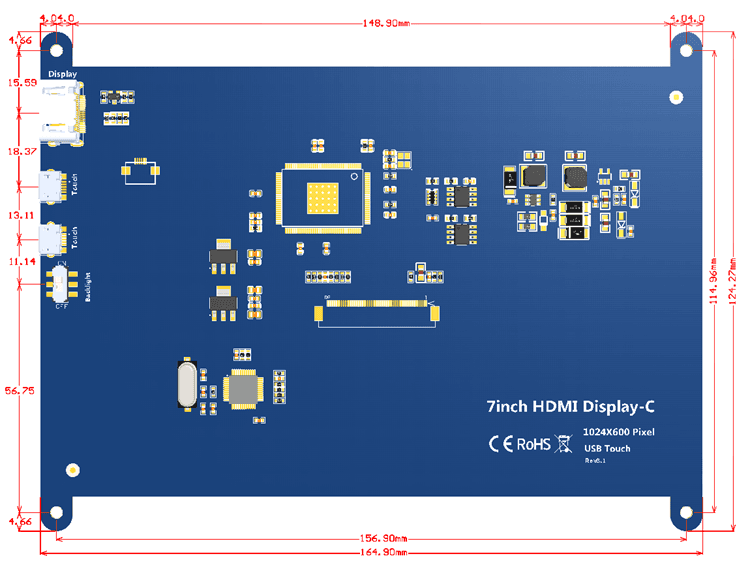

• Active Area： 154.2144*85.92(mm)
• Product Size: 164.9*124.27 (mm)
• Package Size: 211*150*53 (mm)
• Rough Weight(Package containing): 405 (g)
• Power Dissipation: 0.62A*5V @1024*600

Documents:

• Wiki
