Product Overview

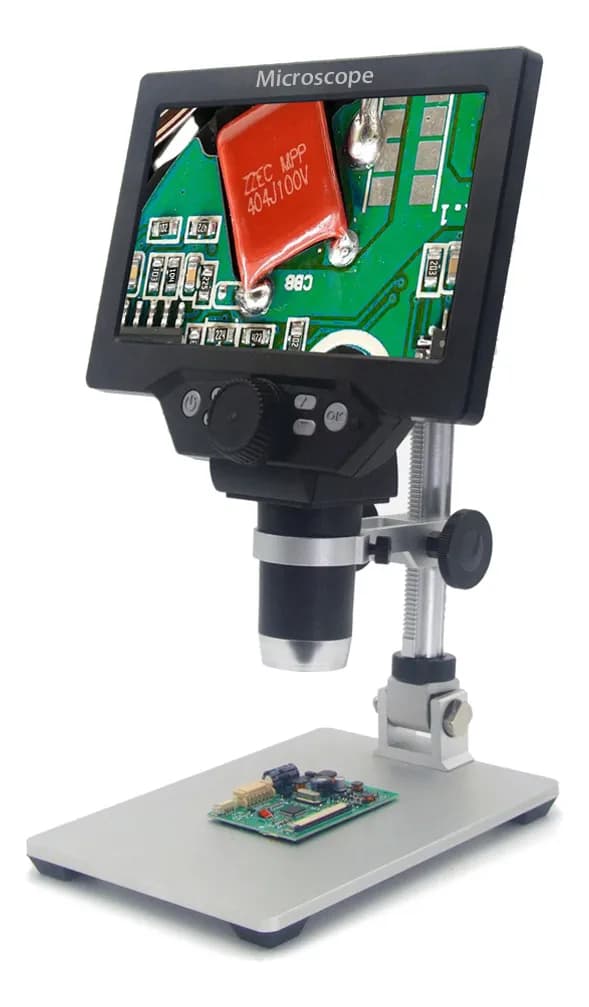

The G1200 Digital Microscope is an advanced inspection tool, specifically designed for electronics technicians, professional repair specialists, and enthusiasts. Equipped with a built-in LCD screen and a continuous zoom system, this device provides an optimized experience for PCB analysis, soldering, micro soldering, and various precision tasks.
Key Advantages
- Continuous Zoom 1–1200×: Allows seamless magnification adjustment, making it easier to precisely focus on objects of different sizes and types.
- Angled stand and wide working space: Enhances maneuverability when using tweezers, soldering irons, or probes under the lens, while reducing unwanted reflections.
- HDR recording with high resolution: Perfect for creating sharp, detailed visual records in standard formats (AVI/JPG) for technical documentation.
Technical Specifications
- Image sensor: 12 megapixels (HD)
- Display: 7-inch color LCD, 1,024 × 600 resolution
- Optical magnification: Continuous zoom from 1× to 1200×
- Focus range: From 10 mm to infinity
- Lighting: 8 adjustable white LEDs, estimated lifespan of 100,000 hours
- Video recording: Full HD (1080p) and 720p, AVI format, HDR enabled
- Image capture: Configurable resolution — 1.3 MP, 2 MP, 5 MP, 8 MP, 10 MP, and 12 MP; JPG/BMP formats
- Control functions: Photo timer, 7-level exposure compensation, date/time stamp, anti-shake
- Operating settings: Screensaver (auto-off at 30 s, 1 min, 2 min), programmable auto power-off (3 min, 5 min, 10 min),
- light source selection (50 Hz/60 Hz)
- Storage: microSD slot (supports up to 128 GB, class 10+)
- Power supply: Rechargeable 3,000 mAh lithium battery (4–5 h runtime in viewing mode without recording); Micro-USB charging

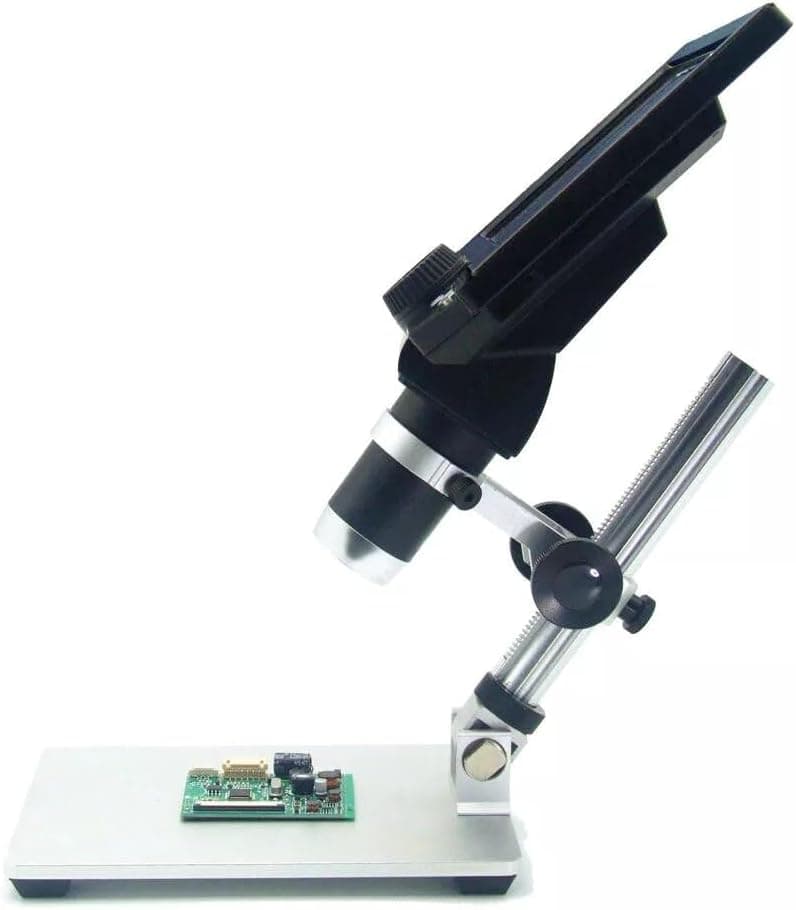

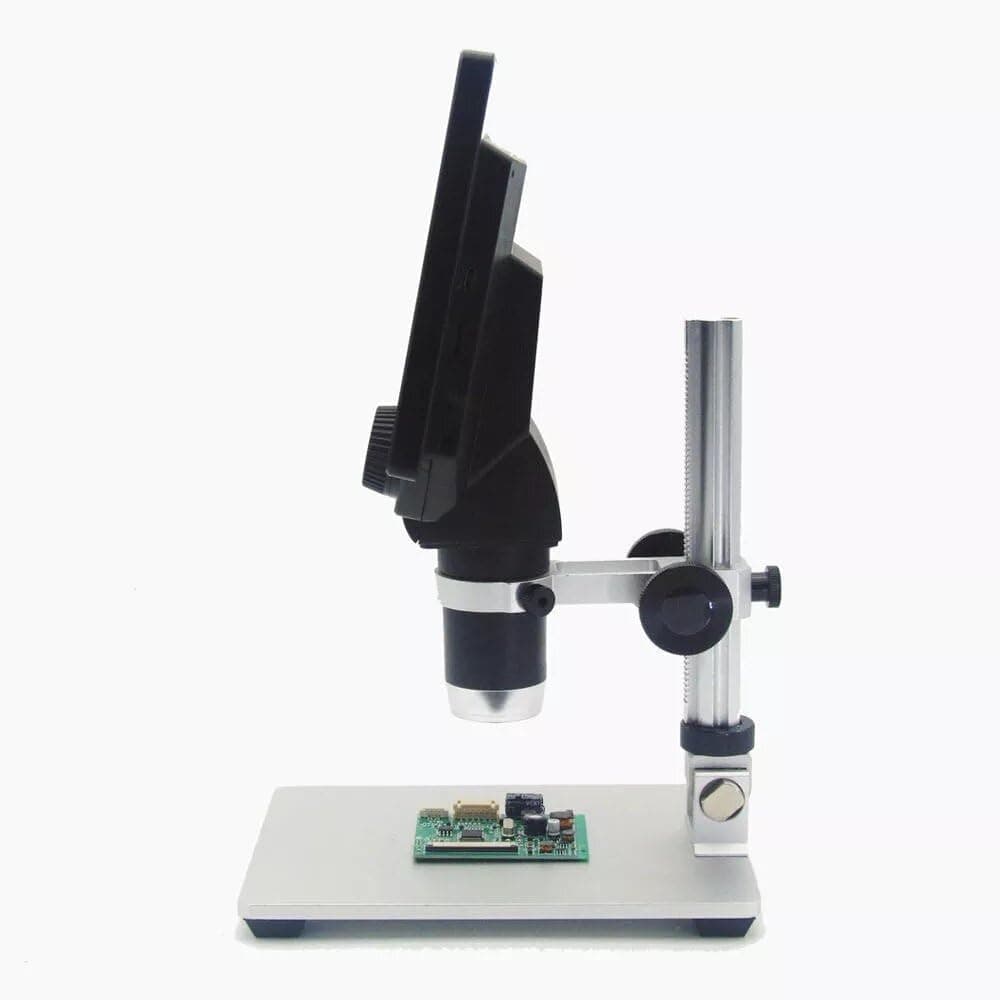

- Construction: Aluminum alloy stand with adjustable angle design to minimize reflections and allow tool manipulation beneath the lens
- Dimensions: Approx. 205 × 160 × 80 mm;
