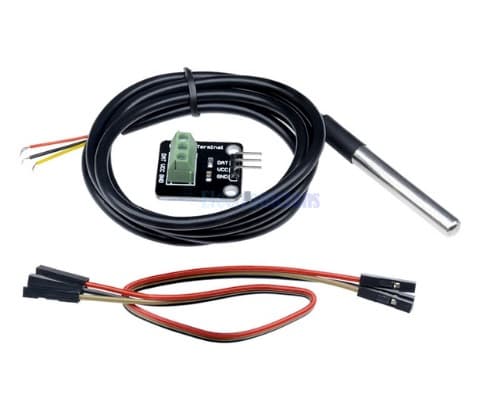

DS18B20 Temperature Probe and Terminal Adapter

  • Image 1
Price:
$6.95
SKU:
SEN-CB1168
Current Stock:
20
Quantity:


Product Description

This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.

Dimensions: Probe is 6mm in diameter and roughly 52mm long. Overall length (including wire) is 1m.

This version includes a handy adapter board that adds the required 4.7K resistor to connect directly to a microcontroller.

Features:

  • 3.0-5.5V input voltage
  • Waterproof
  • -55°C to+125°C temperature range
  • ±0.5°C accuracy from -10°C to +85°C
  • 1 Wire interface
