Product Overview

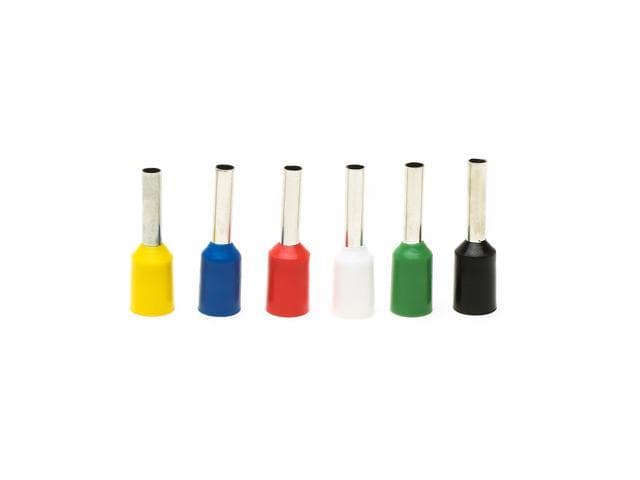

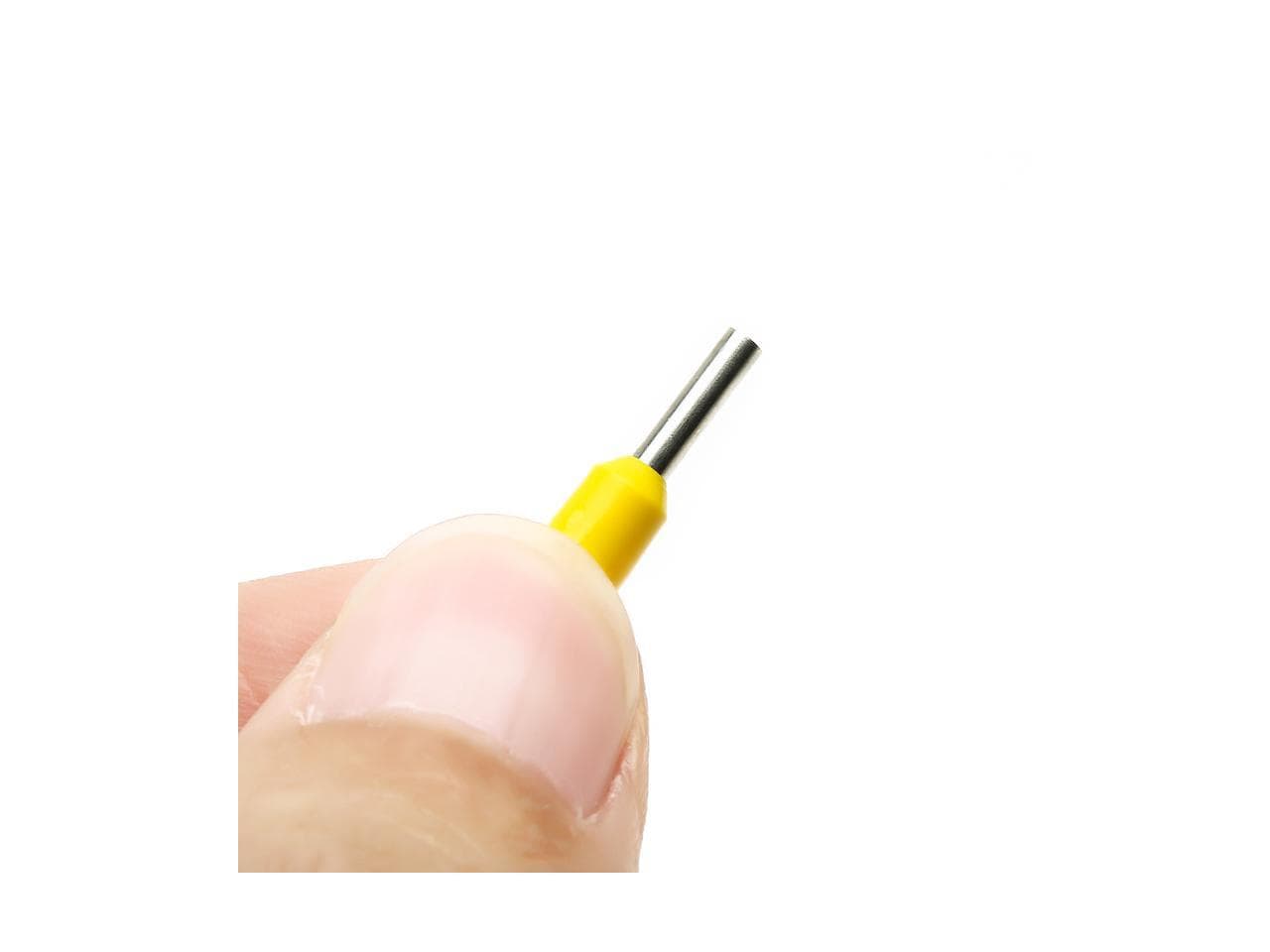

The E1508 is an insulated cable ferrule end terminal which consists of a tinned copper hollow tube with a nylon insulating sleeve. It is designed to provide a neat end termination to multi-stranded wires and a secure connection to terminal blocks.
Specifications
- Wire diameter: 16 AWG / 1.5 mm²
- Internal diameter: 1.7 mm
- Length is 15.3mm
- Maximum electrical rating is 600V at 105°C
- Maximum electric current is 18 A
Crimping Instructions
