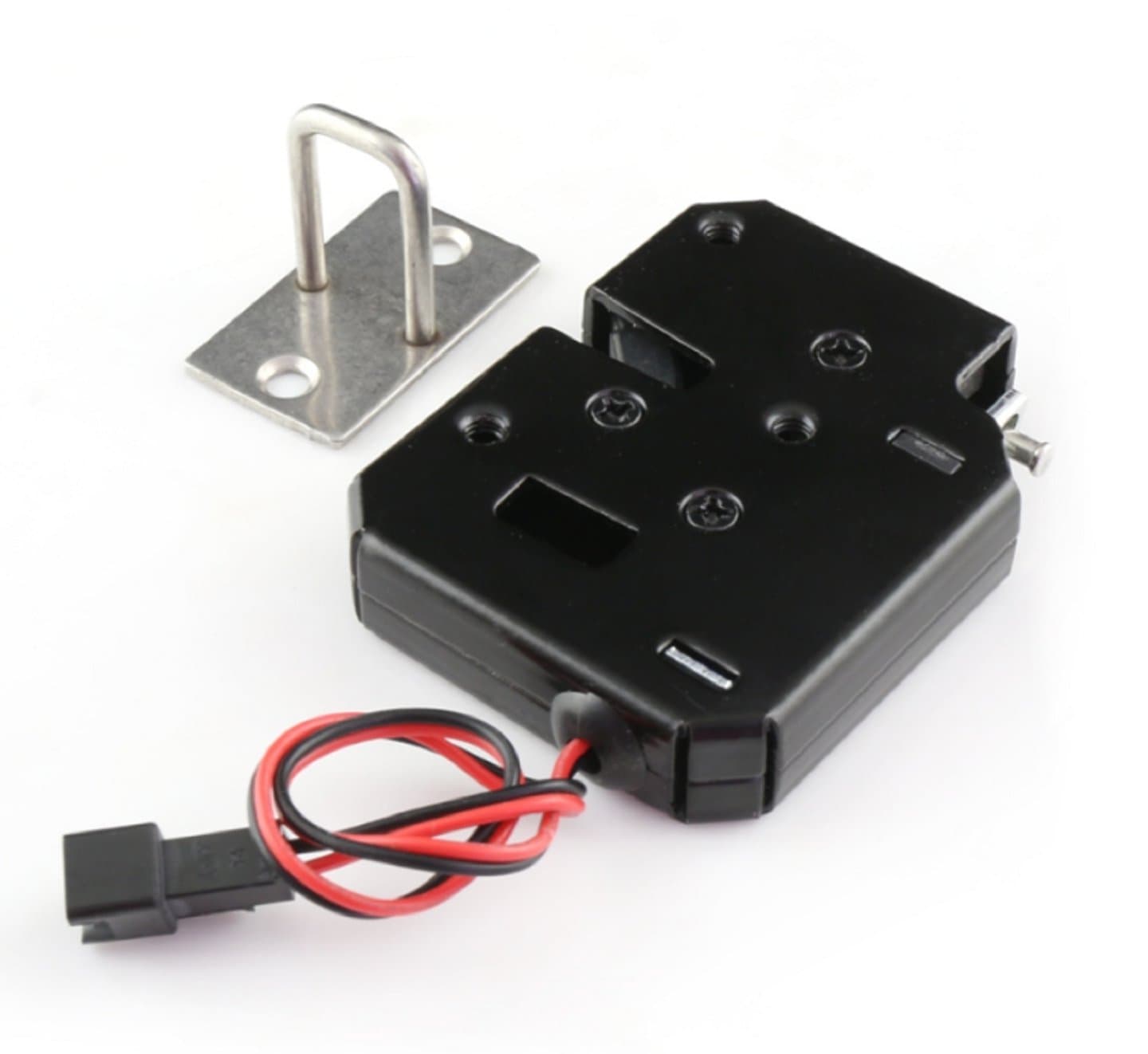

Electromagnetic Lock 12VDC

  • Image 1
  • Image 2
Current Stock:

Product Description

This is an electromagnetic lock that works with 12VDC, once powered it will release bolt and push open the door with weight within 0.5-4kg easily. The lock only need to be powered to unlock it, which means it has a very low consumption, it can be used in mailbox, vending machine, cabinet, and it also has a toggle for emergency.

Note: power-on duration should not exceed 200ms, or it may damage the coil in lock.


  • Working Voltage: 12VDC
  • Working Current: 2A
  • Power-on Duration: <200ms

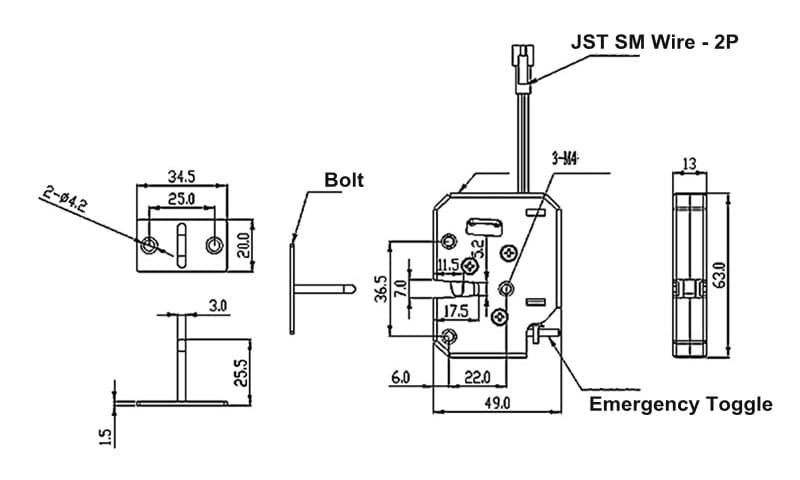

  • Dimension: 63mmx 49mmx 13mm
  • Weight: 125g
