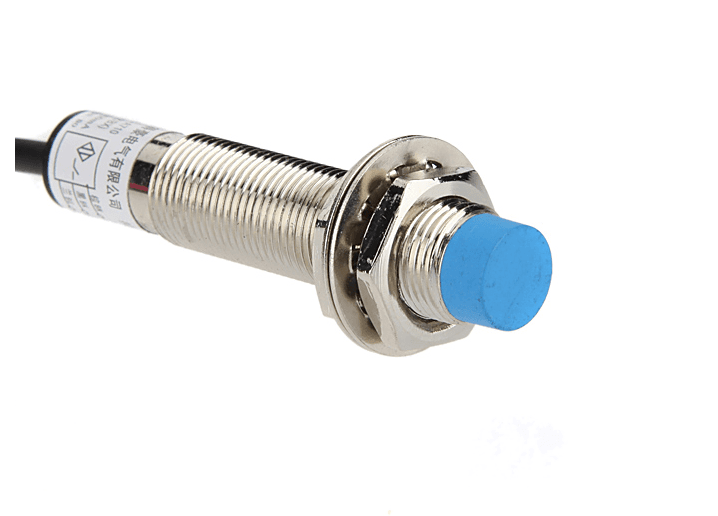

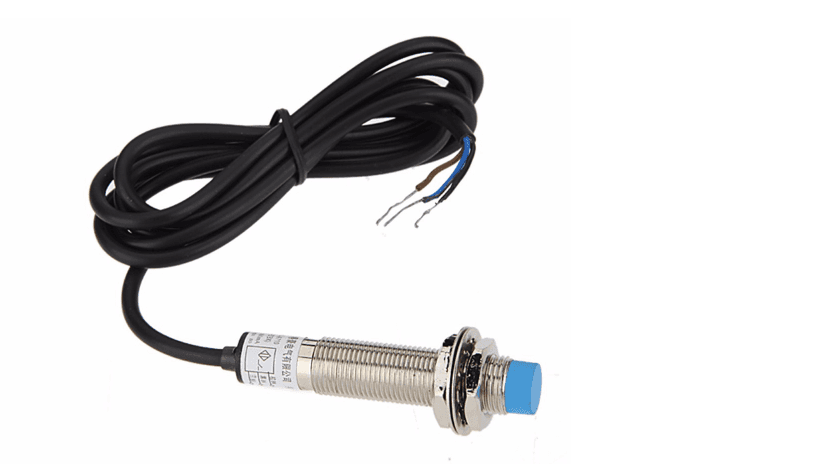

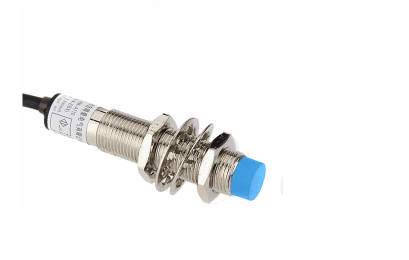

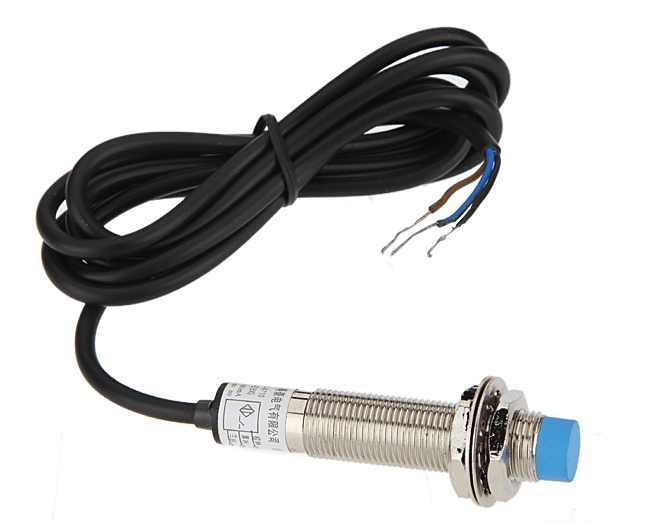

Inductive Proximity Sensor

  • Image 1
  • Image 2
  • Image 3
  • Image 4
RRP:
$9.95
Your Price:
$7.95 (You save $2.00)
SKU:
PRT-CB0322
Current Stock:
35
Quantity:


Product Description

Inductive proximity sensors are used for non-contact detection of metallic objects. Their operating principle is based on a coil and oscillator that creates an electromagnetic field in the close surroundings of the sensing surface. The presence of a metallic object (actuator) in the operating area causes a dampening of the oscillation amplitude. The rise or fall of such oscillation is identified by a threshold circuit that changes the output of the sensor.



Case material: Metal / Copper

Ouput Status: NO

Voltage: 6-36V DC

Output Current: 300mA

Polarity: NPN

Dimension: M12x1x55mm

Size 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia)

Cable Length 110cm/43.3"




Operating Temperature -25°C to +55°C (Non-freezing Condition)

Detection Distance: 4 mm +-10%

Part number: LJ12A3-4-Z/BX

Wiring connection:

  • Brown is connected to the positive power supply.
  • Blue is connected to the negative power supply.
  • Black is connected to the load.

Response Frequency 0.5Hz
Detect Object: Iron 15x15x1mm
