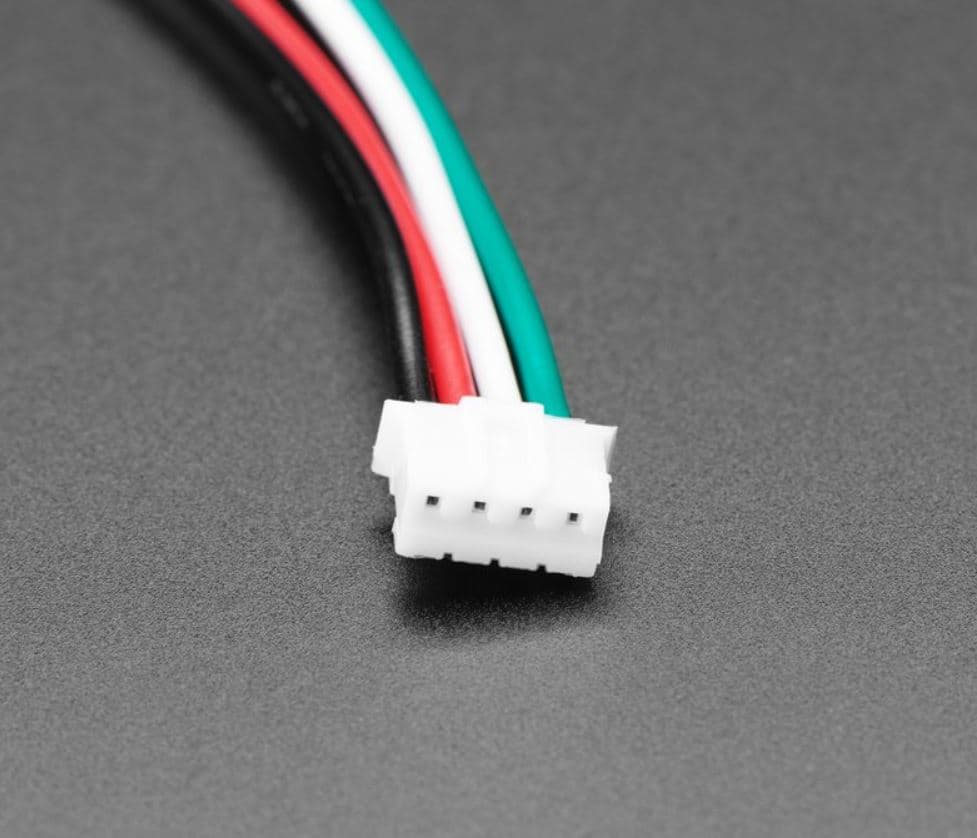

JST PH 4-Pin to Female Socket Cable - I2C STEMMA Cable - 200mm

  • Image 1
  • Image 2
  • Image 3
  • Image 4

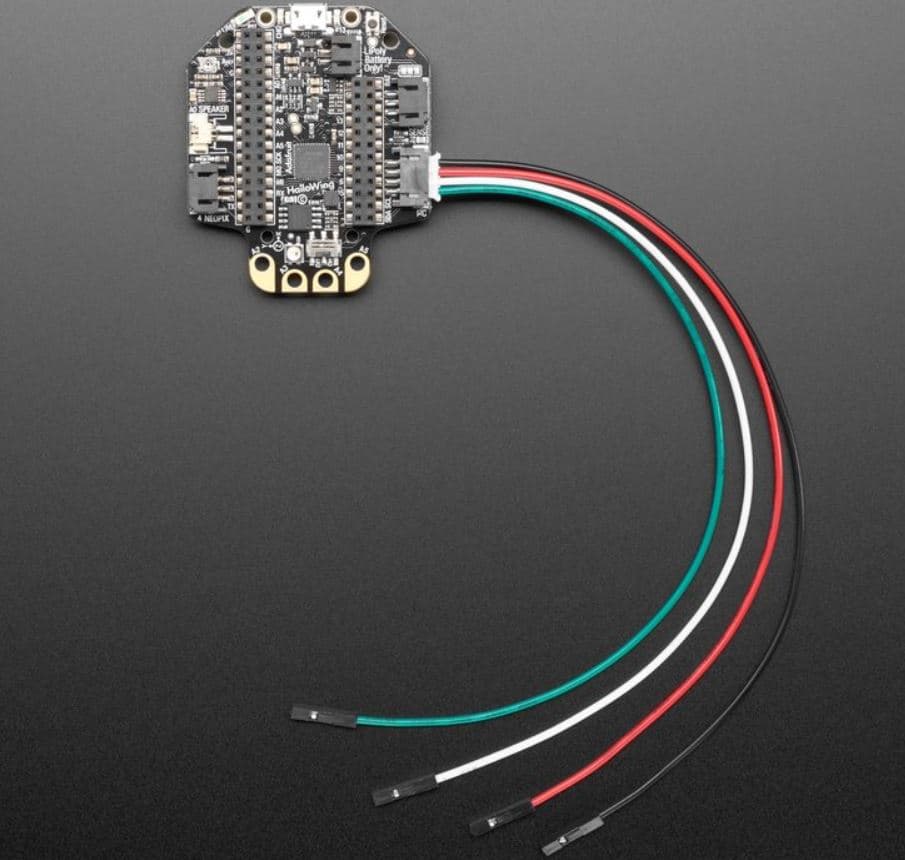

  • Example use

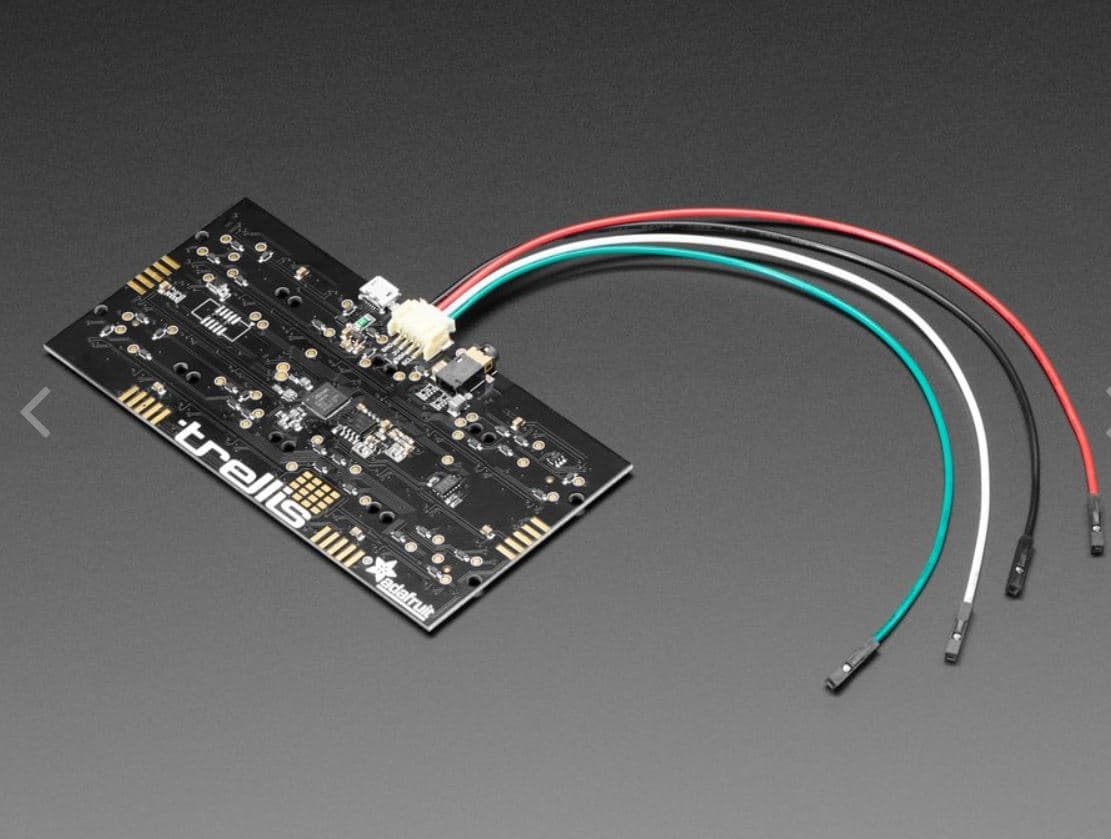

  • Example use
Price:
$2.50
SKU:
ADA-3950
Current Stock:
40
Quantity:


Product Description

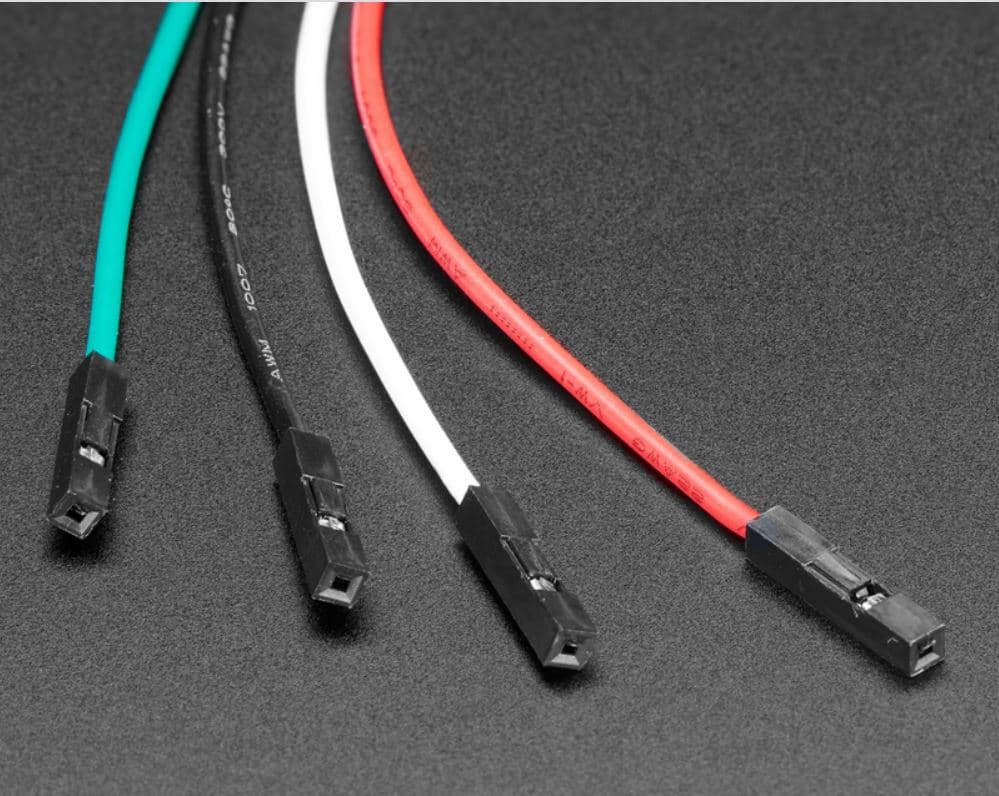

This cable will let you turn a JST PH 4-pin cable port into 4 individual wires with high-quality 0.1" female sockets on the end. We're carrying these to match up with any of our boards with 'STEMMA' connectors on them. Can also be used with any STEMMA breakouts! This one has socket pins, so it could be used to connect to wires or headers.

Wires color coded:

  • Black for GND
  • Red for V+
  • White for SDA
  • Green for SCL

Even though this is a JST PH connector, it will fit into a Seeed Grove connector and have the right matching wires as well.

Technical Details:

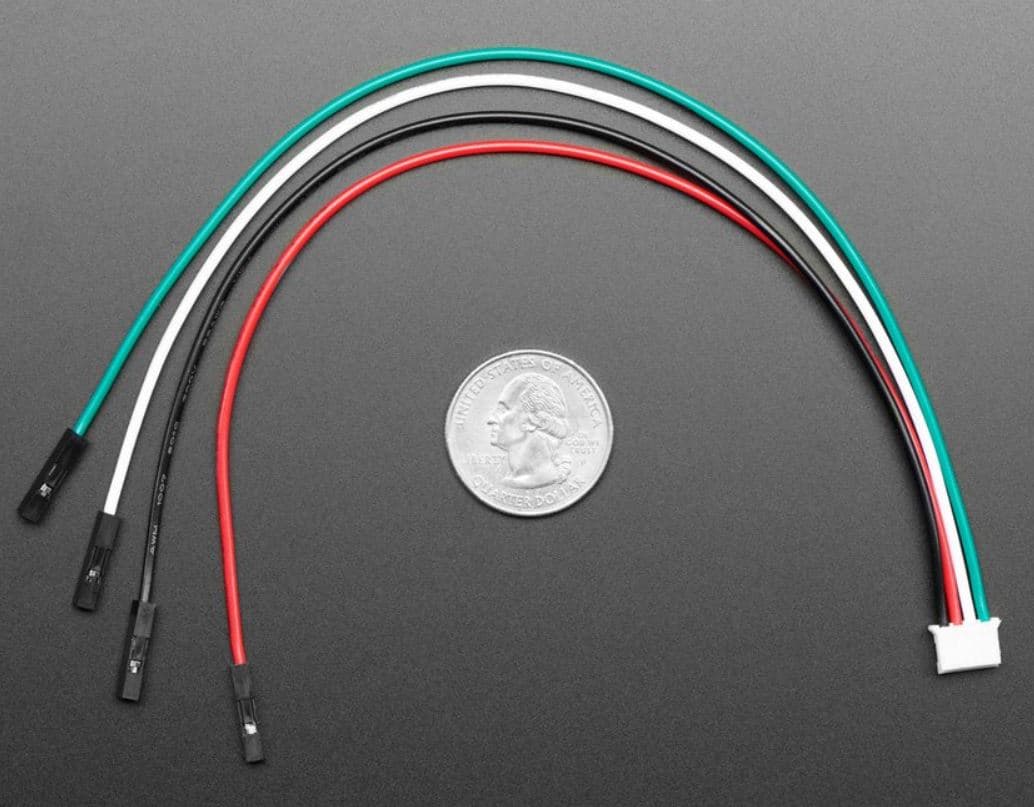

  • Wire Length: 7.8" / 200mm
  • Wire Diameter: 1.6mm
  • JST Connector: 8.5mm
  • JST Pitch: 2mm
