K-1000C Pixel LED Controller

$39.95
K-1000C Pixel LED Controller
SKU:
WRL-CB7024

Out of stock

Product Overview

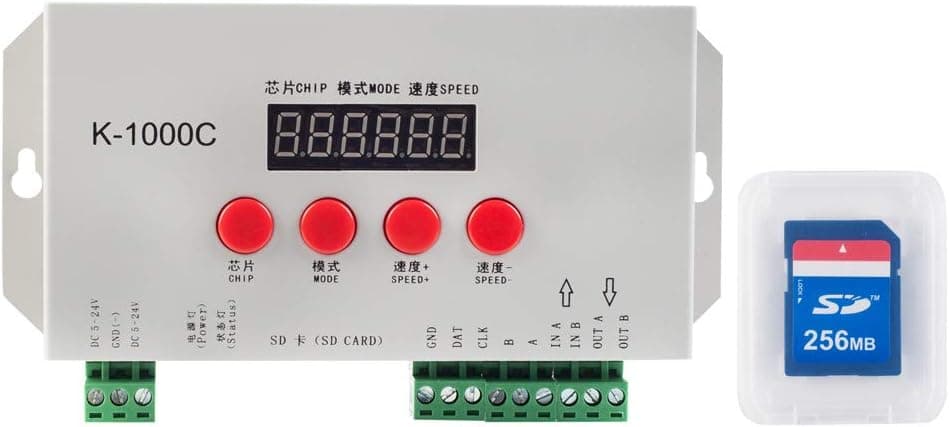

The K-1000C controller is a programmable device used to manage and operate LED lights, especially LED strips and smart pixel modules. It functions as the brain of lighting systems, allowing the user to create and play a wide variety of lighting effects, color sequences, and animations.

Specifications

  • Power Supply: 5v - 24v
  • Power Consumption: 2W
  • Data transmission port: 3 pin
  • Operating temperatura: -30°C to 85°C
  • SD Card: 256MB(the brand may vary)

Technical Features

  • Grayscale control from 32 to 65,536 levels, with Gamma correction processing.
  • Supports various types of point and line light sources, as well as all kinds of rules and handling of specific shapes.
  • The controller has one output port and can support up to 512/2048 pixels (DMX lighting supports up to 512 pixels).

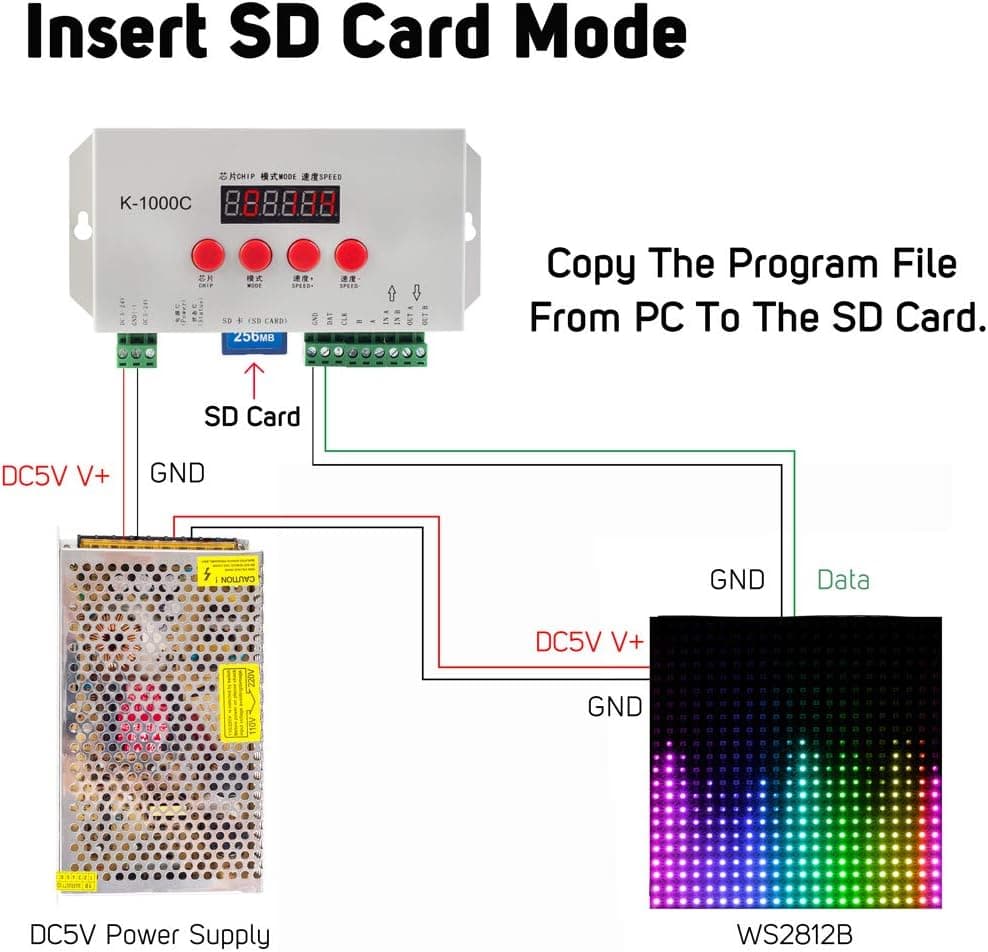

  • Plays content stored on an SD card; the SD card can store up to 32 effect files and supports SD card capacities from 128MB to 32GB.

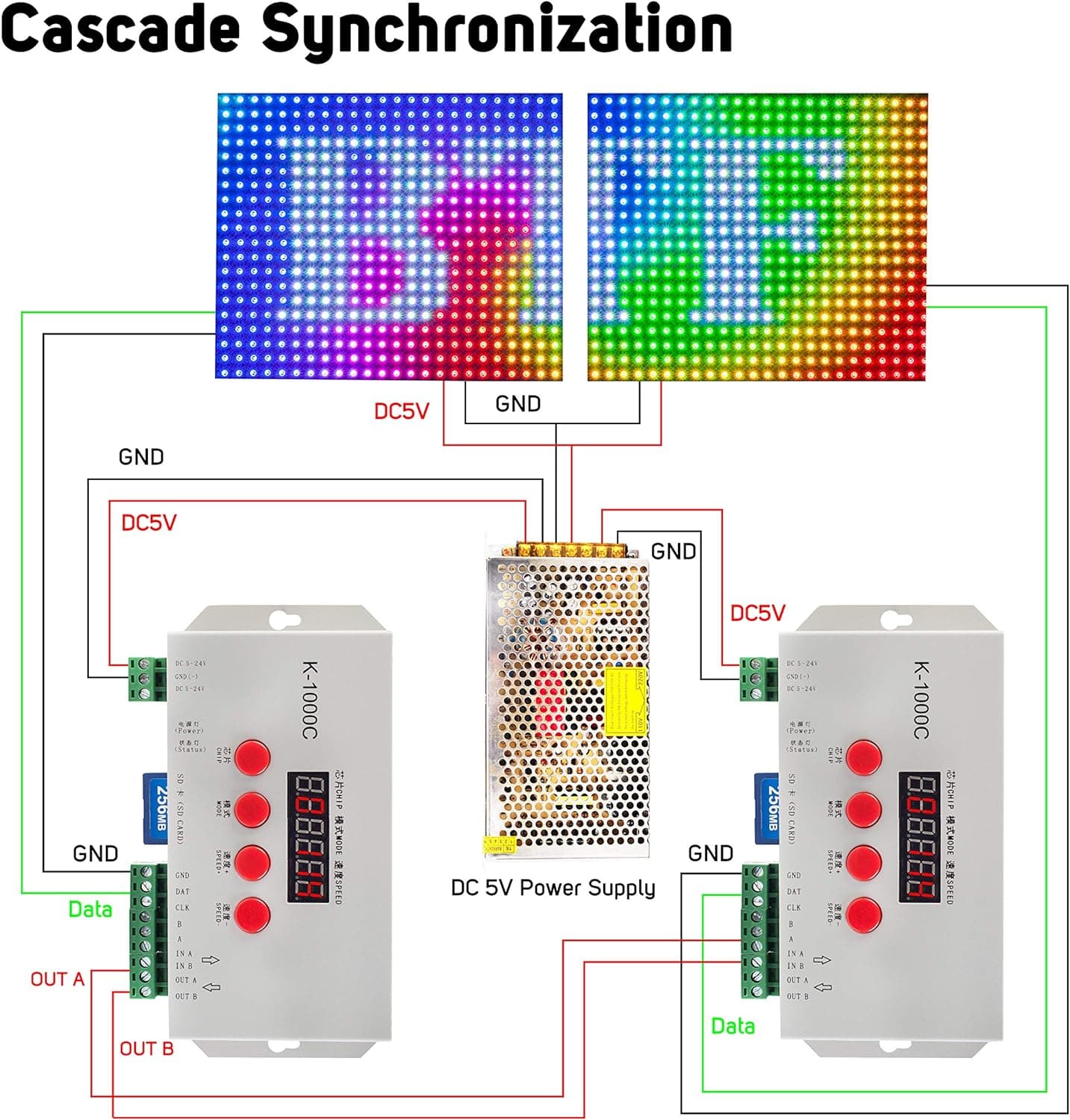

  • The controller can be used standalone or with multiple cascaded controllers. Optical isolation cascade mode provides anti-interference and better stability; the cascade distance between two controllers can reach up to 150 meters. A 0.5mm² pure copper power cable is required.
  • The controller's supported chip can either be locked in the software or not; the supported IC can be selected using the CHIP button on the controller. This approach is more flexible and convenient.
  • For DMX lighting ICs, the controller includes an address writing function. In addition, with LedEdit-K V3.26 software or later, the one-key address writing function can be configured.
  • Supports 4-channel pixel lamps (RGBW) or single-channel point pixels.
  • Improved 485 TTL and differential 485 (DMX) signal output.
  • The controller includes the following test effects:
    1. Jump between red, green, blue, and black;
    2. Gradient transitions of red, green, blue, and black;
    3. Red, green, blue transitions and effects.

Supported Chips:

  • CS1903, 1909, 1912, 2903, 2904, 2909, 2912
  • TM1803, 1804, 1809, 1812
  • SM16703, 16709, 16712
  • WS2811, WS2812, WS2813, WS2815, WS2818
  • INK1003
  • LX3203, 1603, 1103
  • GS8205, 8206
  • SK6812 (supports up to 2048 light pixels)
  • SM16716, 16726 (supports up to 2048 pixels)
  • P9813 (supports up to 2048 pixels)
  • LPD6803 (supports up to 2048 pixels)
  • LX1003, 1203 (supports up to 2048 pixels)
  • WS2801 (supports up to 2048 pixels)
  • LPD1886 1 (supports up to 2048 pixels)
  • TM1913 (supports up to 2048 pixels)
  • TM1914 (supports up to 2048 pixels)
  • P9883, P9823 (supports up to 2048 pixels)
  • DMX (supports up to 512 pixels; for best results, ≤320 pixels is recommended)
  • DMX 500K (supports up to 512 pixels; ≤320 pixels is recommended)
  • DMX 250K-CZF (supports up to 512 pixels; ≤320 pixels is recommended)
