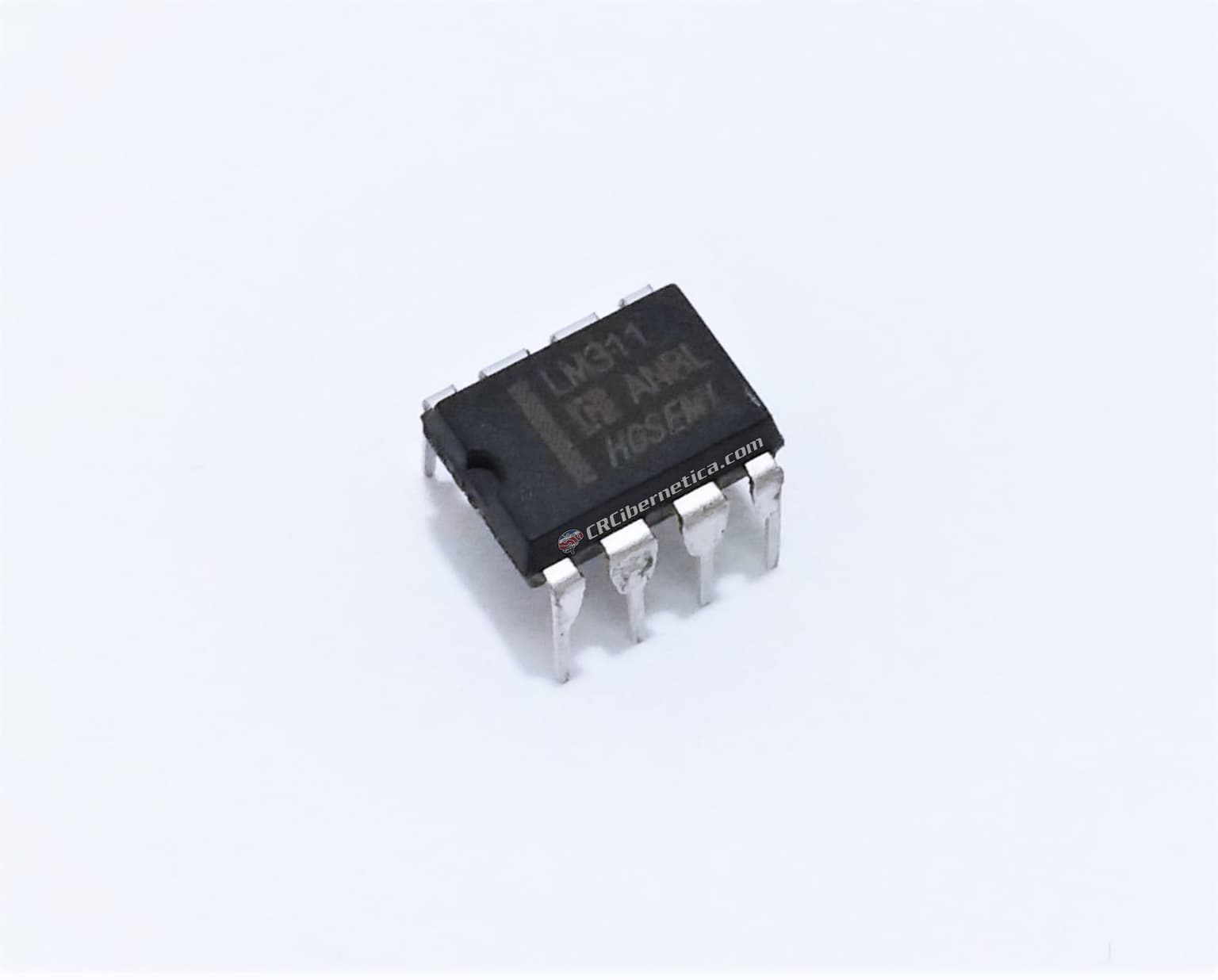

LM311 High Performance Voltage Comparators

  • Image 1
Price:
$1.25
SKU:
COM-CBLM311
Current Stock:
300
Quantity:


Product Description

These devices are designed to operate from a wide range of power supply voltages, including ±15-V supplies for operational amplifiers and 5V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground

Electrical Characteristics

  • Supply voltage (Vcc)max: +15 V
  • Input Differential voltage (VDI): ±30V
  • Input offset voltage(Vio): 7.5mV
  • Input offset current(Iio): 50nA
  • Voltage gain(Av): 150000
  • Operating free-air temperature: 85°C (max)

Pinout


 Datasheet
