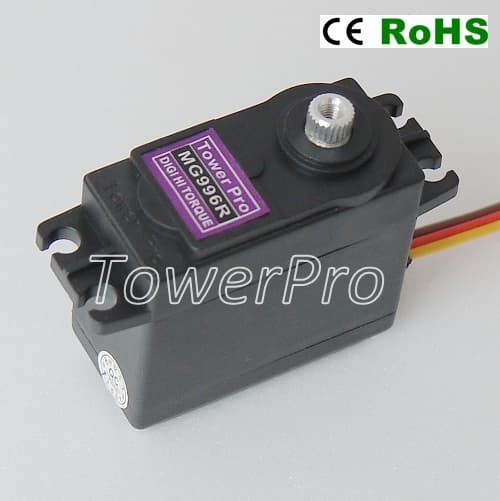

MG996R Metal Gear Servo

  • Image 1
  • Image 2
  • Image 3
  • Image 4
RRP:
$13.95
Your Price:
$8.95 (You save $5.00)
SKU:
MG996R
Current Stock:
22
Quantity:


Product Description

MG996R is an upgraded version of MG995 servo.
The new PCB and IC control system which makes it far more accurate.
Its internal gearing and motor are also upgraded to improve dead bandwidth and centering.
It is a great choice for 1/10 buggy and airplane helicopter, RC-cars from 10 to 6-th scale truggy and monster and many RC model.

Specification:

Weight: 55g
Dimension: 40.7×19.7×42.9mm
Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
Operating voltage: 4.8~ 6.6v
Normal operating current: 600mA - 1A
Stall current: 2.5A
Gear Type: Metal gear
Temperature range: 0- 55deg
Servo Plug: JR (Fits JR and Futaba)
Dead band width: 1us
servo wire length: 32cm
servo arms &screws included and fit with Futaba servo arm
It’s universal “S" type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
CE &RoHS approved
We have upgraded our servo gear set and shaft to aluminum 6061-T6.
It is stronger and lighter than copper.



Product Description



小馬達尺寸標示圖B

PRODUCT CONFIGURE TABLE

Weight(g) 55
 Torque(kg)(4.8v)  9.4
 Speed(sec/60deg)  0.17
 A(mm)  42.7
 B(mm)  40.9
 C(mm0  37
 D(mm)  20
 E(mm)  54
 F(mm)  26.8
