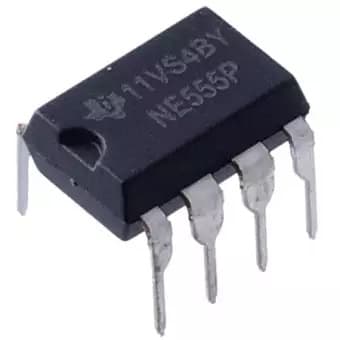

NE555P Multivibrator

  • Image 1
Price:
$0.85
SKU:
COM-NE555P
Current Stock:
91
Quantity:


Product Description

These devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.

Pinout


Functional block diagram


Datasheet
