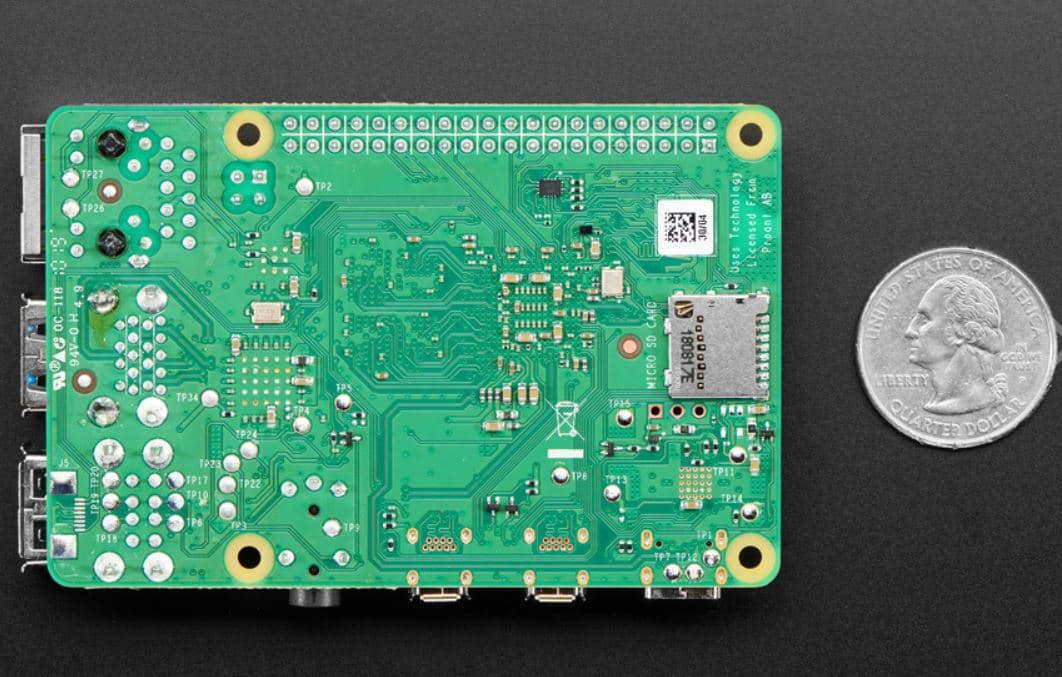

Raspberry Pi 4 Model B (4 GB)

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10
  • Image 11
  • Image 12
Price:
$95.95
SKU:
DEV-CB4296
Current Stock:
5
Quantity:


Product Description

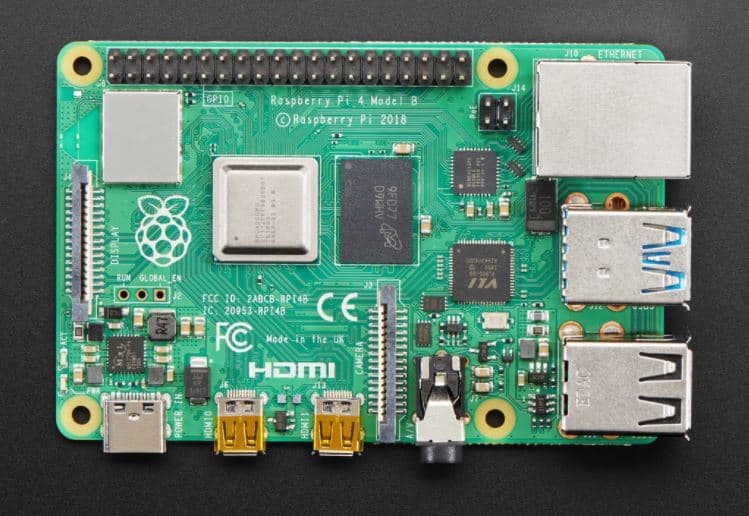

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It offers ground-breaking increases in processor speed, multimedia, performance, memory, and connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides desktop performance comparable to entry-level x86 PC systems.

This product’s key features include a high-performance 64-bit quad-core processor, dual-display support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to 4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet, USB 3.0, and PoE capability (via a separate PoE HAT add-on).

Specifications:

  • Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • Memory: 4GB

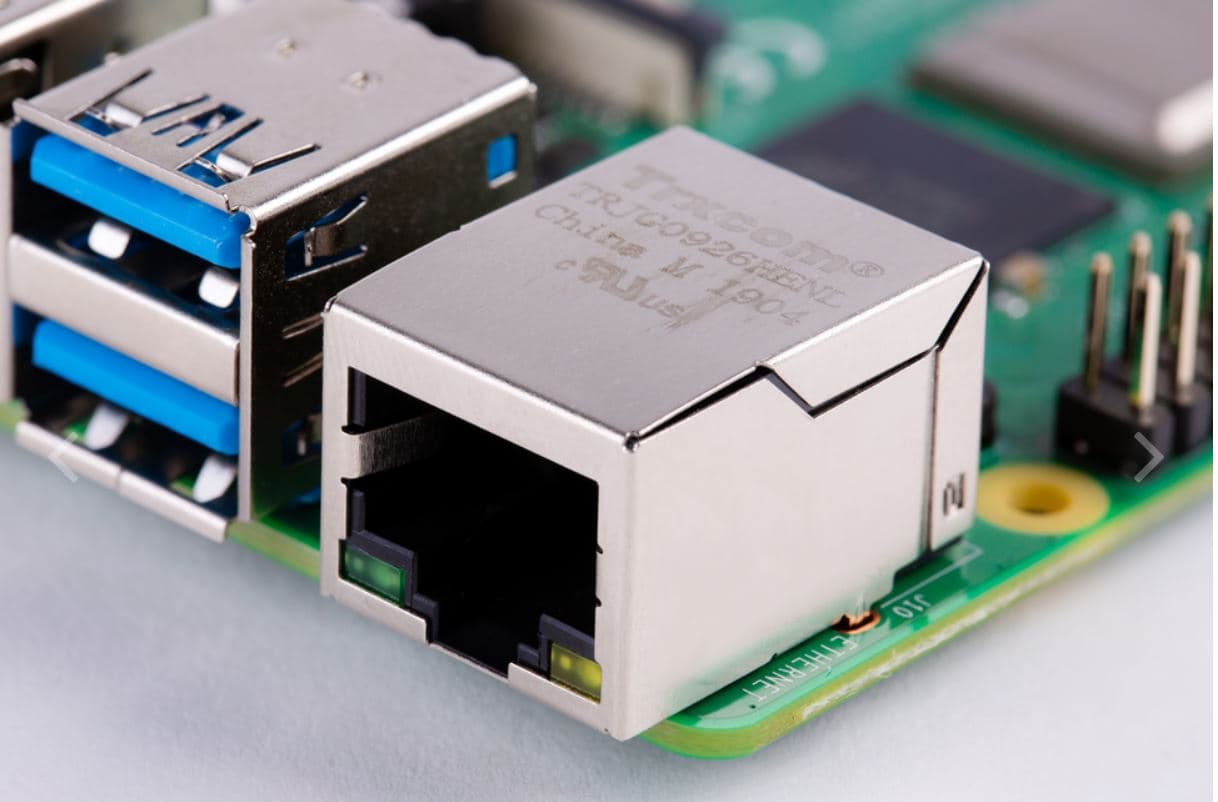

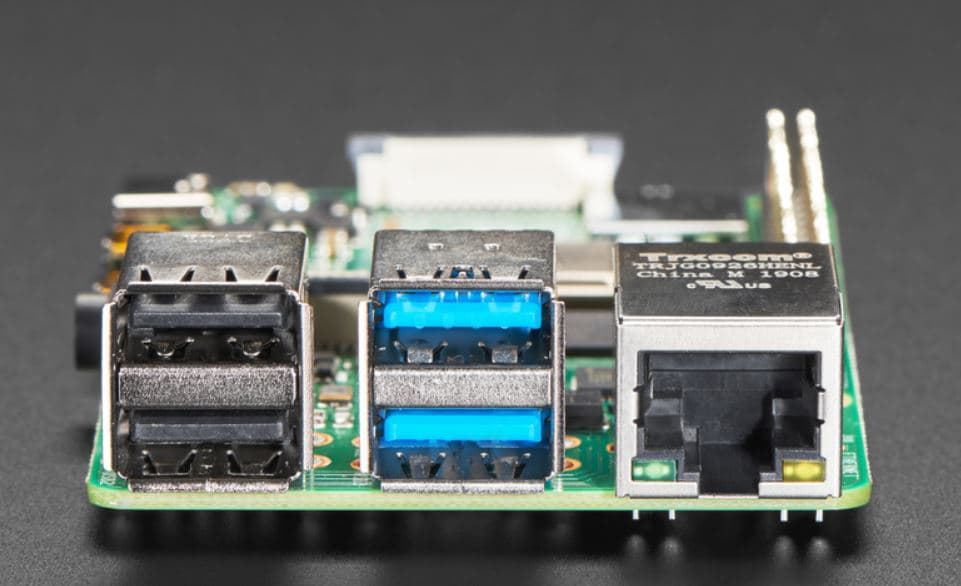

  • Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE, Gigabit Ethernet, 2 × USB 3.0 ports, 2 × USB 2.0 ports

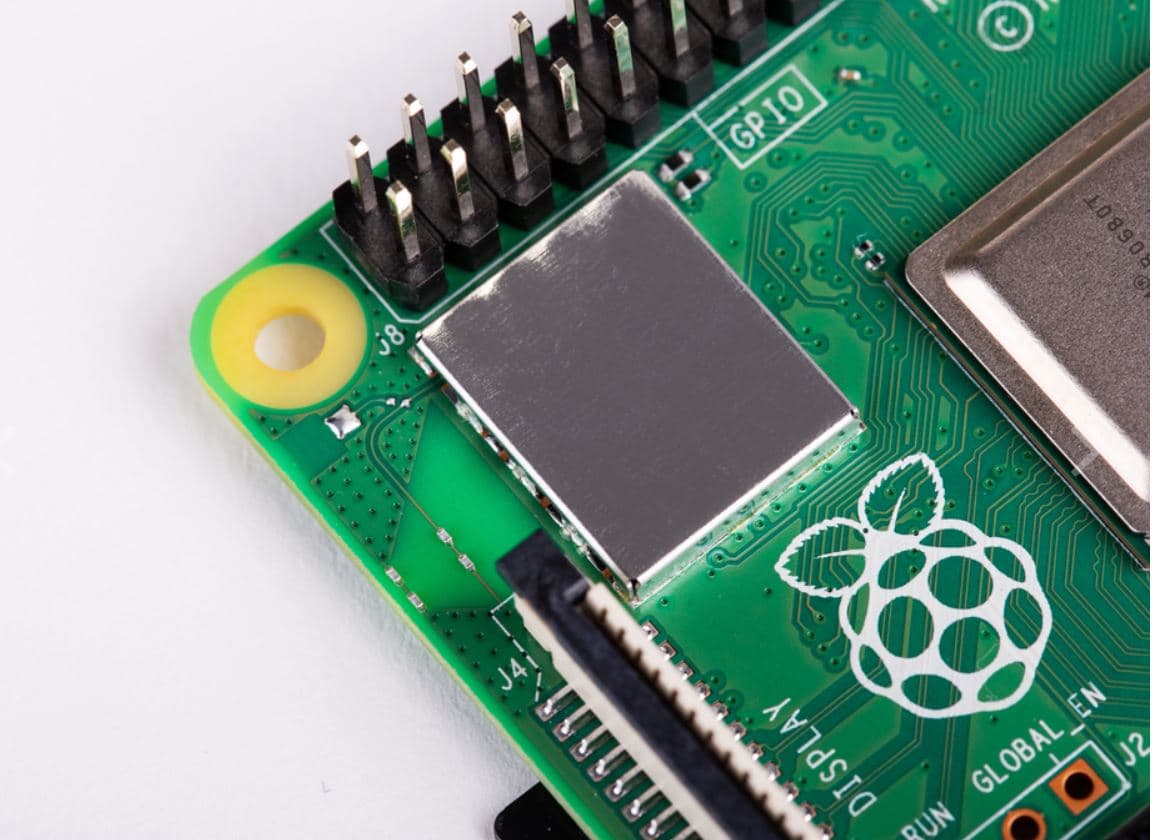

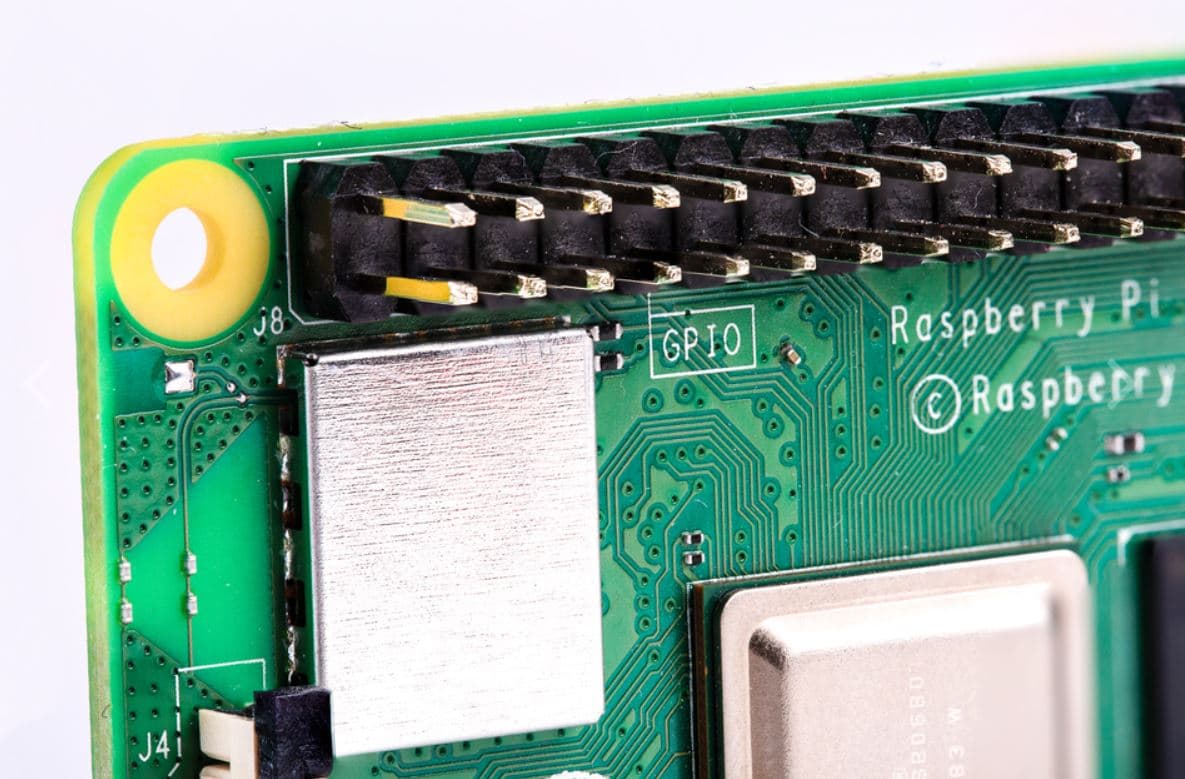

  • GPIO: Standard 40-pin GPIO header (fully backwards-compatible with previous boards)

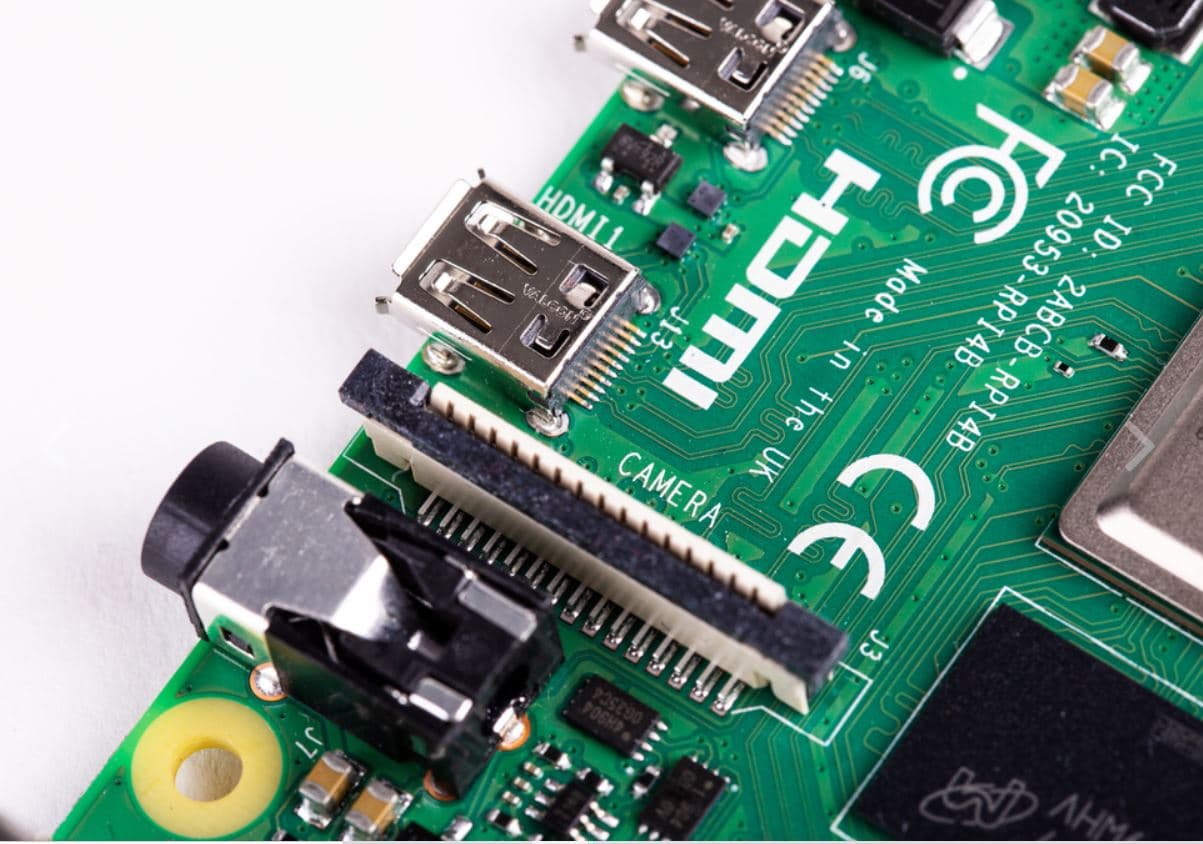

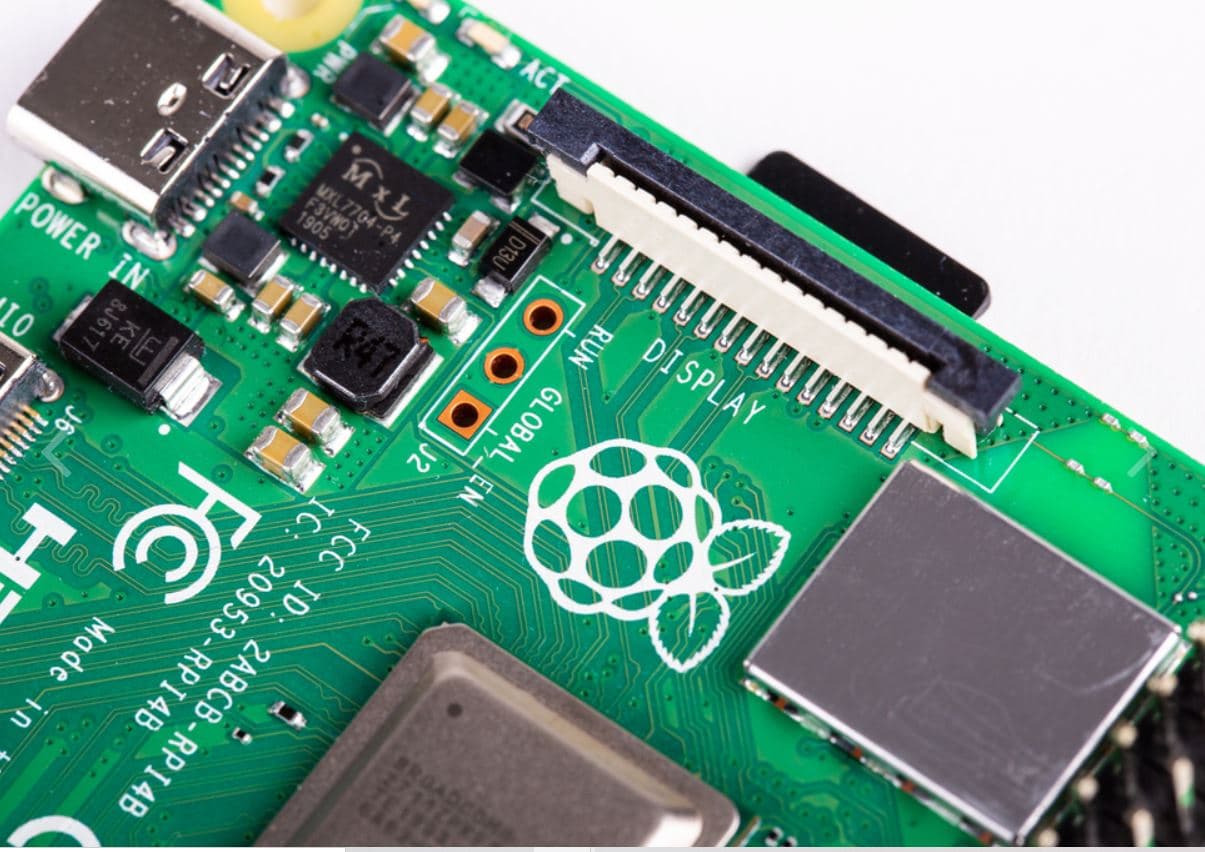

  • Video & sound: 2 × micro HDMI ports (up to 4Kp60 supported), 2-lane MIPI DSI display port, 2-lane MIPI CSI camera port, 4-pole stereo audio and composite video port
  • Multimedia: H.265 (4Kp60 decode), H.264 (1080p60 decode, 1080p30 encode), OpenGL ES, 3.0 graphics

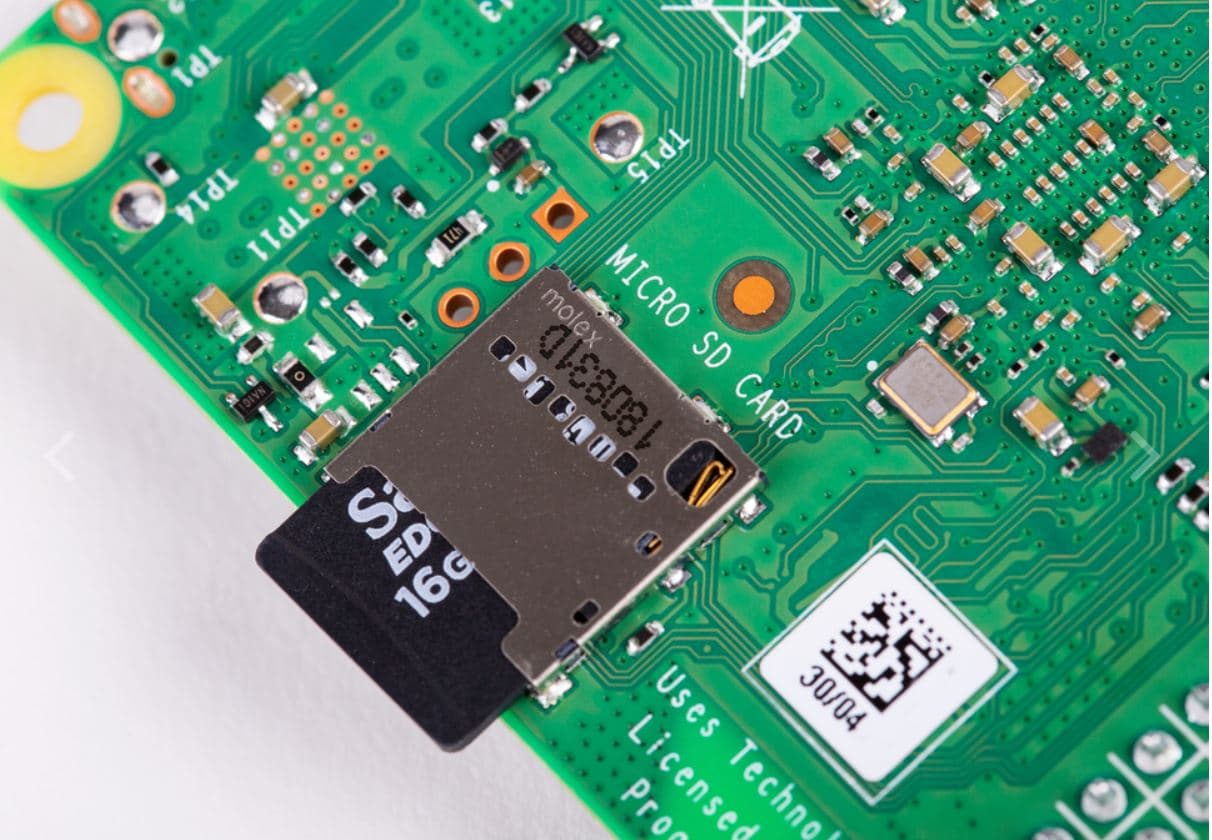

  • SD card support: Micro SD card slot for loading operating system and data storage

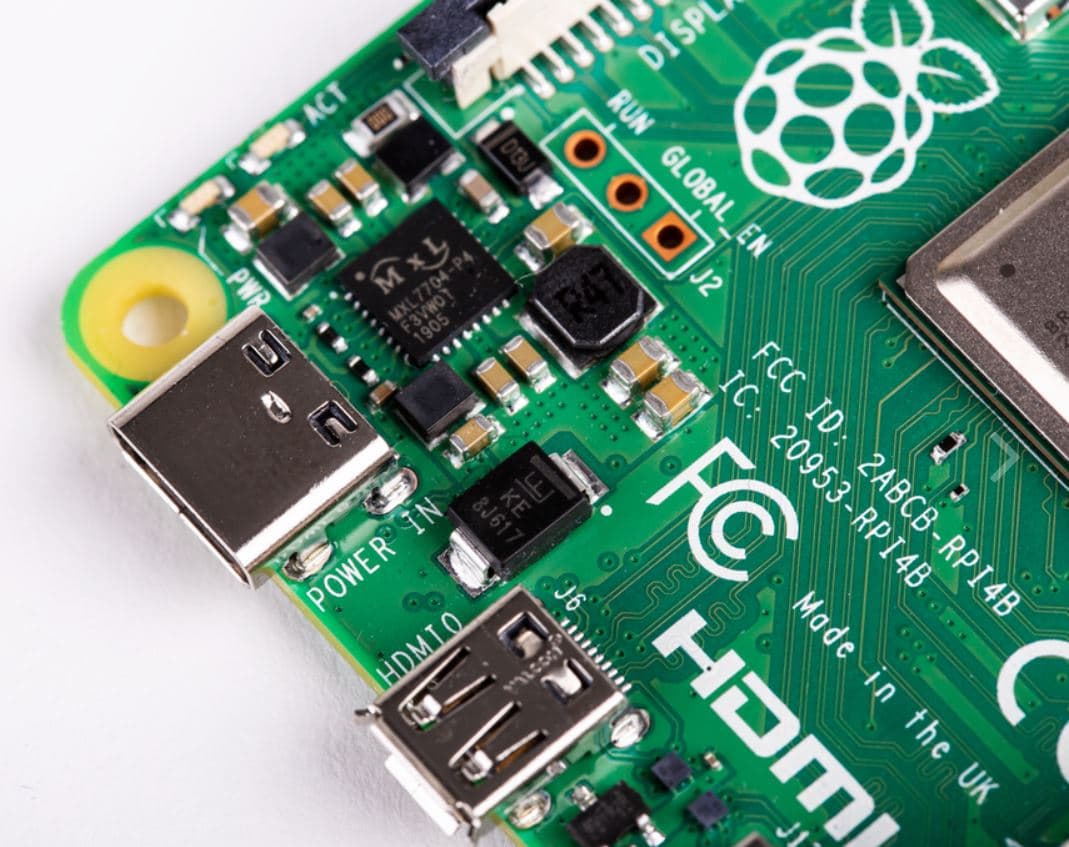

  • Input power: 5 Vdc via USB-C connector (minimum 3A), 5 Vdc via GPIO header (minimum 3A), Power over Ethernet (PoE)–enabled (requires separate PoE HAT)
  • Environment: Operating temperature 0–50 ºC
  • Production lifetime: The Raspberry Pi 4 Model B will remain in production until at least January 2026

Additional accessories

They are not included, but may be purchased in the following links:

Dimensions


Official Website

Schematic

Documentation
