Product Overview

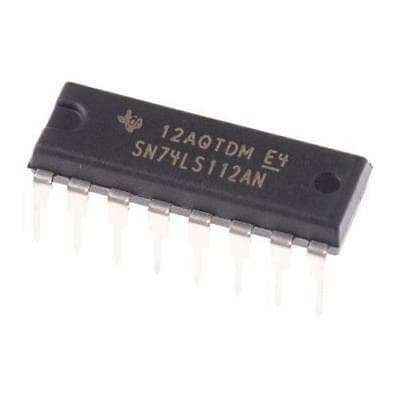

These devices contain two independent JK negative-edge-triggered flip-flops in a DIP-14 through hole package.
Electrical Characteristics
- Supply voltage (VCC): 5 V
- High Level Input Voltage (VIH): 2 V
- High Level Input Current (IIH): 20 uA
- Low Level Input Voltage (VIL): 0.8 V
- Low Level Input Current (IIL): -0.4 mA
- High Level Output Voltage (VOH): 3.4 V
- High Level Output Current (IOH): -0.4 mA
- Low Level Output Voltage (VOL): 0.25 V
- Low Level Output Current (IOL): 8 mA
- Operating free-air temperature: 70°C (max)
- Clock frequency (FC): 30 MHz (max)
Pinout
Truth table
