Product Overview

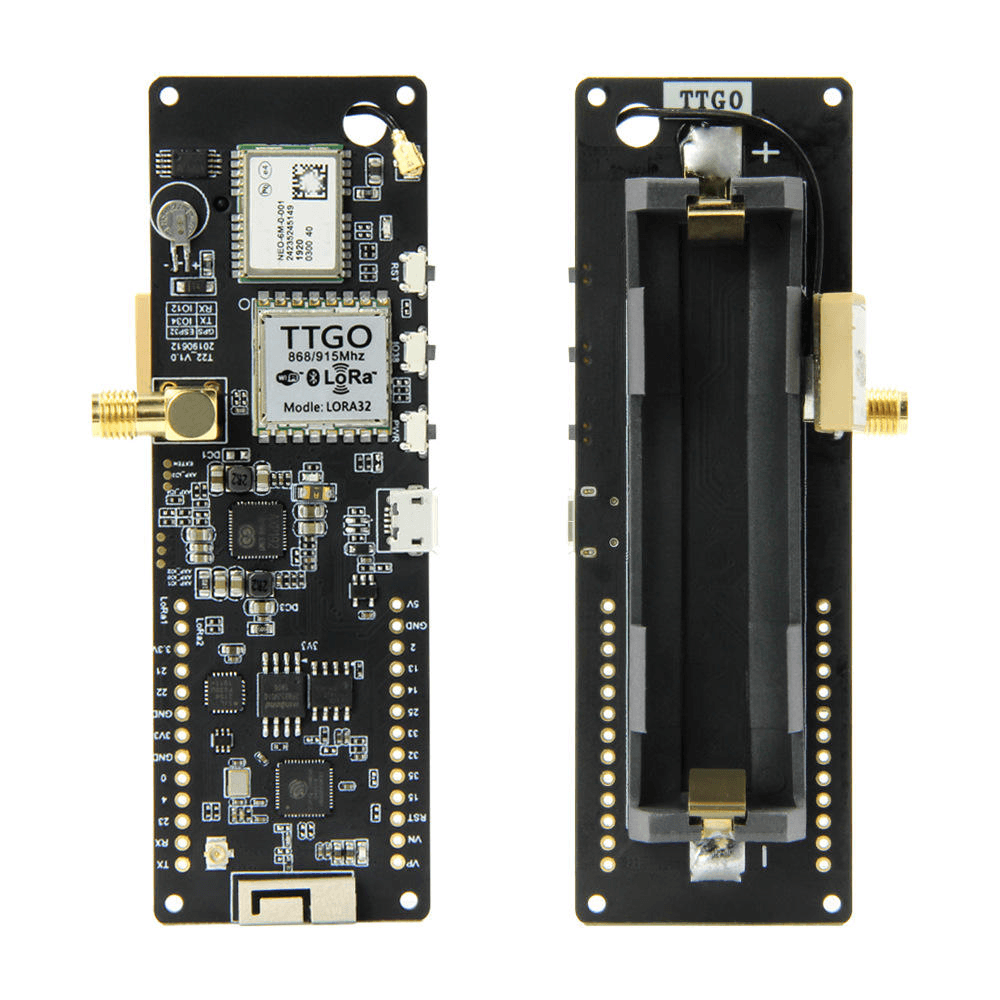

The T-Beam is an ESP32 board with LoRa (915MHz), GPS, Wi-Fi, Bluetooth and 18650 battery backup! The perfect way to create a simple tracker or LoRa sensor.
Features
- ESP32 Dual Core chip with 4MB SPI flash, Wi-Fi and Bluetooth LE with onboard antennas
- LoRa radio 915MHz with antenna
- NEO-6M GPS module with antenna
- 18650 battery backup circuit and holder (battery not included)
- Micro-USB connector for programming
Arduino IDE
The T-Beam is included in the Arduino IDE with the addition of the official ESP32 addon.
Example code
https://github.com/LilyGO/TTGO-T-Beam
