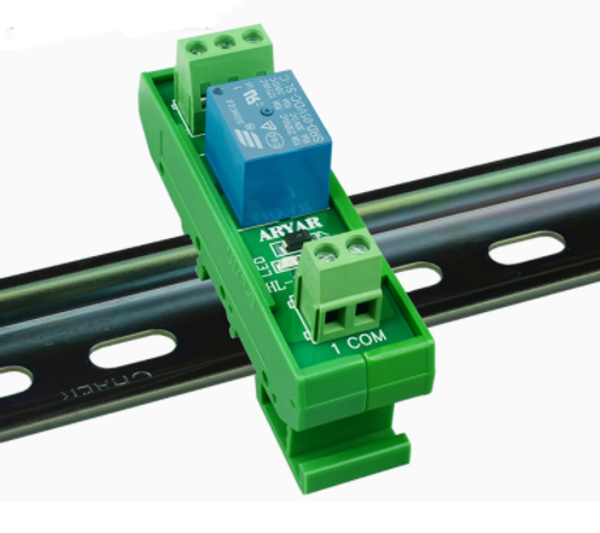

Product Overview
The 1-channel relay module with DIN rail mounting is designed for industrial automation applications and load control. It features a relay activated by a 5 V DC signal, capable of switching up to 10 A at 250 V AC or 10 A at 30 V DC. The module includes both a normally open (NO) and a normally closed (NC) contact, allowing for versatile configuration. Additionally, it has an LED status indicator, making visual monitoring of its operation easier.
Specifications:
- Model: SRD-05VDC-SL-C
- Contacts: NC, COM, NO
- Coil Input Voltage: 5V DC
- Maximum Contact Rating:
- AC: 250V @ 10A
- DC: 30V @ 10A
