Product Overview

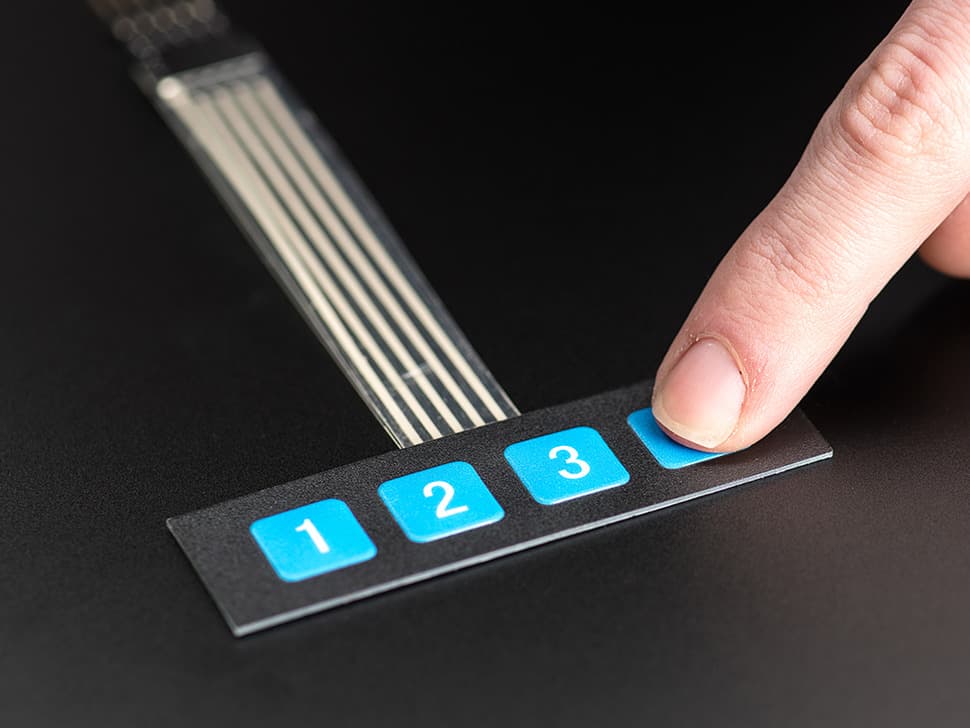

This 4 button membrane keypad is an inexpensive option for panel mounting. The membrane is soft and has a removable paper backing with a strong adhesive so you can stick this on a panel and feed the cable through a slot.
Note that the pinout is not in order

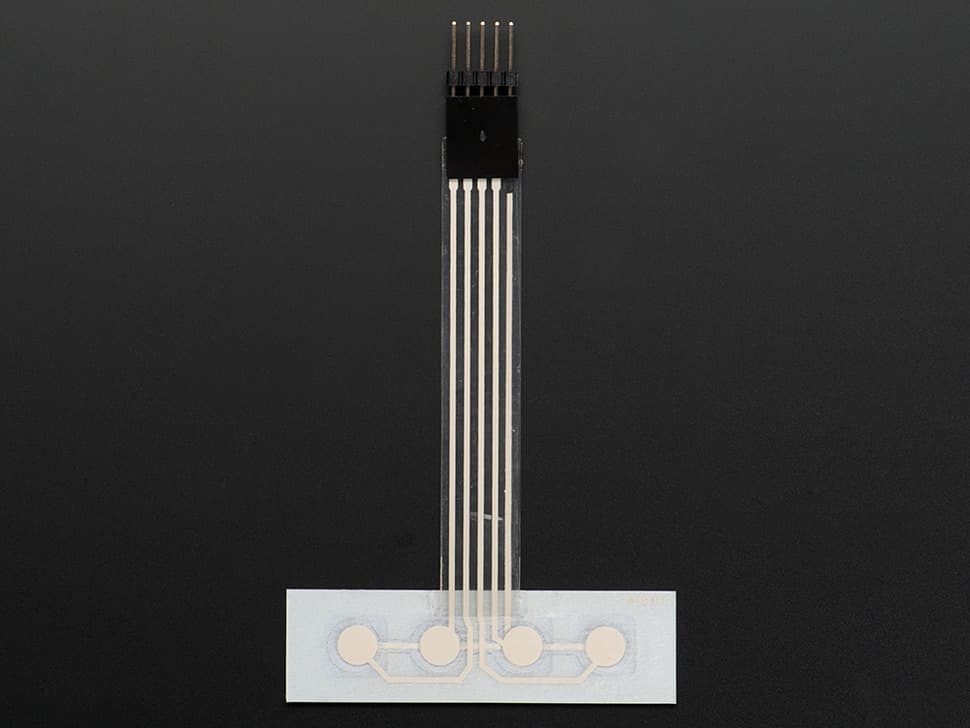

PINOUT (pin numbers can be read on the front of the connector)
- 1 - COMMON
- 2 - Button 2
- 3 - Button 1
- 4 - Button 4
- 5 - Button 3
