Product Description

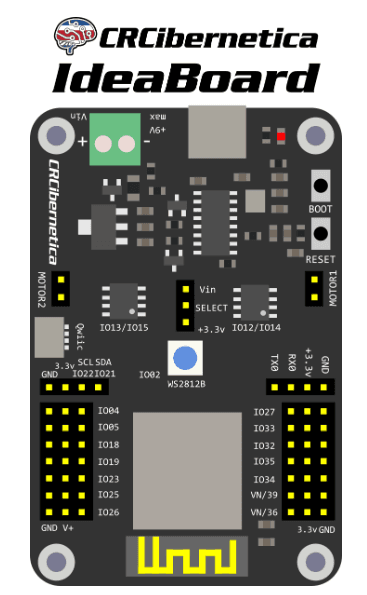

 The IdeaBoard is an educational Internet Of Things and Robotics development board created by CRCibernetica.com in Costa Rica.

The CRCibernetica IdeaBoard Experimental Kit includes several key components to help you initiate your journey into coding!

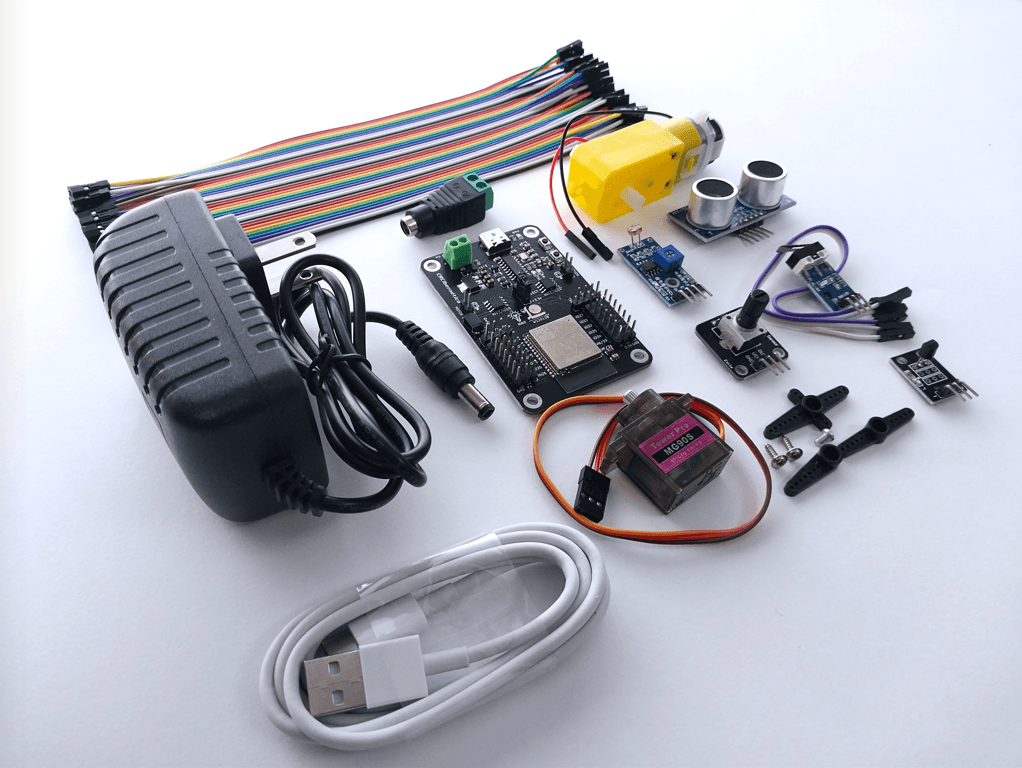

Included in the kit:

  • 1 x CRCibernetica IdeaBoard
  • 1 x USB-C cable
  • DC Barrel Jack Adapter
  • 5VDC Power Supply (Barrel Jack)
  • MG90S Microservo with metal gears
  • HC-SR05 Ultrasonic Distance Sensor
  • 1 pack of 40 Female to Female Jumpers for easy connections
  • Light Sensor Module
  • DS18C20 Temperature Sensor
  • Microswitch end stop module with cable
  • 1 Rotary Potentiometer (20k ohms)
  • 1 x DG01D Gearmotor with female connectors

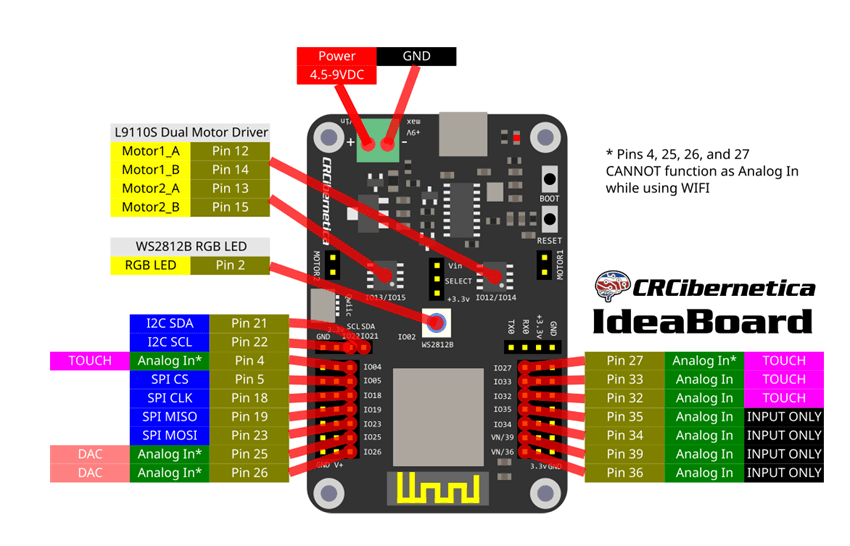

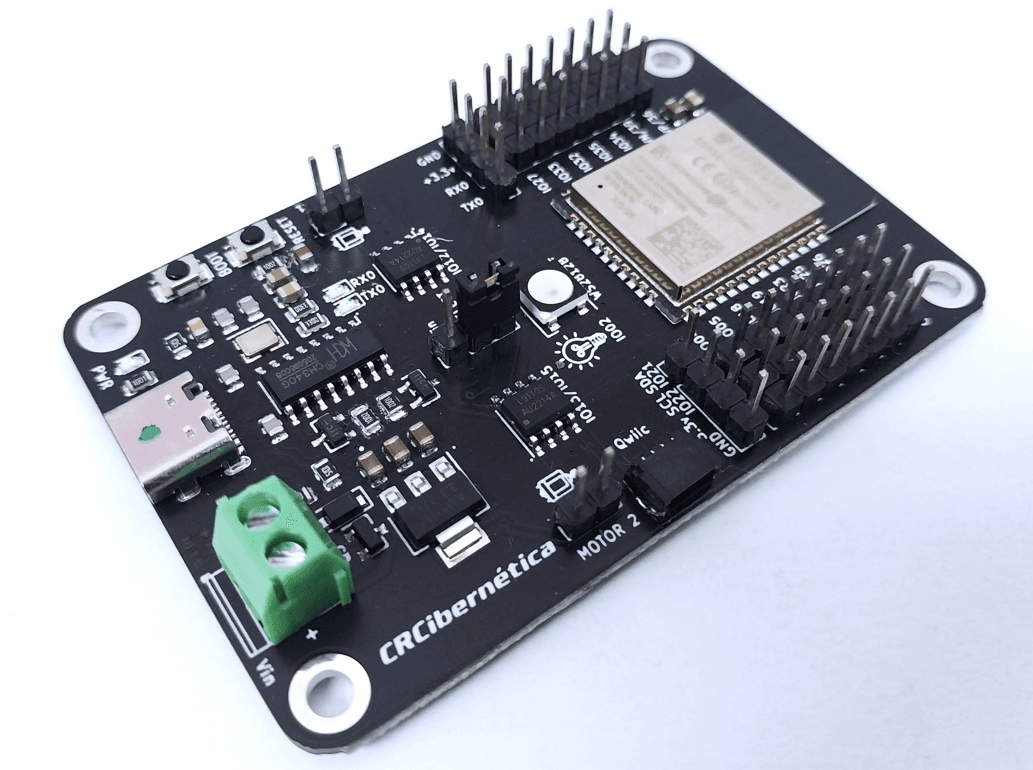

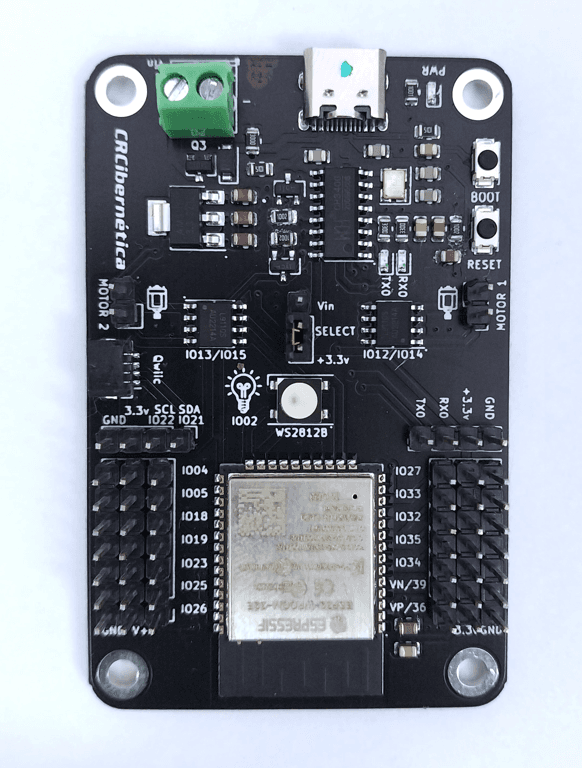

The IdeaBoard is based on the ESP32 microcontroller and features the following characteristics:

  • ESP32-WROOM-32E microcontroller

    • 32bits @ 160MHz
    • 3.3V logic
    • 520KB SRAM
    • 16MB FLASH
    • WIFI 802.11b/g/n
    • Bluetooth V4.2 BR/EDR y Bluetooth LE
  • Dual H-Bridges for motor control (800mA for each motor)

  • Multi-color programmable RGB LED (WS2812B)

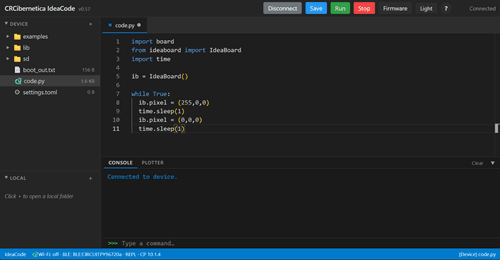

  • Programmable using Micropython or the Arduino IDE (C/C++)

  • USB-C interface for programming and debugging (CH340G serial converter)

  • Standard .1" headers for convenient interfacing with GND and Vcc for each pin

  • STEMMA/QWIIC 4-pin interface for easy connections to Adafruit and Sparkfun i2c modules

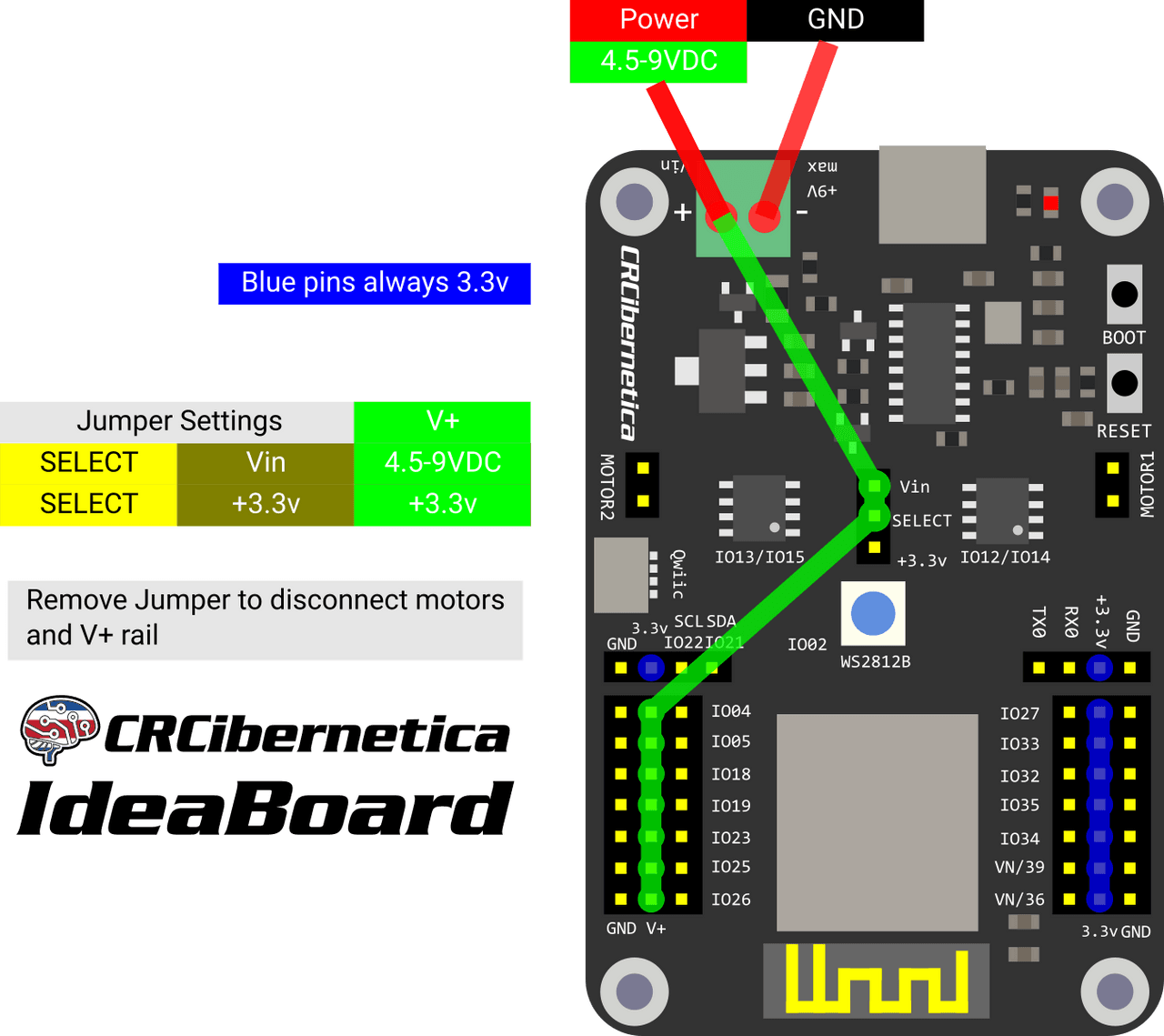

  • Direct DC power for battery or power supply (5VDC - 9VDC)

  • 7 pins for servos or other applications that require direct power

  • 14 General Purpose I/O pins in total (7 direct power -- 7 with 3.3v logic)

Documentation

GitHub Wiki

DRIVERS for the CH340 USB to Serial chip:
