CRCibernetica IdeaBoard

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Current Stock:

Product Description

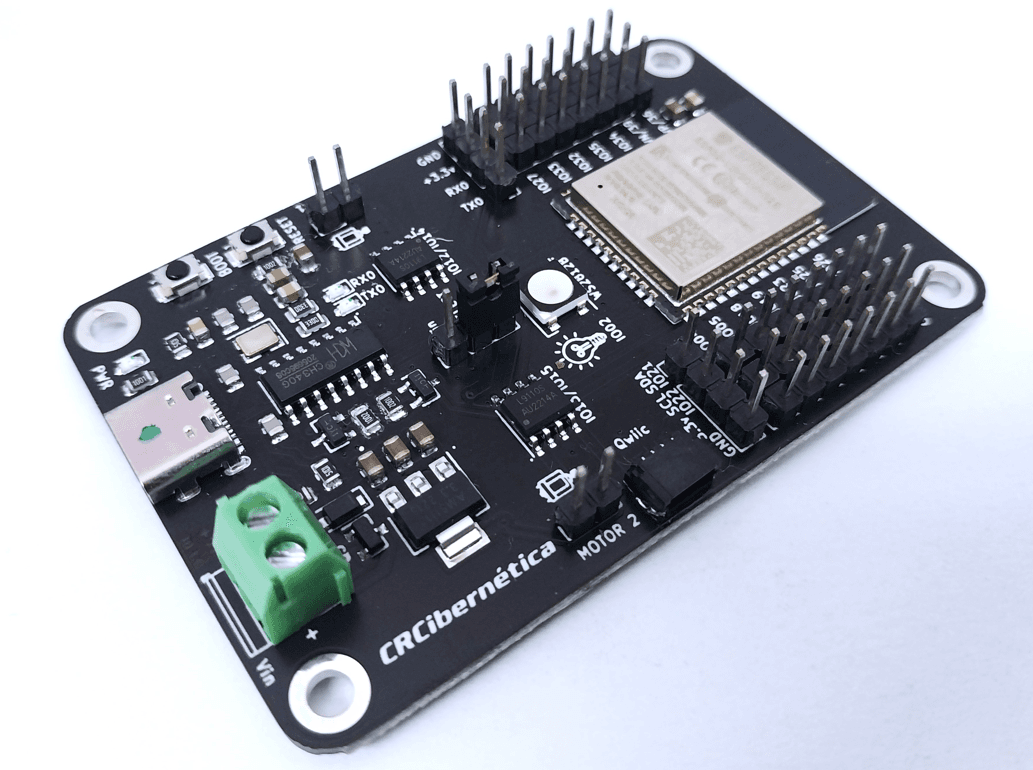

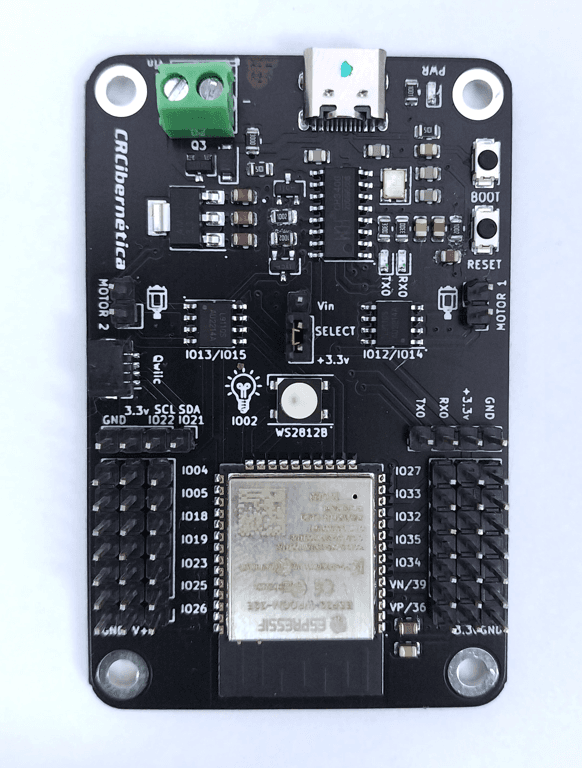

 The IdeaBoard is an educational Internet Of Things and Robotics development board created by CRCibernetica.com in Costa Rica.


The IdeaBoard is based on the ESP32 microcontroller and features the following characteristics:

  • ESP32-WROOM-32E microcontroller

    • 32bits @ 240MHz
    • 3.3V logic
    • 520KB SRAM
    • 8MB FLASH
    • WIFI 802.11b/g/n
    • Bluetooth V4.2 BR/EDR y Bluetooth LE
  • Dual H-Bridges for motor control (800mA for each motor)

  • Multi-color programmable RGB LED (WS2812B)

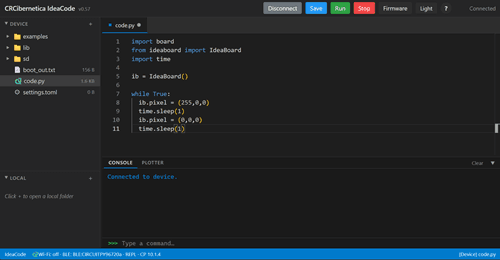

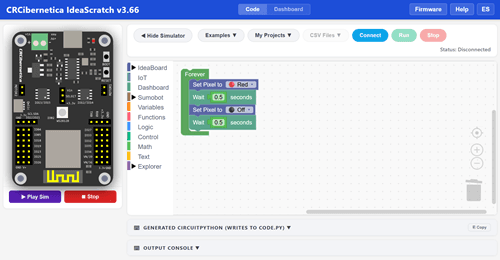

  • Programmable using CircuitPython/Micropython or the Arduino IDE (C/C++)

  • USB-C interface for programming and debugging (CH340G serial converter)

  • Standard .1" headers for convenient interfacing with GND and Vcc for each pin

  • STEMMA/QWIIC 4-pin interface for easy connections to Adafruit and Sparkfun i2c modules

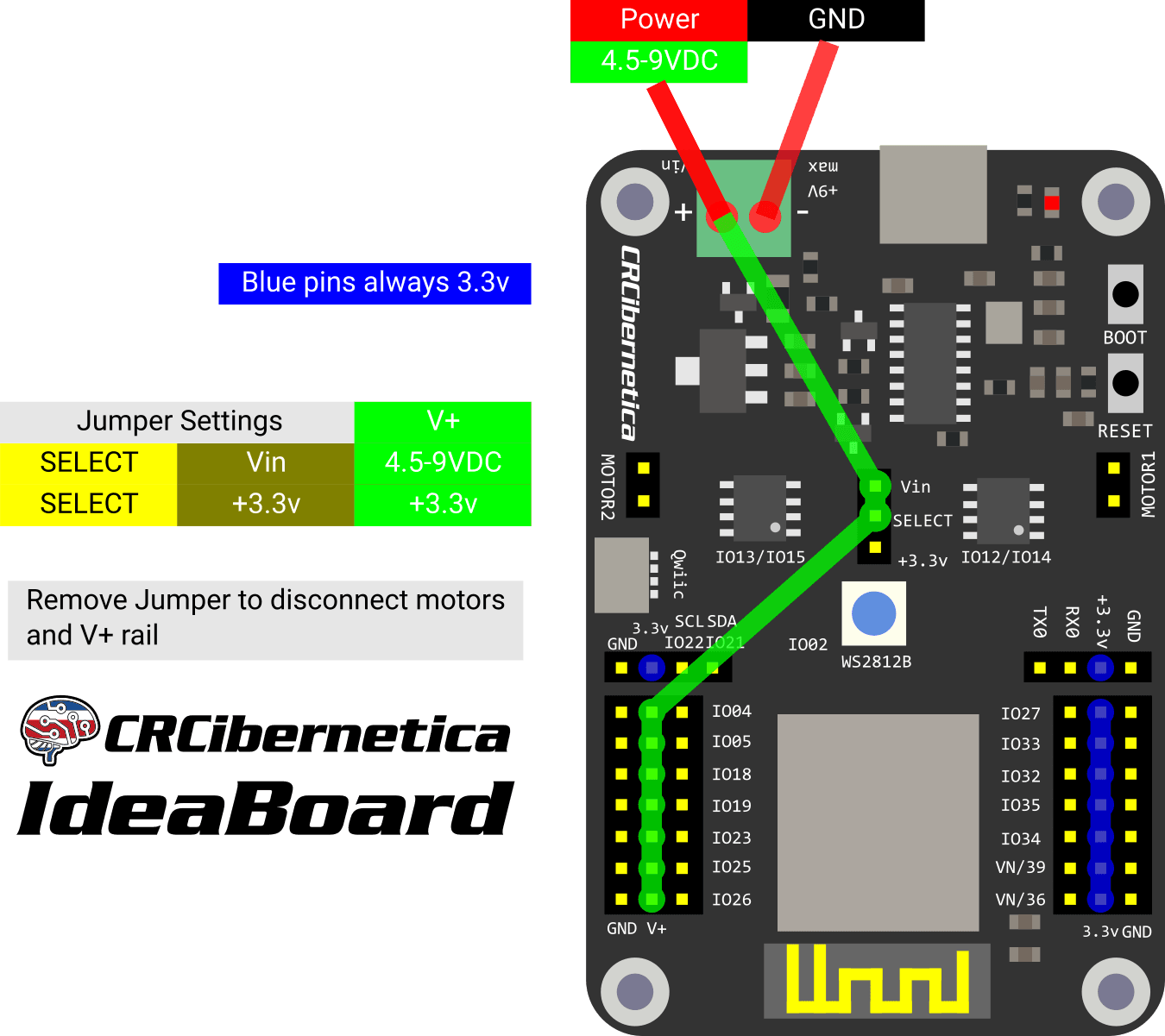

  • Direct DC power for battery or power supply (5VDC - 9VDC)

  • 7 pins for servos or other applications that require direct power

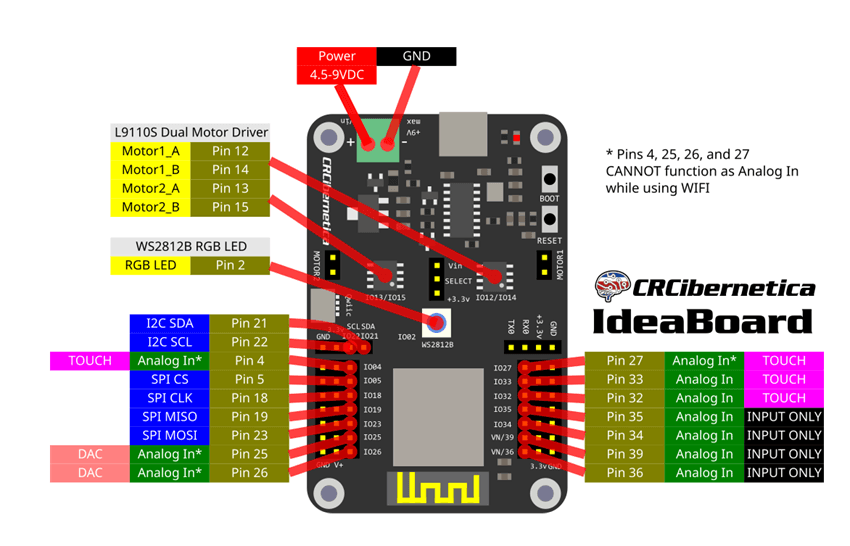

  • 14 General Purpose I/O pins in total (7 direct power -- 7 with 3.3v logic)


GitHub Wiki
