Prusa SL1S SPEED 3D printer + CW1S BUNDLE (Catalogue Only)

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
Send email to consultas@crcibernetica.com for more information
SKU:
PRT-CBSL1S


Product Description

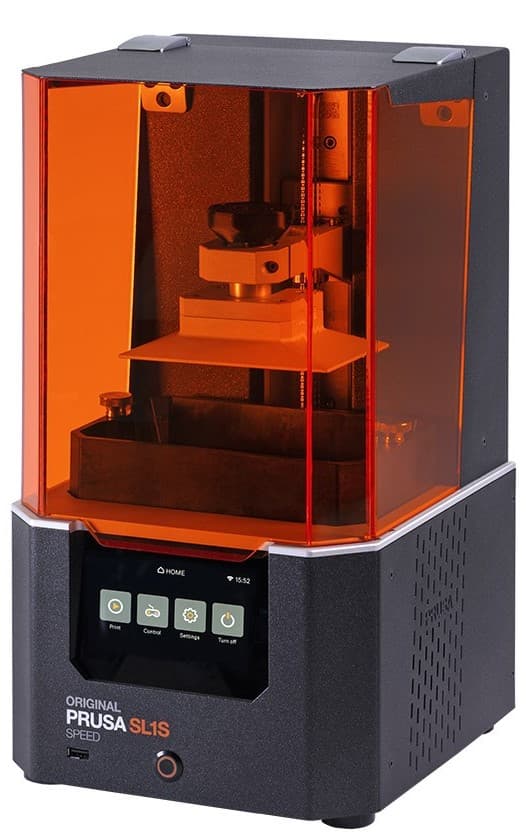

Special bundle of the Original Prusa SL1S 3D printer and the Curing and Washing Machine (CW1S). The Original Prusa SL1S SPEED is here! Compared to the original SL1, the new SL1S offers vastly improved print quality, a 25% larger print area, and up to three times faster printing with only 1.4 second exposure time per layer. Short exposure times combined with the built-in tilt mechanism enable you to print up to a 150mm tall object in three hours.

The SL1S is the perfect choice for producing extremely detailed 3D prints - fast! No matter whether you want to produce highly detailed sculpts, design and prototype, or you need a reliable workhorse for your workshop or lab, the SL1S delivers outstanding results across the board.


logo
The Prusa SL1S is the updated version of their excellent SL1 resin printer - and it's an even better package. But can it still compete in the 2021 landscape?
– The Prusa SL1S redefines SPEED!
logoThe SL1S is CRAZY fast, printing these Haunted Mansion inspired Neil Patrick Harris busts in just 2.5 hours. They were designed by Nick Dimelow (Bugman_140) and made as a gift for Neil.
– HOW FAST is the Prusa SL1S 3D Printer?

logo

The Prusa SL1S is the fastest MSLA resin 3D Printer I've ever tested, but is it worth the hefty price tag? I still think the S should stand for sensual though.


– The Super Speedy, Sensual SL1S - Resin 3D Printer Review



3D Printer Features

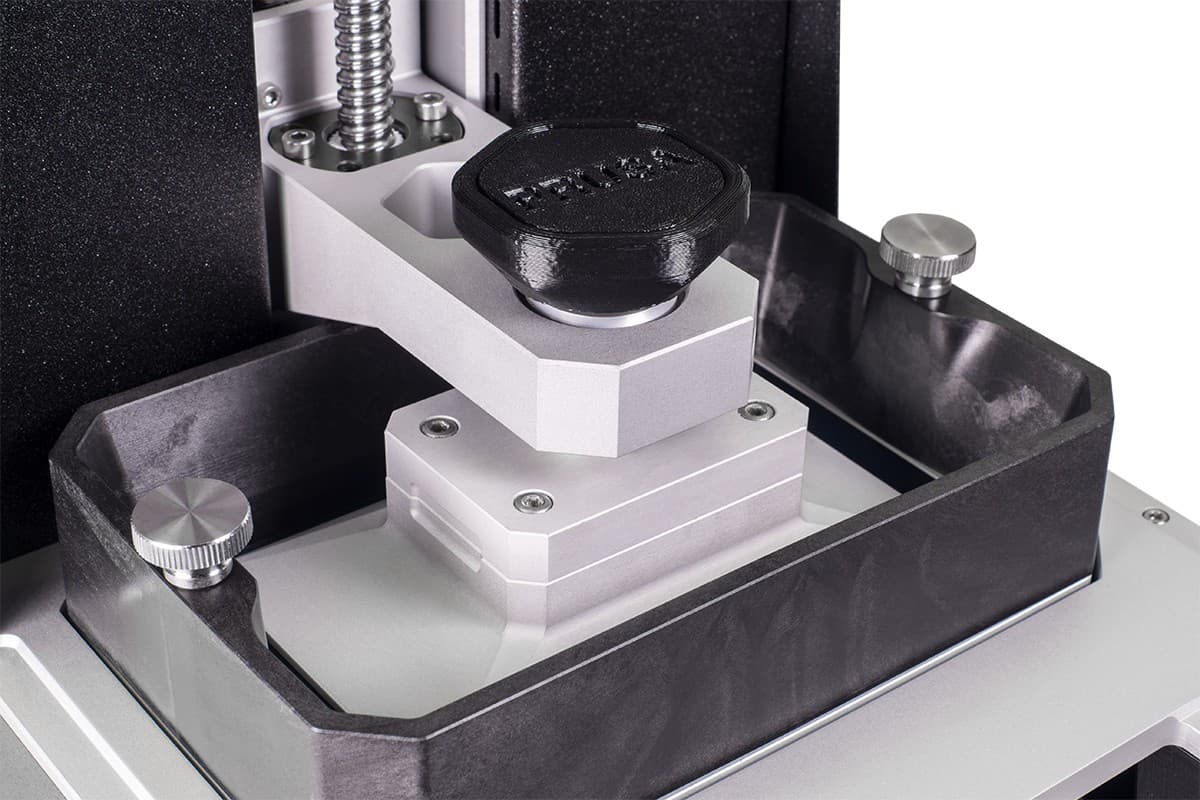

  • Quick-release platform - maintains calibration. No need to recalibrate the printer when the platform with the print is removed.
  • Assisted Wizard for quick and easy setup and calibration
  • Motorized tilting bed - prevents layer shifts, stirs the resin, enables faster printing, improves reliability
  • Resin tank with non-proprietary FEP films - easy and cheap replacement, low running costs
  • Silent operation with Trinamic drivers (auto-homing function)
  • Advanced LCD cooling system improves performance and extends the life of internal components
  • Rear fan with a carbon filter to minimize odors around the printer
  • Safety features: resin level sensor, safety vat under the tilt mechanism to protect the internal parts against minor resin spills
  • Fully-featured network interface: control your printer through your web browser
  • Free 0,5kg bottle of resin included

3D Technical Parameters

  • Display type Monochrome LCD with high-performance lens system
  • LCD resolution 5.96'', 2560×1620p
  • LCD lifespan / warranty 2000 hours
  • Print volume size 127×80×150 mm
  • Layer exposure time 1.3 - 2.4 seconds depending on material and layer height
  • Tilt time 3 seconds
  • Supported layer heights 0.025-0.1 mm
  • Minimal layer height 0.01 mm
  • Supported materials UV sensitive liquid resin (405nm), long-exposure materials supported
  • Connectivity: USB, Wi-Fi, LAN
  • SL1S printer box dimensions: 32×45×50 cm (X×Y×Z)
  • SL1S dimensions: 8.8×9.3×15.7 in / 225x237x400 mm (X×Y×Z)
  • SL1S energy consumption while printing: ~100W (±5W)

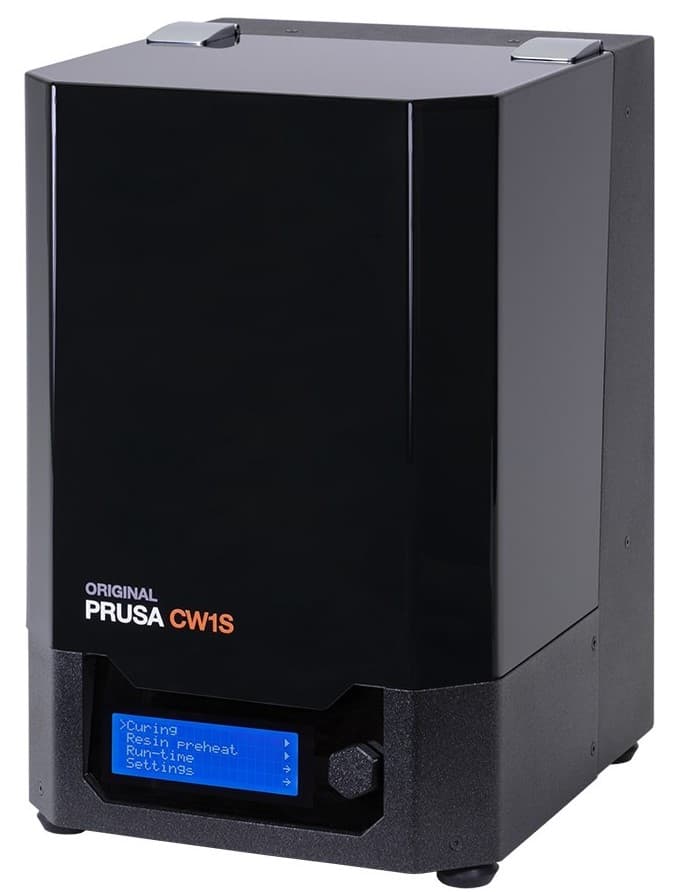

Curing Machine Feature

  • Resin preheat
  • Washing using magnet driven propeller to create a vortex and wash resin residue from the print
  • Dries the print after washing is done
  • Cures the print using 4 UV LED strips

Curing Machine Technical Specifications

  • 4 UV LED strips to cure the printed models
  • UV LED wavelength: 405 nm
  • Max power of the UV LED: 52,8 W
  • EEE group: 3 (IT and/or telecommunication equipment)
  • Power supply: Input 100-240VAC, 50/60Hz, 2.0A. Output: 24V, 6.67A, 160W
  • Average power consumption: 130W
  • Max. working temperature range: 16 °C - 38 °C, indoor use only
  • Working humidity: 85 % or less
  • CW1S box dimensions: 39×46×40 cm (D×H×W)
  • CW1S dimensions: 21.8×34.5×23.2 cm (D×H×W)
  • CW1S energy consumption:
    • Preheating / Drying: ≤ 135W
    • UV curing: 50W
    • Washing: 6W
