SN74LS04N NOT Gates

  • Image 1
Price:
$1.25
SKU:
COM-74LS04
Current Stock:
109
Quantity:


Product Description

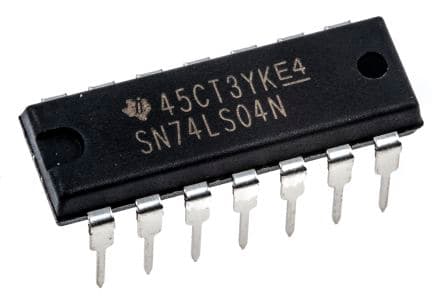

These devices contain six independent inverters gates in a DIP-14 through hole package.

Electrical Characteristics

  • Supply voltage (VCC): 5 V
  • High Level Input Voltage (VIH): 2 V
  • High Level Input Current (IIH): 40 uA
  • Low Level Input Voltage (VIL): 0.8 V
  • Low Level Input Current (IIL): -1.6 mA
  • High Level Output Voltage (VOH): 3.4 V
  • High Level Output Current (IOH): -0.4 mA
  • Low Level Output Voltage (VOL): 0.2 V
  • Low Level Output Current (IOL): 16 mA
  • Operating free-air temperature (TA): 70°C max

Pinout


Truth table


Datasheet
