SN74LS32N OR Gates

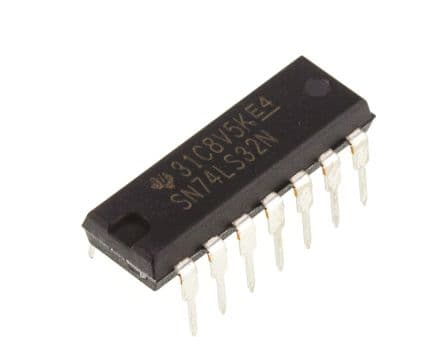

  • Image 1
Price:
$1.25
SKU:
COM-74LS32
Current Stock:
105
Quantity:


Product Description

These devices contain four independent 2-input positive-OR gates in a DIP-14 through hole package.

Electrical Characteristics

  • Supply voltage (VCC): 5 V
  • High Level Input Voltage (VIH): 2 V
  • High Level Input Current (IIH): 40 uA
  • Low Level Input Voltage (VIL): 0.8 V
  • Low Level Input Current (IIL): -1.6 mA
  • High Level Output Voltage (VOH): 3.4 V
  • High Level Output Current (IOH): -0.8 mA
  • Low Level Output Voltage (VOL): 0.2 V
  • Low Level Output Current (IOL): 1.6 mA

Pinout


Truth table


 Datasheet
