Product Overview

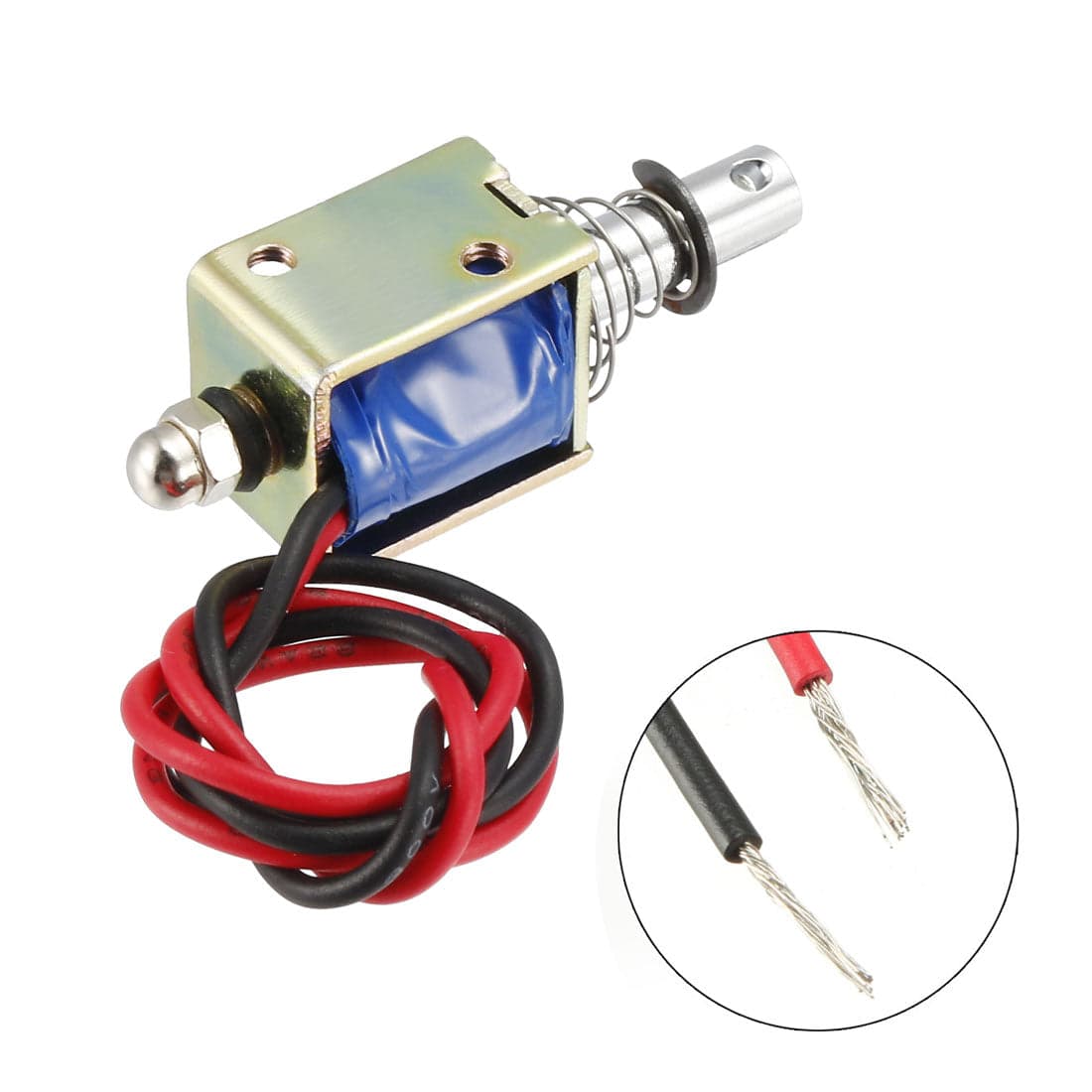

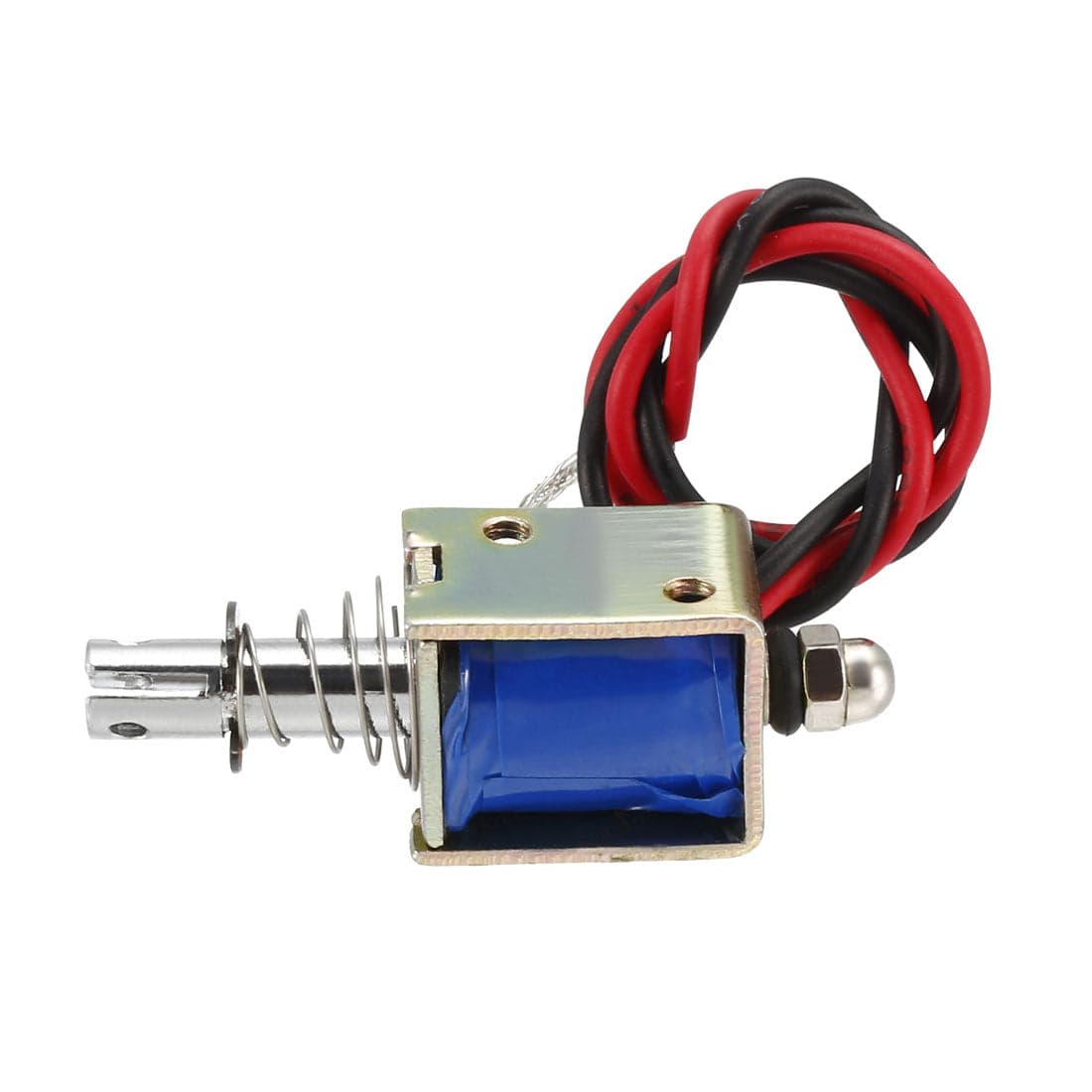

Solenoids are a great way to induce linear motion for pushing, pulling or controlling switches and levers.This smaller solenoid is designed to work with 6V.
Specifications:
- Model: JF-0520B
- Force: 4N
- Travel: 7mm
- Rated Voltage: 6V DC
- Current: 300mA
- Power: 1.8W
- Cable Length: 190mm
- Mounting Hole Dia.: M3

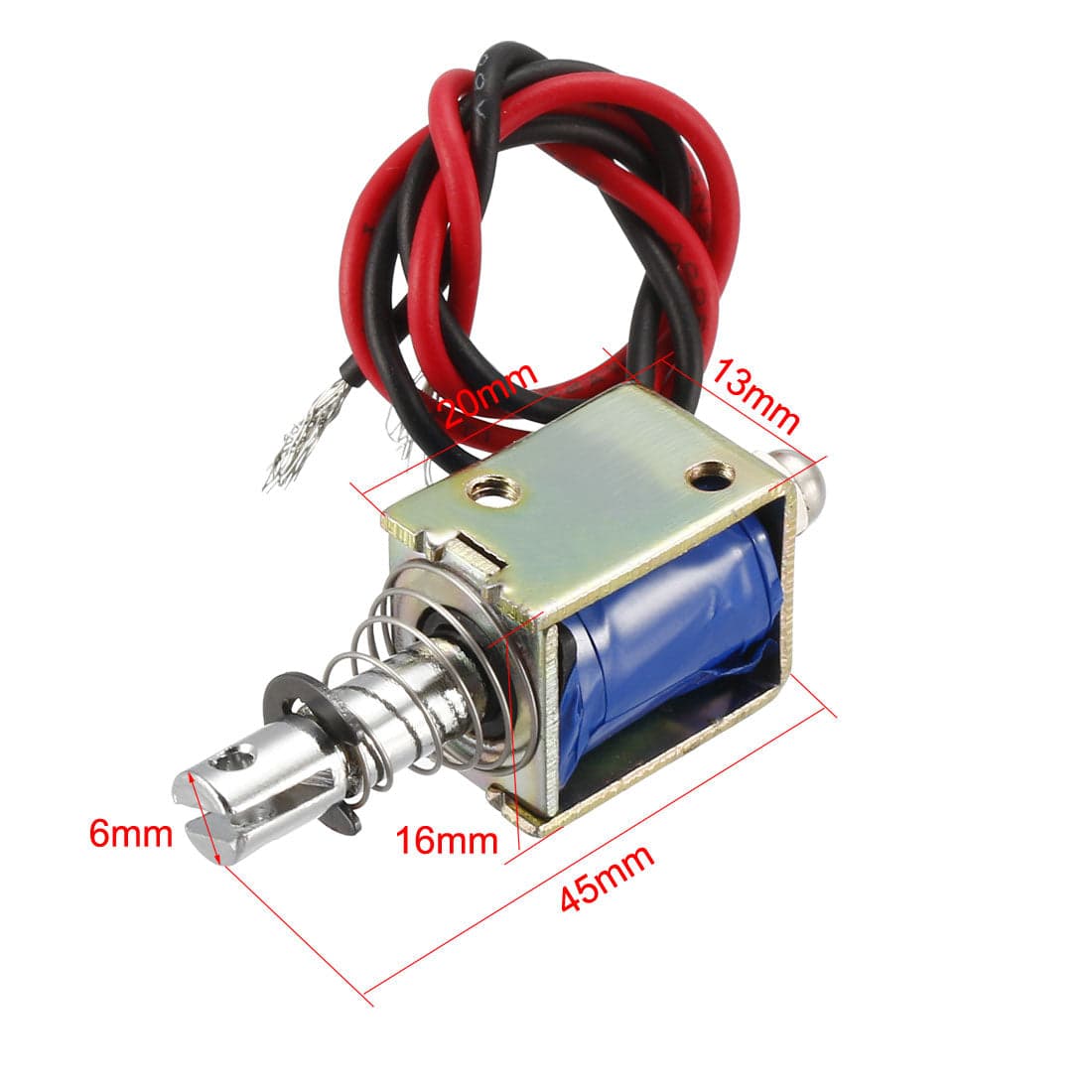

- Total Length: 45mm
- Push Bar Dia: 6mm
- Size: 20 x 13 x 16mm(L*W*H)
