74HC86 XOR Gates

  • Image 1
Price:
$1.25
SKU:
COM-CB74HC86
Current Stock:
300
Quantity:


Product Description

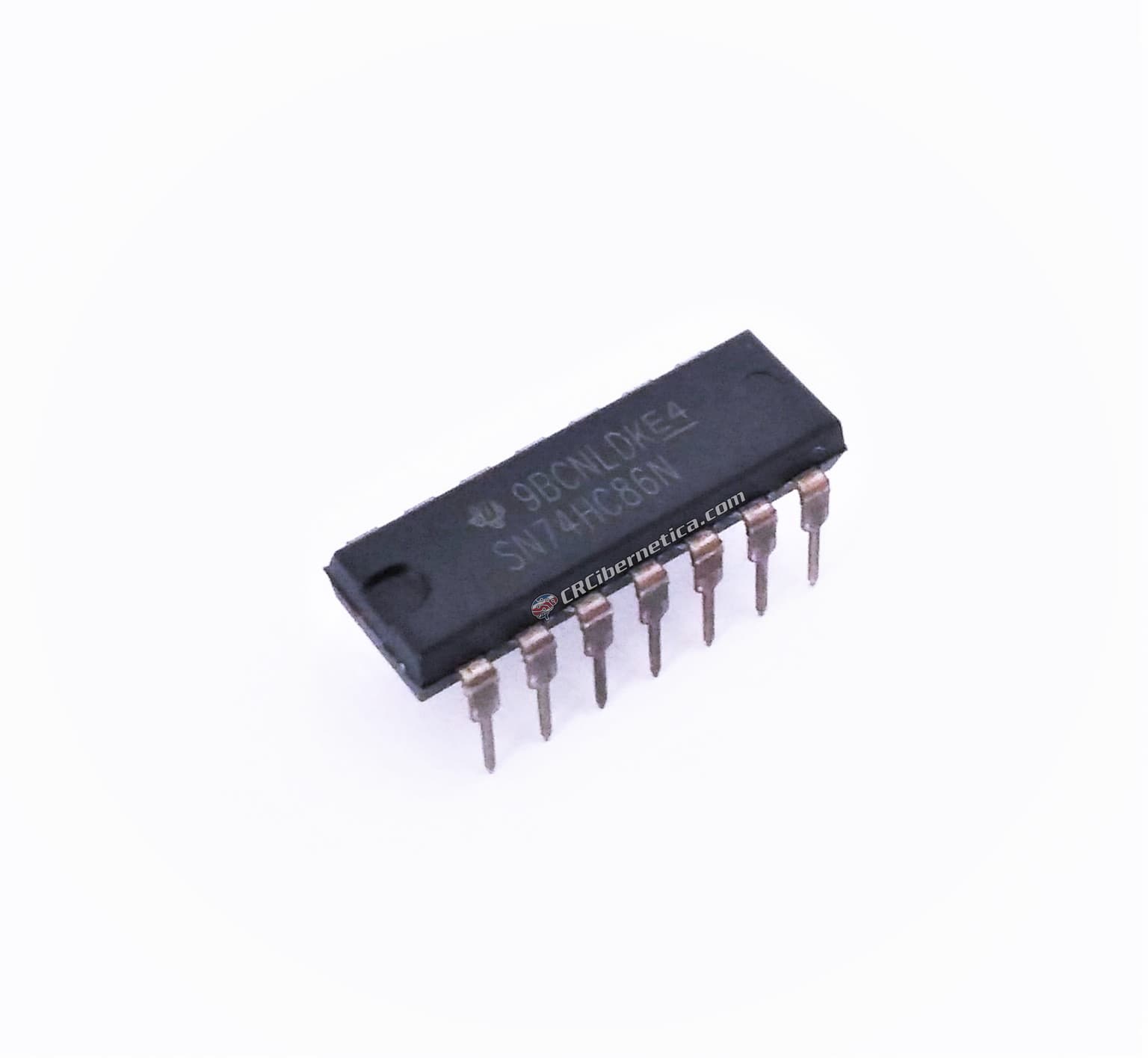

These devices contain four independent 2-input XOR gates in a DIP-14 through hole package.

Electrical Characteristics

  • Supply voltage (VCC): 5 V
  • High Level Input Voltage (VIH): 3.15 V
  • Low Level Input Voltage (VIL): 1.35 V
  • High Level Output Voltage (VOH): 3.84 V
  • High Level Output Current (IOH): -4 mA
  • Low Level Output Voltage (VOL): 0.33 V
  • Low Level Output Current (IOL): 4 mA
  • Operating free-air temperature: 85°C (max)

Pinout


Truth table


 Datasheet
