ELEGOO Mars 4 Ultra 9K Bundle

Image 1
  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
  • Image 8
  • Image 9
Price:
Send email to consultas@crcibernetica.com for more information
SKU:
PRT-CBELM4U9K

Product Description

Imagine unleashing your creativity without limits and bringing your most intricate designs to life with the ELEGOO Mars 4 Ultra 9K stereolithography (SLA) printer. With millimeter precision and astonishing print quality, the ELEGOO Mars 4 Ultra 9K allows you to turn your ideas into three-dimensional objects in a way no other printing method can match. Its ability to produce detailed and durable parts with unparalleled surface smoothness will elevate your projects to the next level. Plus, when you invest in the ELEGOO Mars 4 Ultra 9K Bundle, you'll receive not only the printer but also a washing and curing station, along with resin. Whether you're a modeling enthusiast, a professional designer, or an engineer looking to prototype with excellence, the ELEGOO Mars 4 Ultra 9K provides an unparalleled tool to achieve stunning results. Dare to experience the 3D printing revolution with the ELEGOO Mars 4 Ultra 9K and discover a world of unmatched possibilities. Make your dreams tangible today!



Mars 4 Ultra 9K

  • Technical Specifications

    • Product model: MARS 4 Ultra 9K
    • LCD: 7-inch 9K Mono LCD
    • System: EL3D-4.0
    • Slicer Software: VoxelTango(included in the USB stick), ChituBox
    • Technology: MSLA 3D Stereo lithography
    • Layer Thickness: 0.01-0.2mm
    • Printing Speed: up to 150mm/h with ACF release liner film and ELEGOO rapid standard resin
    • Z Axis Accuracy: 0.02mm
    • XY Resolution: 0.018mm(8520*4320)
    • Build Volume: 153.36mm(L)*77.76mm(W)*165mm(H)
    • Light Source: UV Integrated Light (wavelength 405nm)
    • Languages: Chinese English Japanese Dutch Korean French German Russian Italian Spanish Turkish Portuguese
    • Connectivity: USB, wifi
    • Weight: 15.43lbs(7kg)
    • Operation: 3.5 Inch Touch Screen
    • Power Requirements: 100-240V 50/60Hz 24V 3A
    • Printer Dimensions: 22.7cm(L)*22.7cm(W)*44.35cm(H)




Main Features:

  • 7-Inch 9K Mono LCD: Equipped with a 7-inch 9K mono LCD offering an impressive 8520x4320 resolution and 18µm XY resolution, Mars 4 Ultra allows you to print incredible complex models with crisp details. The mono LCD is protected by a 9H hardness tempered glass, ensuring it withstands daily wear and tear while maintaining optimal performance.
  • Powerful Linux OS: With built-in 4G RAM and no more delay loading files, the Linux operating system ensures faster & smooth operation and efficient resource management.

  • High-Speed Wifi Transfer: Effortlessly transfer files via the built-in WiFi connectivity, supporting both 2.4G and 5G networks with a transfer speed of 6-10Mbps, eliminating the need for cumbersome cables.

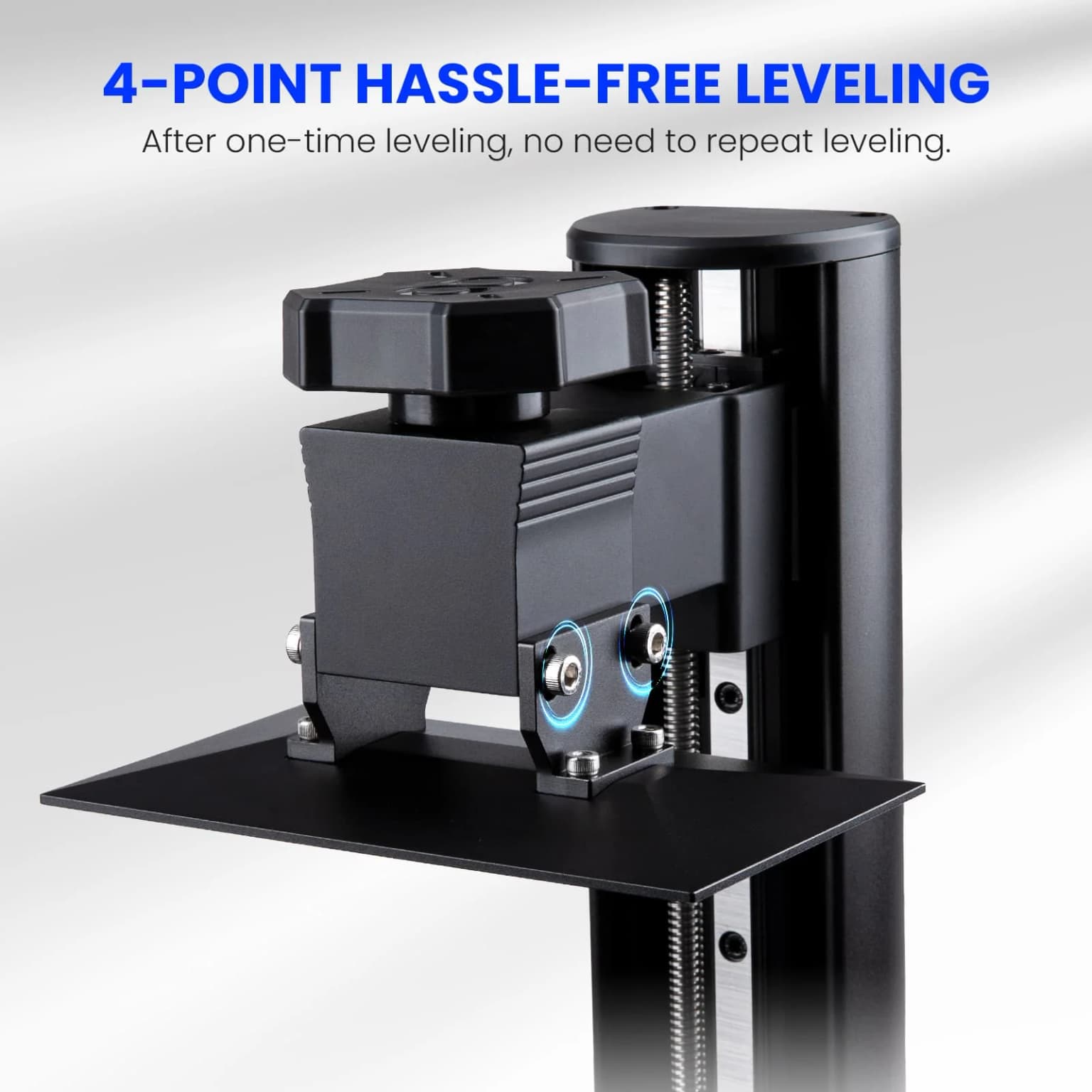

  • Effortless Leveling: The 4-point hassle-free leveling system makes setup a breeze, and after one leveling, no need to repeat leveling,  ensuring perfect prints every time. The laser-carved surface on the build plate offers improved adhesion, reducing the risk of print failures. Brand new ACF release liner film with less release tension for a high printing success rate even at a faster printing speed.
  • User-Friendly Touch Screen: Navigate easily with the 4-inch HD IPS touch screen with a resolution of 800*480 pixels and support for 12 languages, making operation a breeze for users of all skill levels.
  • Purified Printing Environment: The plug-in air purifier with an upgraded activated carbon filter that effectively filters out resin odor during printing. This feature enhances the overall printing experience and provides a healthier environment for you.


9K Accuracy with Stunning Detail

The ELEGOO Mars 4 Ultra offers exceptional printing quality and details. It features a 7-inch 9K Mono LCD with 8520*4320 resolution that captures every tiny detail, allowing you to produce highly detailed models with an incredible 18 microns XY precision.
Mars 4 Ultra's fast printing capabilities are equally impressive, allowing you to achieve a print speed of up to 150mm/H with ACF release liner film and the upcoming ELEGOO FAST standard resin. This 3x faster printing speed enables you to produce high-quality models with incredible speed and efficiency.


COB Light Source + Fresnel Collimating Lens

Experience vertical and uniform exposure of 405nm wavelength beam thanks to the COB light source and Fresnel collimating lens, which provides consistent curing across the entire build area with less than a 5-degree light angle and 92% light uniformity. This ensures that your models have a smooth and even surface finish.

Stable Printing Performance

  • The Z-axis adopts a linear guide rail structure with an accuracy of 0.02mm, ensuring precise and stable movement to help eliminate riffles on final prints and produce smooth and delicate surfaces on your models.
  • The 4-point leveling system with four clockwise-tightening screws is design to eliminate the need for repeated leveling after one-time leveling, saving you time and effort.
  • The build plate has a laser-carved surface to enhance adhesion during the printing process, even when printing large models.

Thoughtful Details

  • Mars 4 Ultra comes with an all-metal machine body to enhance the printer's stability and durability, making it capable of withstanding the rigors of frequent use. The printer's sleek and modern design also adds a touch of aesthetics to your workspace.
  • The printer's mid-plate is designed with a raised step to keep the resin from flowing inside the printer, which protects the printer's internal components from damage and ensures a clean workspace.
  • The build platform screws have screw end caps for easier cleaning, which saves your time and effort during post-processing and maintenance.
  • The adjustable foot pads for improved stability ensure that the printer remains stable on uneven surfaces.

 Mercury XS Bundle

  • 360° all-round exposure: The post-curing station adopts 2 L-shape light bars (each built-in 14 UV LED lights) and adds 4 UV LED beads beneath the turntable. Work with 360°auto-rotating turntable and a handheld UV lamp that cures the nooks and crannies and interior of 3D prints, so that the entire model is cured thoroughly without dead ends.
  • Dual function of washing and curing:  ELEGOO Mercury XS contains 1 washing station and 1 post-curing station, with the dual function of cleaning and curing to remove uncured resin of 3D printed models and optimized your print quality, making your post-processing simple and efficient.
  • Large washing volume: With an 7000ml large capacity sealed water tank, you can directly wash large models printed by ELEGOO Saturn and Mars 3, or clean parts in batches, which offers substantial time savings and improves your productivity.
  • Easy and intuitive operation: With a single knob, just press and hold to turn on the machine, then rotate the knob to set an appropriate time for washing or curing, and your models will be ready in a short time. The UV cover can block 99.9% of ultraviolet rays and protect your eyesight during post-curing.
  • Wide Compatibility: Directly compatible with ELEGOO Saturn or Mars 3 3D printers and the most similar build volume LCD/DLP/SLA 3D resin printers on the market, making your 3D resin print post-processing simple, professional, and efficient.



XS WASH Machine Technical Specifications

  • Control Method: Knob + Button
  • Rated Power:  12W
  • Input Voltage: 110V/240V 50/60Hz
  • Time Setting: 0-30mins
  • Machine Size: 255mm*155mm*385.5mm
  • Maximum Wash Volume:
  •  (with platform)180mm*121mm*153mm
  •  (without platform)201mm*124mm*255mm

XS CURE Machine Technical Specifications

  • Control Method: Knob + Button
  • Rated Power: 36W
  • Input Voltage: 110V/240V 50/60Hz
  • Time Setting: 0-30mins
  • Machine Size: 246mm*230mm*363.5mm
  • Maximum Curing Size: 200mm*260mm



A Real Thorough Curing

2 adjustable L-shaped light bars and increased 4 LED lights under the 360° rotating turntable paired with Fresnel lens to emit UV light with a uniform wavelength of 405nm, ensuring that the model is evenly exposed from all angles. Additionally, there is a handheld UV lamp to cure the interior or nooks and crannies of 3D printed parts for smoother surface and incredible print quality, also ideal for curing assembled models.

Powerful Rinse

The 7.5 liter water container is designed with rubber sealing tape and powerful turbine blade to effectively removal excess resin on the surface of models and prevent liquid splashing and volatilization. 2 cleaning methods: basket washing, remove the model and put it into the basket for cleaning; suspension washing, directly hang the printing platform on the cleaning rack for cleaning.

UV Protection Cover

The transparent cover of the curing machine can block up to 99.9% of ultraviolet rays to improve resin solidification rate and protect your eyesight during curing process. A safety option automatically switches off the UV lights when you remove the cover.

Package include:

  • Mars 4 Ultra 3D Printer
  • Wifi Antenna
  • USB Air purifier
  • Build Platform
  • Resin Tank
  • USB stick
  • Mask
  • Gloves
  • Funnel
  • Backup Screws
  • User Manuals
  • Adapter for Mars 4
  • Tool kit
  • Plastic Scraper
  • Metal Scraper
  • Base for cleaning Container
  • Base for Curing Container
  • 2x Curing Light
  • Handheld UV Lamp
  • Anti-UV Lid
  • Cleaning Container
  • UV Protective glasses
  • Washing Basket
  • Dual AC Adapter

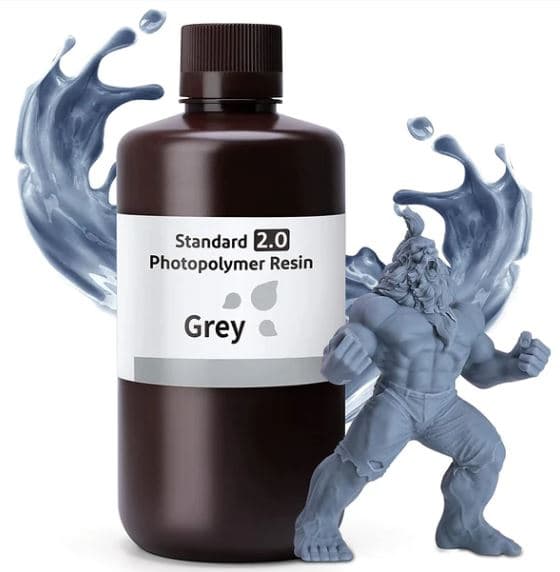

  • 1 Gray 8K Standard Resin 1kg
